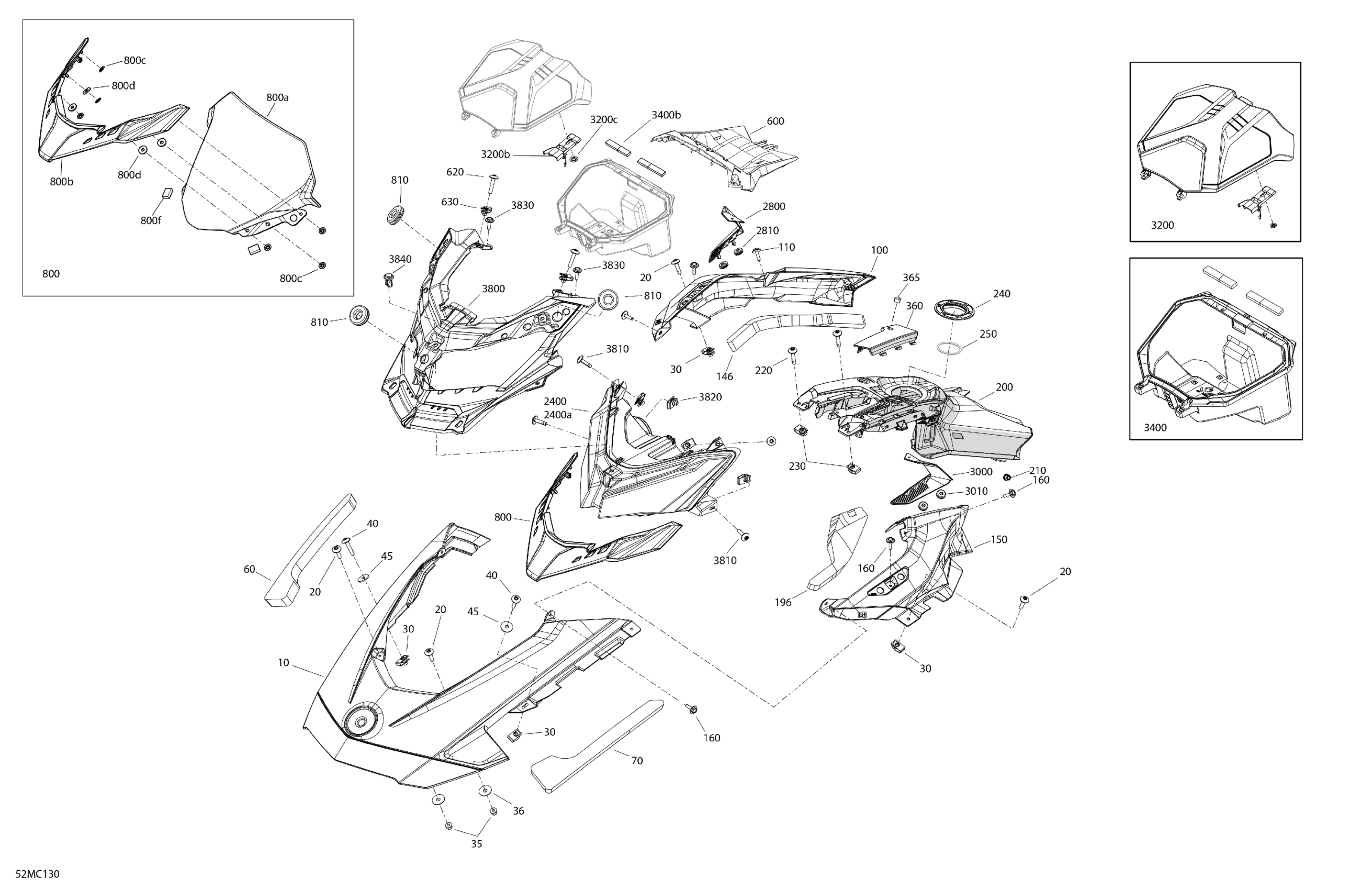

Ski-Doo RENEGADE 600R E-TEC - X - 2023 Body - Hood Diagram

#

Description
Price

10

Deep Black, Front Hood

517307291

$214.99

10

Neo Yellow, Front Molded Hood | Model Neo Yellow

517307352

$209.99

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

35

Hex. Flange Nut M5

233151414

$0.55

36

Flat Washer

250200040

$1.90

40

Torx Screw M5 X 26

250000587

$4.44

45

Washer

250200166

$2.11

60

RH Front Hood Foam

517305763

$13.49

70

LH Front Hood Foam

517305764

$14.99

100

Deep Black, RH Hood

517307299

$209.99

100

Neo Yellow, RH Hood | Model Neo Yellow

517307353

$194.99

110

Screw M4 X 16

250000725

$3.49

146

RH Hood Foam

517306001

$13.49

150

Deep Black, LH Hood

517307300

$229.99

150

Neo Yellow, LH Rear Molded Hood | Model Neo Yellow

517307354

$194.99

160

Screw M4 X 16

250000725

$3.49

196

LH Hood Foam

517306002

$13.49

200

Rear Console

517307684

$174.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

360

LH Front Console

517306580

$31.99

365

Cap

572051500

$5.89

600

Gauge Support

517307400

$38.99

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Black, Low Windshield Kit | Includes 800 to 800f

860201448

$149.99

800a

Windshield 360

517306423

$159.49

800b

Deep Black, Windshield Support

517305749

$33.99

800c

Push Nut

732610072

$2.19

800d

Rubber Washer 5 mm

250200024

$2.19

800f

Gasket, Neoprene 2000Mm Long

219704476

$15.36

810

Grommet

517303756

$4.09

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2800

RH Deflector Black 63% Light Transm.

517305776

$35.99

2810

Grommet

517307161

$2.79

3000

Deflector LH, Black 63% Light Transm.

517305777

$35.99

3010

Grommet

517307161

$2.79

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200b

Latch

517305779

$12.99

3200c

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400b

Seal Joint

517305157

$2.39

3800

Deep Black, Headlamp Fairing

517305746

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47
