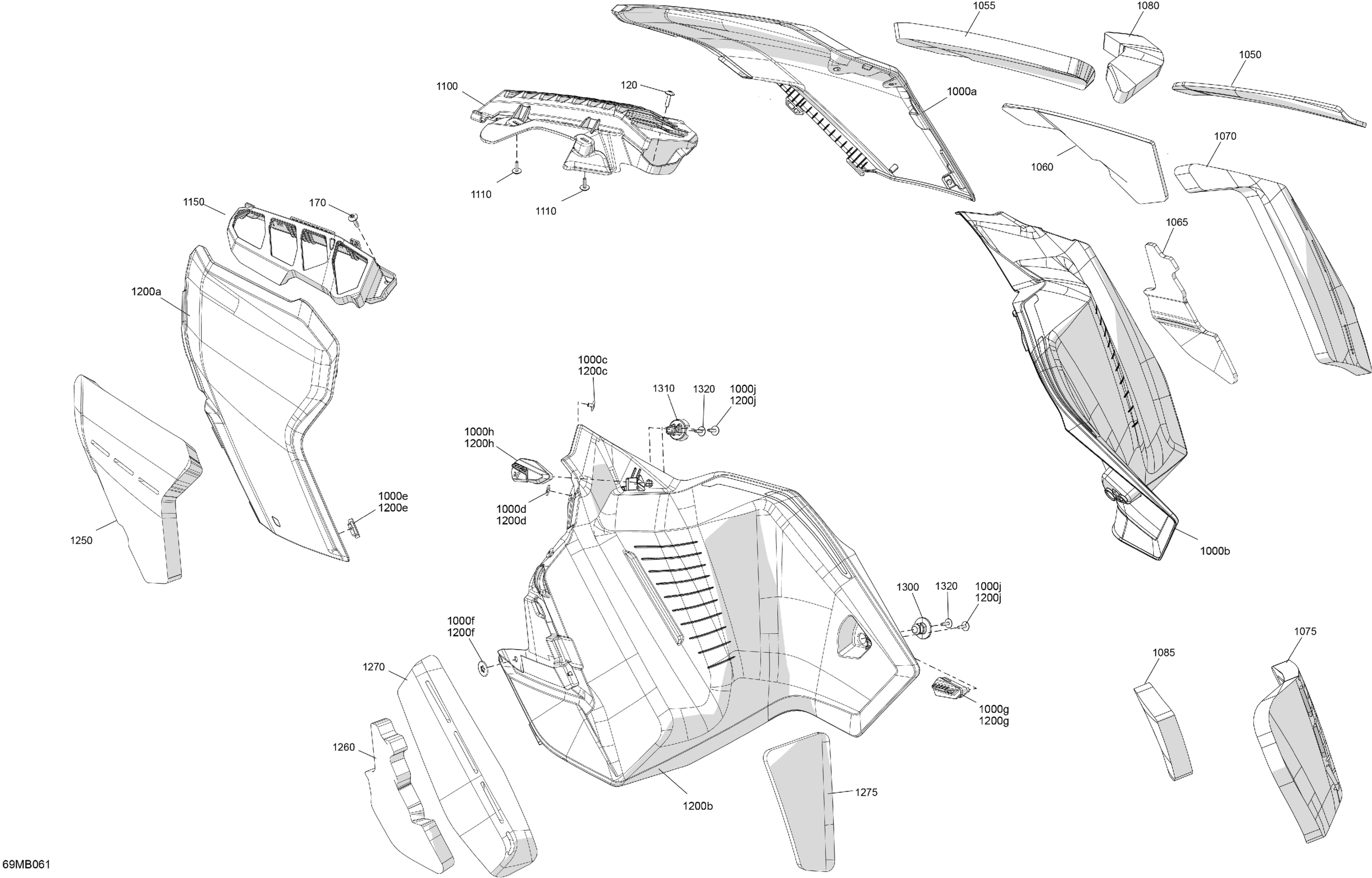

Ski-Doo RENEGADE 600R E-TEC - Enduro - 2022 Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.00

170

Torx Screw M5 X 20

250000528

$2.00

1000a

Deep Black, RH Front Panel

517307314

$167.88

1000b

RH Rear Panel

517306671

$164.90

1000c

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1000d

Washer

517124300

$0.18

1000e

Rivet Plate

517305109

$4.52

1000f

Push Nut

508000853

$1.87

1000g

RH Rear Latch

517305773

$13.79

1000h

RH Front Latch

517305979

$13.46

1000j

Screw M4 X 16

250000725

$3.30

1050

RH Front Foam

517307010

$2.06

1055

RH Front Foam

517307009

$13.22

1060

RH Front Foam

517307005

$13.22

1065

Foam

517306495

$5.09

1070

RH Rear Foam

517307006

$13.22

1075

RH Rear Foam

517307170

$13.22

1080

RH Rear Foam

517307008

$13.22

1085

RH Rear Foam

517307178

$13.22

1100

RH Hood Grille Ass'y

517308292

$73.10

1110

Screw M4 X 16

250000725

$3.30

1150

LH Hood Trim

517306690

$28.33

1200a

Deep Black, LH Front Panel

517308779

$182.81

1200b

Deep Black, LH Rear Panel

517308780

$60.42

1200c

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200d

Washer

517124300

$0.18

1200e

Rivet Plate

517305109

$4.52

1200f

Push Nut

508000853

$1.87

1200g

LH Rear Latch

517305774

$13.79

1200h

LH Front Latch

517305980

$13.79

1200j

Screw M4 X 16

250000725

$3.30

1250

Foam

517306463

$13.22

1260

Foam

517306464

$6.57

1270

Foam

517306465

$13.22

1275

LH Rear Panel Foam

517306496

$5.33

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$3.30
