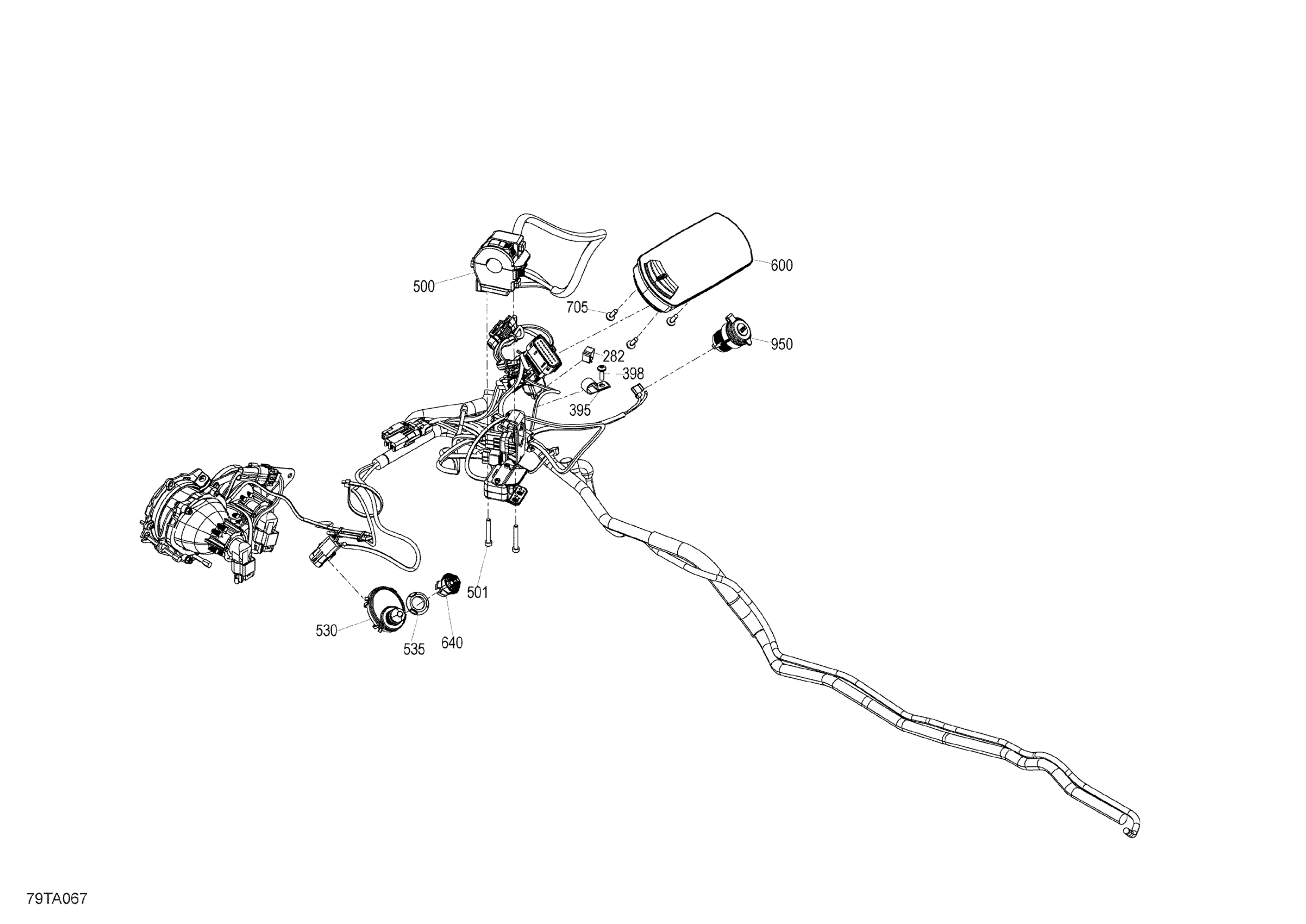

Can-Am Renegade 1000R EFI - XMR - 2021 Electric - Front System Diagram

Description

Price

282

Clip

414227300

$1.40

395

Open Clamp

518321570

$5.85

398

Torx Screw K50 X 16

250000720

$1.60

423

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

500

Switch Handle

710006134

$66.39

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

535

Safety Nut (DESS Switch)

278002963

$3.12

600

Multifunction Compact Gauge

710007407

$335.04

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

705

Torx Screw K50 X 16

250000720

$1.60

908

Stainless Steel Flat Washer

234062670

$2.00

910

Push Nut

732610072

$1.97

950

DC Outlet

710001248

$35.79
