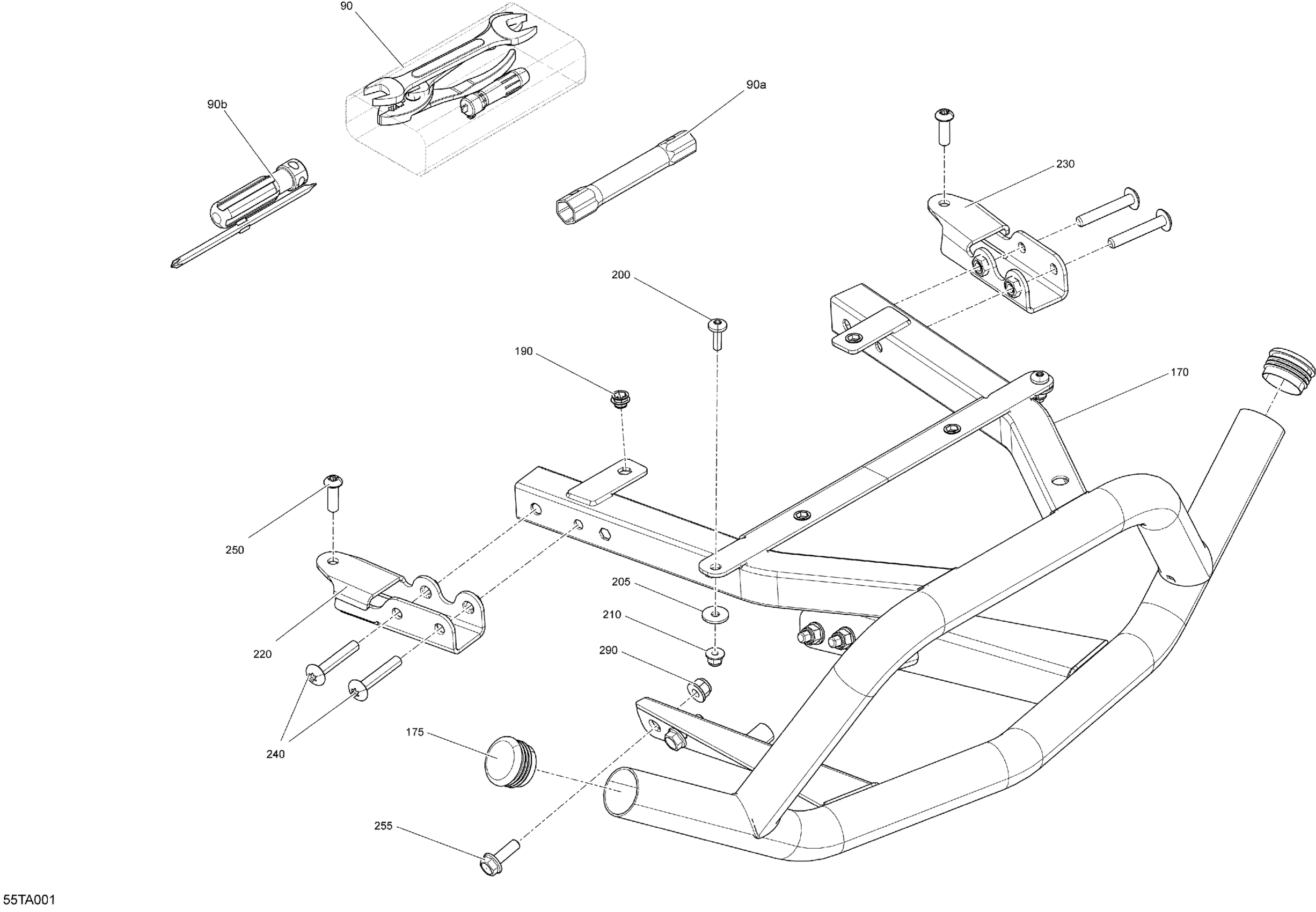

Can-Am Renegade 1000R EFI - XMR - 2021 Body - Storage Tray Diagram

Description

Price

Tool Kit

704700168

$40.99

90a

Socket Wrench 14/16MM

529000085

$6.55

90b

Screw Driver

529000021

$3.19

170

Manta Green, Rear Bumper Kit | Model Mineral Gray Satin

715006838

$369.37

175

Cap

705202455

$4.27

190

Insert Half Hex Body M6 x 1.0

250100199

$2.91

200

Torx Screw M6 X 20

250000712

$2.00

205

Flat Washer

224061201

$1.27

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

220

LH Front Bracket

705004977

$31.31

230

RH Front Bracket

705004978

$31.31

240

Torx Screw M8 X 50 S.GRIP

250000844

$6.36

250

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

255

Hex. Flange Screw M8 X 25

207682534

$1.03

290

Hex. Flange Elastic Nut M8

233281414

$1.31
