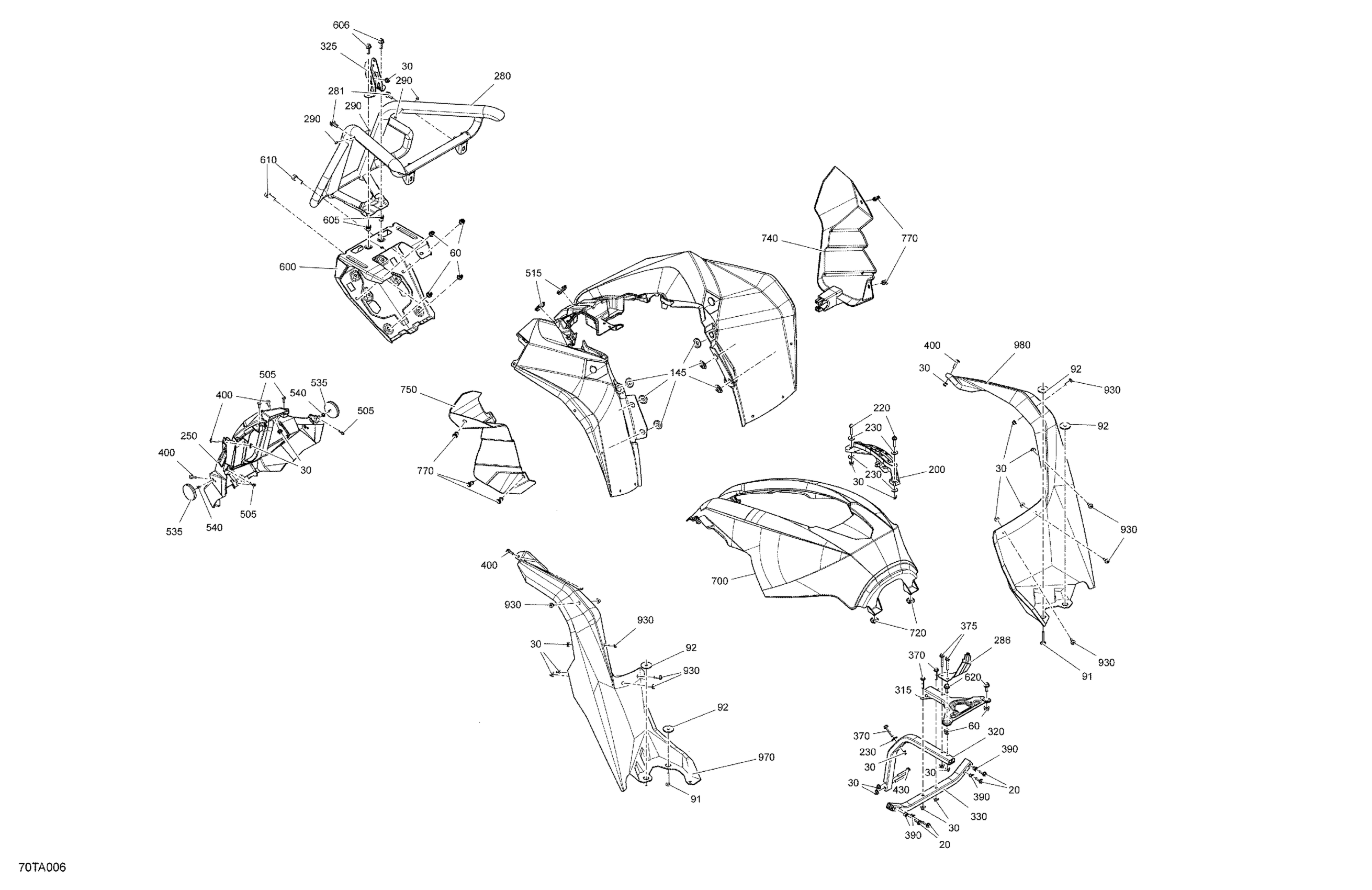

Can-Am Renegade 1000R EFI - XMR - 2021 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.96

30

Flange Elastic Nut M6

233261434

$4.15

60

Hex. Flange Elastic Nut M8

233281434

$2.00

91

Carriage Bolt M6 X 45

207764550

$5.54

92

Flat Washer M8

250200158

$2.00

145

Oval Washer

705000321

$5.33

200

Lever Indicator | 1000

705004416

$15.64

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

230

Flat Washer

224061201

$1.27

250

Front Facia

705010673

$65.64

280

Manta Green, Front Bumper

705014448

$253.70

281

Hex. Flange Screw M8 X 20

207682044

$1.06

286

Fuse Bracket

705009695

$32.06

290

Plug

293000121

$2.96

315

Bracket

705003599

$21.61

320

Front Bent Sectional Tube

705016094

$91.76

325

Support

705009706

$43.25

330

Bent Sectional Tube

705016093

$91.76

370

Hex. Flange Screw M6 X 35

207663544

$0.85

375

Hex. Flange Screw M6 X 40

207664044

$2.12

390

Insert

293450275

$11.36

400

Torx Screw M6 X 25

250000758

$2.00

430

Hex. Flange Screw M6 X 45

207664544

$1.22

505

Torx Screw K50 X 16

250000720

$1.60

515

Oblong Grommet

705003668

$5.21

535

Amber Reflector | Except Europe Model

705011222

$11.96

540

Flange Elastic Nut M5

233251434

$1.91

600

Skid Plate

705009684

$292.51

605

Insert Half Hex Body M8 x 1.25

293450307

$1.97

606

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

610

Socket Screw M10 x 30 | XT

205003044

$3.00

620

Hex. Flange Screw M8 X 20

207682044

$1.06

700

Deep Black, Central Console | Includes 700 to 700a

715007527

$344.75

720

Grommet

705003264

$3.94

740

RH Front Wheel Arch Protector

705017922

$23.85

750

LH Front Wheel Arch Protector

705017926

$23.85

770

Tuflok Plastic Rivet

293150230

$1.39

930

Torx Screw M6 X 20

250000712

$2.00

970

Mudguard

705009736

$120.87

980

RH Front Mudguard

705009737

$120.87
