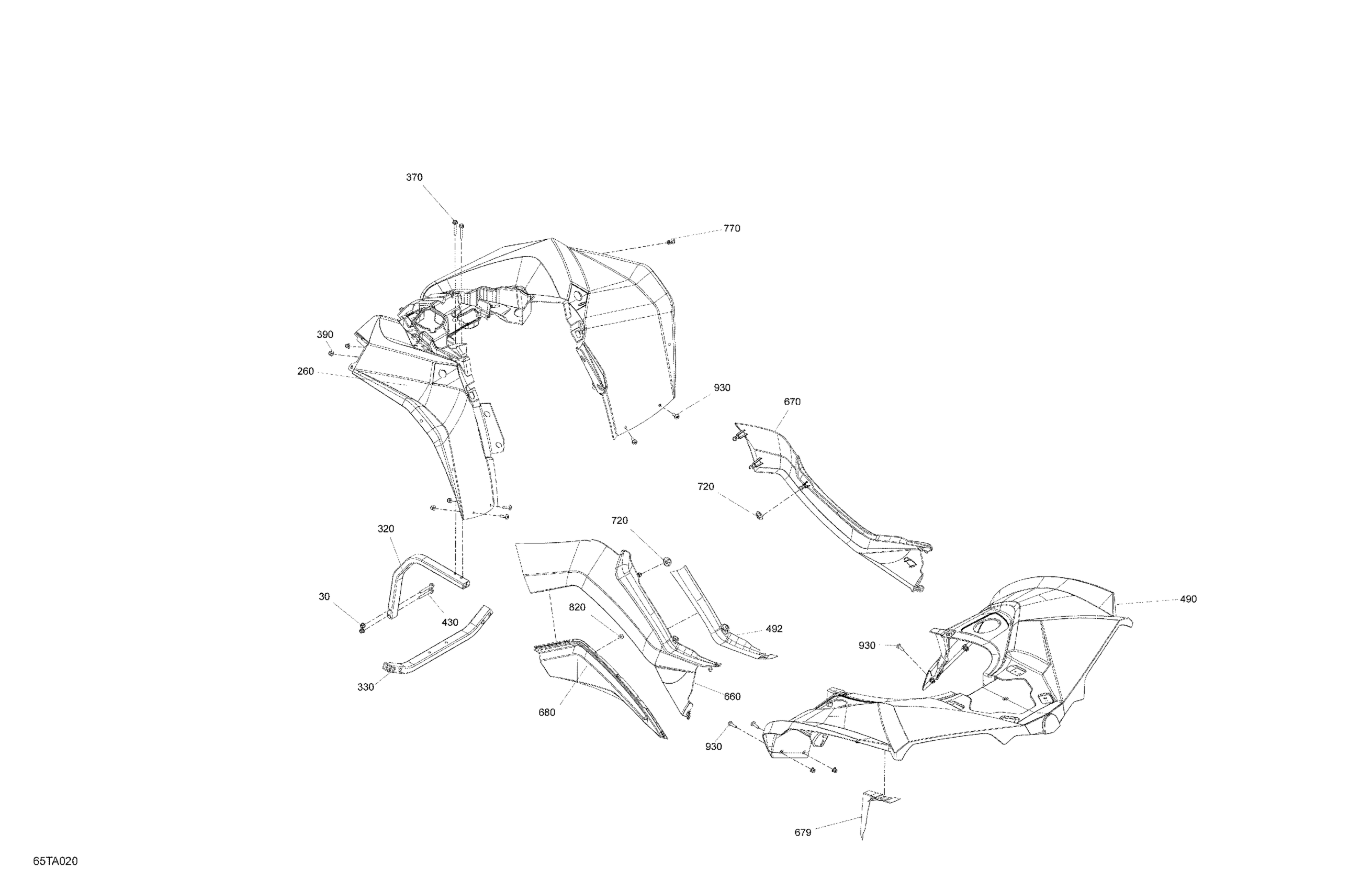

Can-Am Renegade 1000R EFI - XMR - 2021 Body - Fender Kit Diagram

Description

Price

Flange Elastic Nut M6

233261434

$3.61

260

Mineral Gray, Front Fender Kit | North America

715006788

$541.51

320

Front Bent Sectional Tube

705016094

$94.58

330

Bent Sectional Tube

705016093

$94.58

370

Hex. Flange Screw M6 X 35

207663544

$0.74

390

Insert

293450275

$9.89

490

Mineral Gray, Rear Fender Kit | North America

715006803

$427.66

492

Heat Shield

705010559

$8.98

660

Deep Black, LH Central Panel

705014490

$286.12

670

Deep Black, RH Central Panel

705014491

$286.12

679

Heat Shield

705010558

$9.29

680

Panel Extension

705004988

$14.75

720

Grommet

705003264

$3.43

770

Tuflok Plastic Rivet

293150230

$1.21

820

Rubber Bumper

293830005

$5.33

430

Hex. Flange Screw M6 X 45

207664544

$1.07

930

Torx Screw M6 X 20

250000712

$1.74
