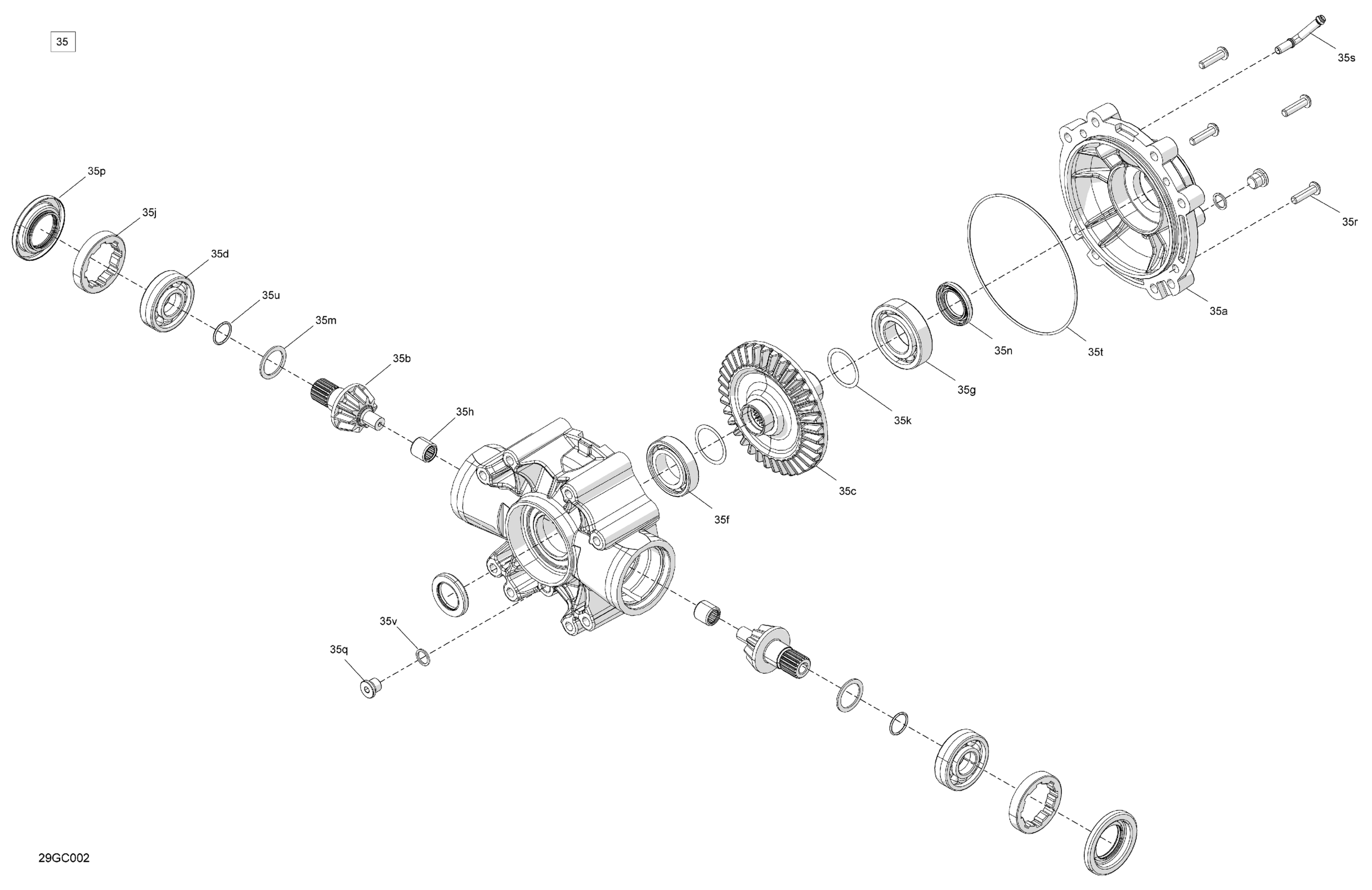

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2023 Drive - Middle Drive Unit Diagram

Description

Price

Middle Drive Unit Ass'y | Includes 35 to 35u

705502369

$1,292.28

35a

Rear Cover

705502390

$175.35

35b

Pinion 10 Teeth

705502823

$207.66

35c

Gear 36 Teeth

705502822

$383.05

35d

Ball Bearing

705502736

$30.39

35f

Ball Bearing

705502737

$46.07

35g

Ball Bearing

705502738

$56.52

35h

Needle Bearing

705502058

$47.49

35j

Nut

705502059

$32.28

35k

Differential Shim 0.02 mm

705502060

$13.83

35m

Pinion Gear Shim 1.67 mm

705502061

$16.12

35n

Oil Seal

705501996

$20.74

35p

Oil Seal

705402405

$27.66

35q

Fill Level Plug | 4X4

705500504

$7.61

35r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

35s

Breather Tube

705501584

$13.86

35t

Seal

705502064

$8.31

35u

O-Ring

705502065

$5.98

35v

Copper Washer | 4X4

705500506

$0.36
