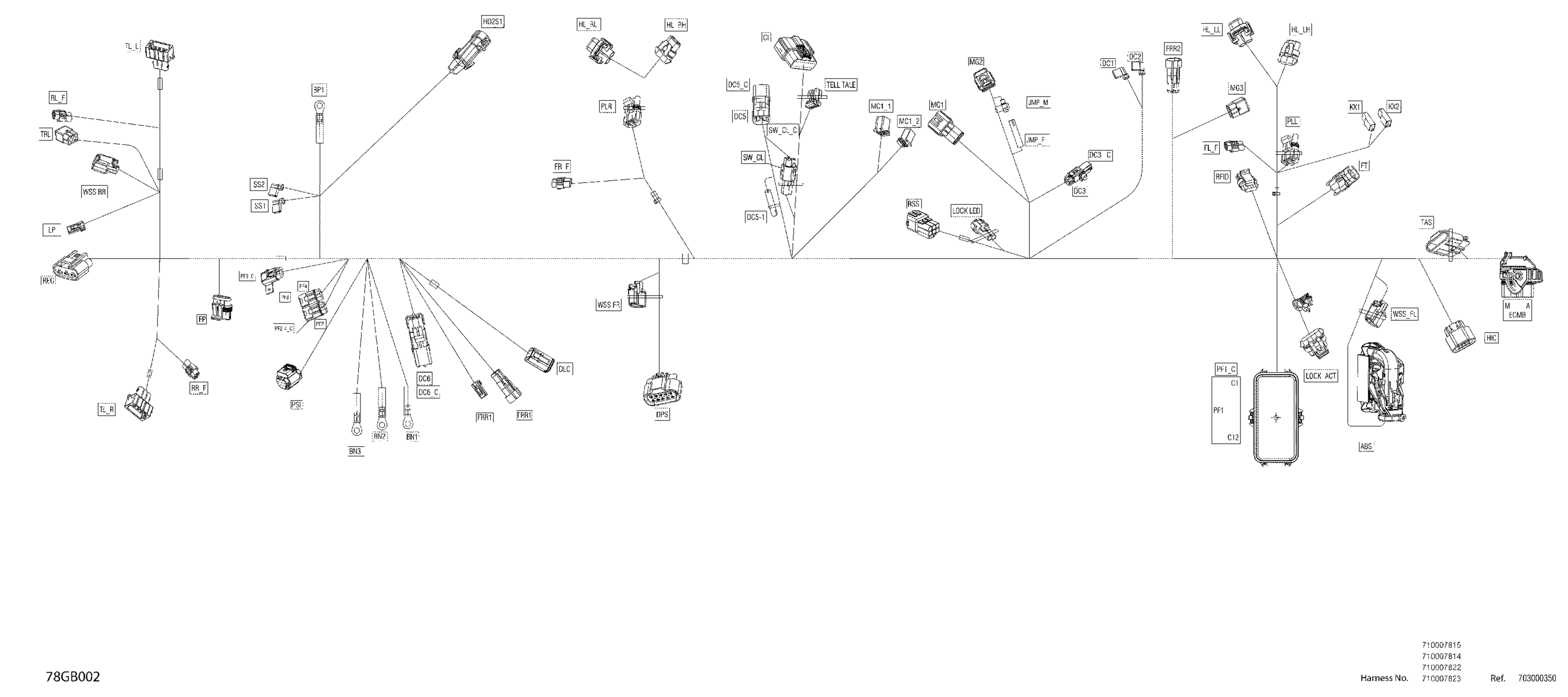

Can-Am Outlander T MAX 6X6 - 450 EFI - XU+ - T Regulation, 2022 Electric - Main Harness - 710007823 Diagram

#

Description
Price

200

Main Wiring Harness

710007823

$807.43

200a

Relay Fuse Logo | Not Shown

710007868

$12.79

BN1

Terminal

710000913

$5.30

BN2

Open Barrel Terminal

278001392

$4.00

BP1

Open Barrel Terminal

278001392

$4.00

Cl

Female Housing 20 Circuits

278002858

$23.10

Cl

Sealing Cap

278002860

$1.63

Cl

Female Terminal

515178018

$0.90

D2

Diode

409012700

$10.51

DC1

Female Terminal

409010300

$4.00

DC2

Female Terminal

409010300

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3_C

Male Housing, 2 Circuits

710000667

$7.25

DC5

Male Connector, 2 Circuits

278000220

$12.66

DC5

Wire Seal

278001065

$5.85

DC5

Female Terminal

278000223

$2.93

DC5_1

Insulated Sheath

278001007

$3.12

DC5_1

Female Terminal

710000421

$5.30

DC5_C

Clip

710000992

$3.88

DC5_C

Female Housing, 2 Circuits

278000217

$8.72

DC5_C

Wire Seal

278000216

$2.93

DC6

Male Connector, 2 Circuits

278000220

$12.66

DC6

Wire Seal

278001065

$5.85

DC6

Female Terminal

278000223

$2.93

DC6_C

Clip

710000992

$3.88

DC6_C

Female Housing, 2 Circuits

278000217

$8.72

DC6_C

Wire Seal

278000216

$2.93

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Plug

710005437

$2.99

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock

710001222

$1.93

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Terminal

710001873

$2.19

DPS

Female Terminal

278002187

$5.79

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Molex Housing, 48 Circuits

710001967

$132.06

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

ECMB

Female Terminal

710001589

$2.06

ECMB

Terminal

710001728

$5.52

ECMB

Female Terminal

710001727

$2.93

F1

Little Fuse, 10 Amperes

710000744

$8.31

F10

Little Fuse, 10 Amperes

710000744

$8.31

F12

Fuse, 25 Amps

710002590

$17.88

F2

Little Fuse, 30 Amperes

710000747

$7.78

F3

Little Fuse, 20 Amperes

710000746

$7.78

F4

Little Fuse, 20 Amperes

710000746

$7.78

F5

Little Fuse, 10 Amperes

710000744

$8.31

F6

Little Fuse, 10 Amperes

710000744

$8.31

F7

Little Fuse, 10 Amperes

710000744

$8.31

F8

Little Fuse, 10 Amperes

710000744

$8.31

F9

Little Fuse, 10 Amperes

710000744

$8.31

FL_F

Wire Seal

710000402

$4.28

FL_F

Female Terminal

409012100

$4.28

FP

Female Housing, 4 Circuits

409209700

$14.90

FP

Wire Seal

278001013

$3.12

FP

Wire Seal

515176621

$6.79

FP

Female Terminal

278001014

$3.12

FP

Female Terminal

710001340

$4.96

FR_F

Wire Seal

710000402

$4.28

FR_F

Female Terminal

409012100

$4.28

FRR1

Female Housing, 2 Circuits

515175658

$14.90

FRR1

Female Terminal

710003896

$1.70

FT

Clip Bracket Connector (edge)

409210100

$1.94

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Male Terminal

409004300

$5.30

HIC

Housing

710001928

$14.52

HIC

Lock

710001222

$1.93

HIC

Cap

710001225

$8.34

HIC

Seal

710001233

$2.93

HIC

Seal Wire

710001332

$3.12

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$3.12

HL_LH

Housing

710002278

$7.12

HL_LH

Lock

710002279

$3.93

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$0.99

HL_LL

Housing

710002578

$3.12

HL_LL

Lock

710002584

$3.93

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$0.99

HL_RH

Housing

710002278

$7.12

HL_RH

Lock

710002279

$3.93

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$0.99

HL_RL

Housing

710002578

$3.12

HL_RL

Lock

710002584

$3.93

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$0.99

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

710002469

$1.93

HO2S1

Seal

278001482

$2.93

HO2S1

Terminal

710000736

$5.19

HO2S1

Gold Terminal

710002597

$2.90

JMP_F

Insulated Sheath

278001007

$3.12

JMP_F

Female Terminal

710000421

$5.30

JMP_M

Insulated Sheath

278001008

$3.10

JMP_M

Female Terminal

278002261

$6.01

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.25

KX1

Female Terminal

409010100

$5.30

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.25

KX2

Female Terminal

409010100

$5.30

LP

Female Housing, 2 Circuits

515175658

$14.90

LP

Female Terminal

710003896

$1.70

MC1_1

Female Housing

710004047

$13.12

MC1_1

Terminal

710002315

$4.19

MC1_2

Female Housing

710004048

$13.75

MC1_2

Terminal

710002315

$4.19

MG1

Connector

710007097

$19.37

MG1

Cap

710000080

$6.28

MG1

Wire Seal

710000402

$4.28

MG1

Male Terminal

409011300

$5.61

MG2

Connector

710007098

$10.10

MG2

Seal

409012300

$4.25

MG2

Wire Seal

710000402

$4.28

MG2

Female Terminal

409012100

$4.28

MG3

Female Housing 6 Circuits

710001445

$7.33

MG3

Wire Seal

710000402

$4.28

MG3

Female Terminal

409012100

$4.28

PF1

Fuse Box Base Ass´y

415129856

$47.73

PF1

Cap

710000840

$5.33

PF1

Wire Seal

278000999

$2.93

PF1

Seal

415128501

$1.73

PF1

Female Terminal

515177009

$4.96

PF1

Female Terminal

515177012

$4.96

PF1_C

Fuse Cover

710001026

$20.12

PF1_C

Relay Fuse Logo | Not Shown

710007868

$12.79

PF1_C

Foam

278002172

$5.33

PF1_C

Little Fuse, 10 Amperes

710000744

$8.31

PF1_C

Little Fuse, 20 Amperes

710000746

$7.78

PF1_C

Little Fuse, 25 Ampere

278002389

$4.28

PF1_C

Little Fuse, 30 Amperes

710000747

$7.78

PF2

Fuse

710001613

$8.31

PF2

Fuse Holder

278001325

$8.31

PF2

Female Terminal

710000113

$5.85

PF4

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000357

$5.85

PLL

Male Connector, 2 Circuits

278000220

$12.66

PLL

Wire Seal

278001065

$5.85

PLL

Female Terminal

278000223

$2.93

PLR

Male Connector, 2 Circuits

278000220

$12.66

PLR

Wire Seal

278001065

$5.85

PLR

Female Terminal

278000223

$2.93

R1

Resistor

710005179

$2.24

R3

Resistor

710007300

$2.24

REG

Female Housing, 3 Circuits

710000879

$24.60

REG

Cap

710000882

$10.55

REG

Seal

710001932

$3.06

REG

Terminal

710001934

$5.18

RFID

Housing

710001161

$10.51

RFID

Lock

710001162

$3.18

RFID

Wire Seal

710001163

$5.85

RFID

Female Terminal

710001164

$6.79

RL_F

Wire Seal

710000402

$4.28

RL_F

Female Terminal

409012100

$4.28

RR_F

Wire Seal

710000402

$4.28

RR_F

Female Terminal

409012100

$4.28

RSS

Male Terminal Housing, 6 Circuits

710000835

$15.64

RSS

Wire Seal

710000402

$4.28

RSS

Male Terminal

409011300

$5.61

RY1

Relay, 30 AMP

515176774

$18.63

RY2

Relay

715900824

$18.63

RY3

Relay

715900824

$18.63

RY4

Relay, 30 AMP

515176774

$18.63

RY5

Relay, 30 AMP

515176774

$18.63

RY6

Relay

715900824

$18.63

SS1

Female Terminal

409010300

$4.00

SS2

Female Terminal

409010300

$4.00

SW_CL

Cap

710000080

$6.28

SW_CL

Wire Seal

710000402

$4.28

SW_CL

Male Terminal

409011300

$5.61

SW_CL_C

Female Terminal Housing, 3 Circ.

710000153

$9.25

SW_CL_C

Cap

710000080

$6.28

TAS

Housing

710001231

$11.69

TAS

Lock 6 Positions

710005296

$0.79

TAS

Seal

710001233

$2.93

TAS

Terminal

710001224

$2.93

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$7.78

TELL TALE

Female Terminal

515175231

$4.00

TL_L

Connector, 3 Positions

710003167

$8.58

TL_L

Seal

415128501

$1.73

TL_L

Female Terminal

278000998

$4.00

TL_R

Connector, 3 Positions

710003167

$8.58

TL_R

Seal

415128501

$1.73

TL_R

Female Terminal

278000998

$4.00

TRL

Female Housing, 6 Circuits

710000081

$7.88

TRL

Wire Seal

710000402

$4.28

TRL

Seal

409012300

$4.25

TRL

Female Terminal

409012100

$4.28
