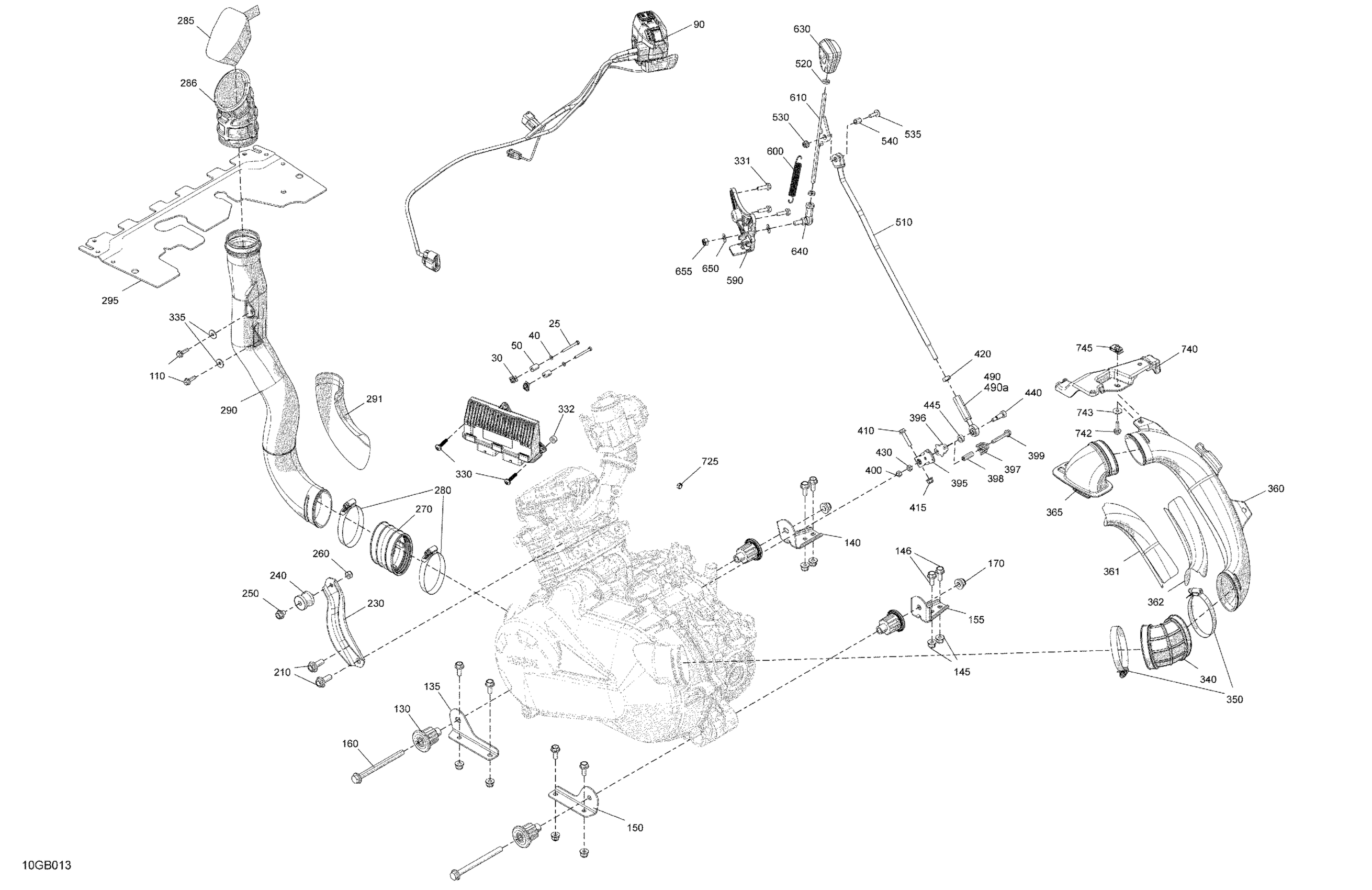

Can-Am Outlander T MAX 6X6 - 450 EFI - XU+ - T Regulation, 2022 Engine - System Diagram

#

Description
Price

25

Hex. Cap Screw

207144044

$0.96

30

Extruded Panel Nut M4 X 0.7

250100143

$7.78

40

Flat Washer 4 mm

234040600

$0.52

50

Bushing

293900117

$2.03

90

Hand Lever Accelerator

707002693

$276.84

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

130

Vibration Damper

707001169

$42.99

135

LH Front Engine Bracket

707001407

$11.91

140

RH Front Engine Bracket

707001408

$11.91

145

Hex. Elastic Flange Nut M8

233281416

$1.43

146

Hex. Flange Screw M8 X 20

207682046

$1.76

150

LH Rear Engine Bracket

707001409

$11.91

155

RH Rear Engine Bracket

707001410

$11.91

160

Hex. Flange Screw M10 X 125

230602546

$6.99

170

Hex. Flange Elastic Nut M10

233201436

$2.00

210

Hex. Flange Screw M10 X 25

207602544

$1.52

230

Upper Engine Bracket

707001411

$10.27

240

Rubber Isolator

707000949

$10.33

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

260

Hex. Elastic Stop Nut M8

232581414

$0.54

270

Flexibale Adaptor

707002585

$14.31

280

Norma Clamp

293650091

$10.60

285

CVT Filter

707001786

$17.13

286

CVT Inlet

707001864

$59.67

290

CVT Air Inlet

707002289

$43.25

291

Heat Shield

707001638

$2.85

295

Upper Water Deflector

707001124

$20.12

330

Screw PT K60 X 30

250000949

$2.00

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

332

Bushing

293900128

$3.07

335

Flat Washer M6, Stainless

234062600

$0.73

340

CVT Air Outlet Adaptor

707001425

$16.39

350

Norma Clamp

293650091

$10.60

360

CVT Air Outlet

707001413

$37.99

361

Heat Shield

707001639

$2.85

362

Heat Shield

707001641

$2.85

365

CVT Cooling Duct Out

706600400

$49.22

395

Lever

707000503

$38.49

396

Pivot Plate

707000507

$7.21

397

Spring

707000310

$9.09

398

Bushing

293900079

$8.24

399

Hex. Flange Screw M6 X 40

207664044

$2.12

400

Elastic Stop Nut M6

232561434

$1.78

410

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

420

Hex. Nut M8, LH Threads

250100144

$1.88

430

Elastic Stop Nut M6

232561434

$1.78

440

Socket Head Screw M8 X 16

250000669

$3.00

445

Bushing

293900028

$11.81

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$34.30

490a

Hex. Jam Nut M8

232180600

$0.64

510

Shifter Rod

707002382

$35.04

520

Hex. Jam Nut M8

232180600

$0.64

530

Hex. Flange Nut M6

233161414

$2.00

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.15

540

Bushing

293900019

$7.21

590

Lever Support

707003054

$6.16

600

Spring

707000577

$9.73

610

Shift Arm | Except Europe

707000840

$14.43

630

Lever Trim

707003211

$7.72

640

RH Ball Joint

707001959

$34.30

650

Washer

506151252

$3.01

655

Hex. Elastic Stop Nut M8

232581414

$0.54

725

Oetiker Clamp

293650100

$3.15

740

Air Outlet Support

707001262

$7.39

742

Hex. Flange Screw M6 X 20

207662044

$1.91

743

Flat Washer 6 mm

234062410

$0.73

745

Panel Nut M6 X 1.0

250100198

$1.99

820

Crimp Clamp

293650240

$6.36
