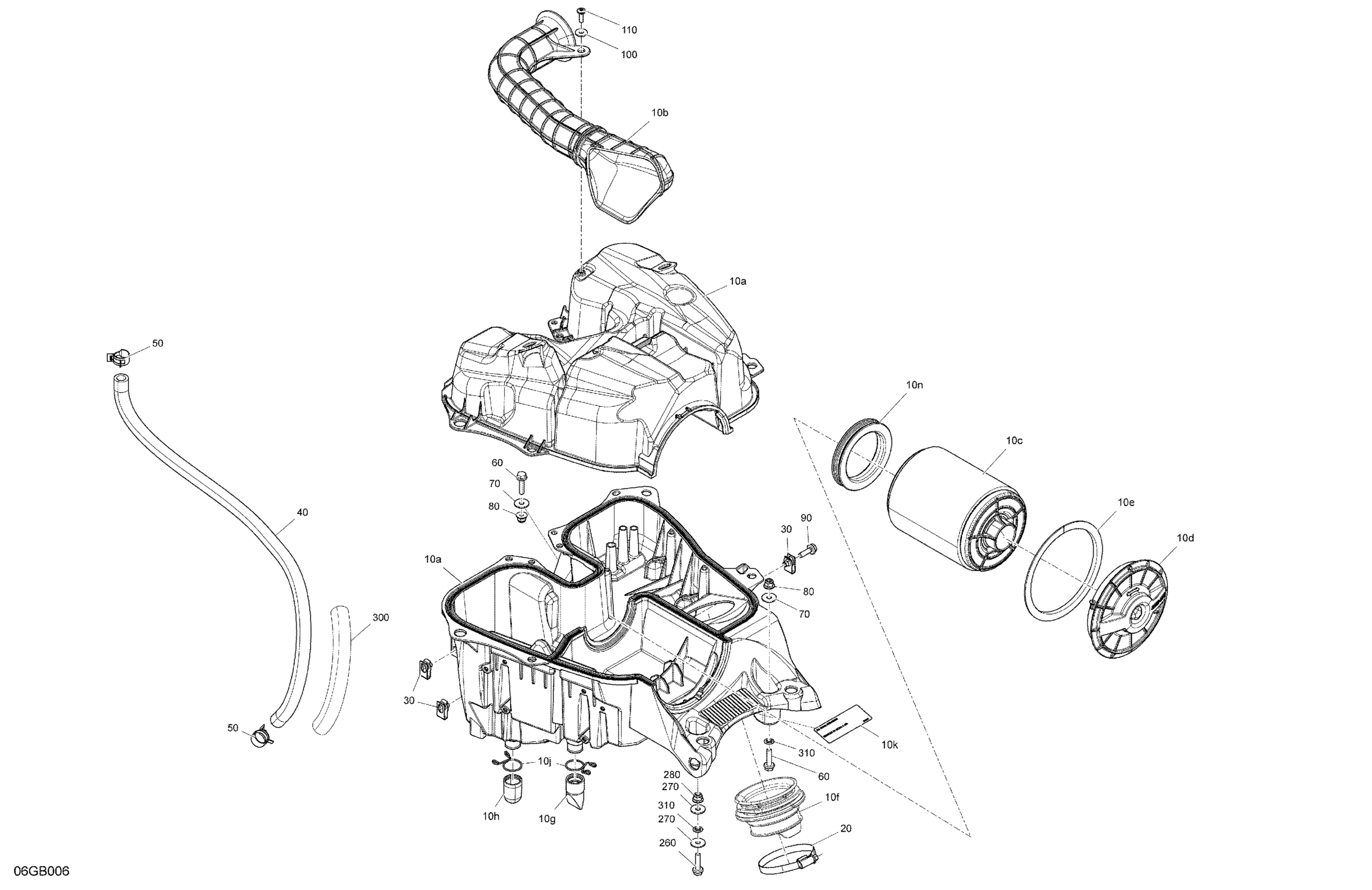

Can-Am Outlander T MAX 6X6 - 450 EFI - XU+ - T Regulation, 2022 Engine - Air Intake Diagram

Description

Price

10a

Air Box

707800724

$80.57

10b

Air Intake Hose

707800375

$49.97

10c

Air Filter

707800371

$36.54

10d

Intake Silencer Cap Ass'y

715002174

$14.42

10e

Gasket

293300175

$12.49

10f

Intake Adaptor

707800723

$17.13

10g

Drain Tube

707800404

$2.89

10h

Drain Tube

707800080

$6.99

10j

Retainer Clip

707800278

$12.30

10k

Air Filter Maintenance Decal

707800373

Unavailable

10n

Air Filter Adaptor

707800470

$17.88

Norma Clamp

293650091

$10.60

Panel Nut M6 X 1.0

250100198

$1.99

Hose

707800586

$17.88

Norma Clamp

293650110

$4.25

Hex. Flange Screw M6 X 25

207662544

$0.61

Flat Washer

250200082

$0.40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Screw M6 X 20

207662044

$1.91

100

Washer | DS 650 X

391301600

$0.46

110

Torx Screw K50 X 16

250000720

$1.60

260

Hex. Flange Screw M6 X 25

207662544

$0.61

270

Flat Washer

250200082

$0.40

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

300

Tube 25Mm 1000Mm Long | Engine 450

219704350

$48.48

310

Push Nut

732610072

$1.97
