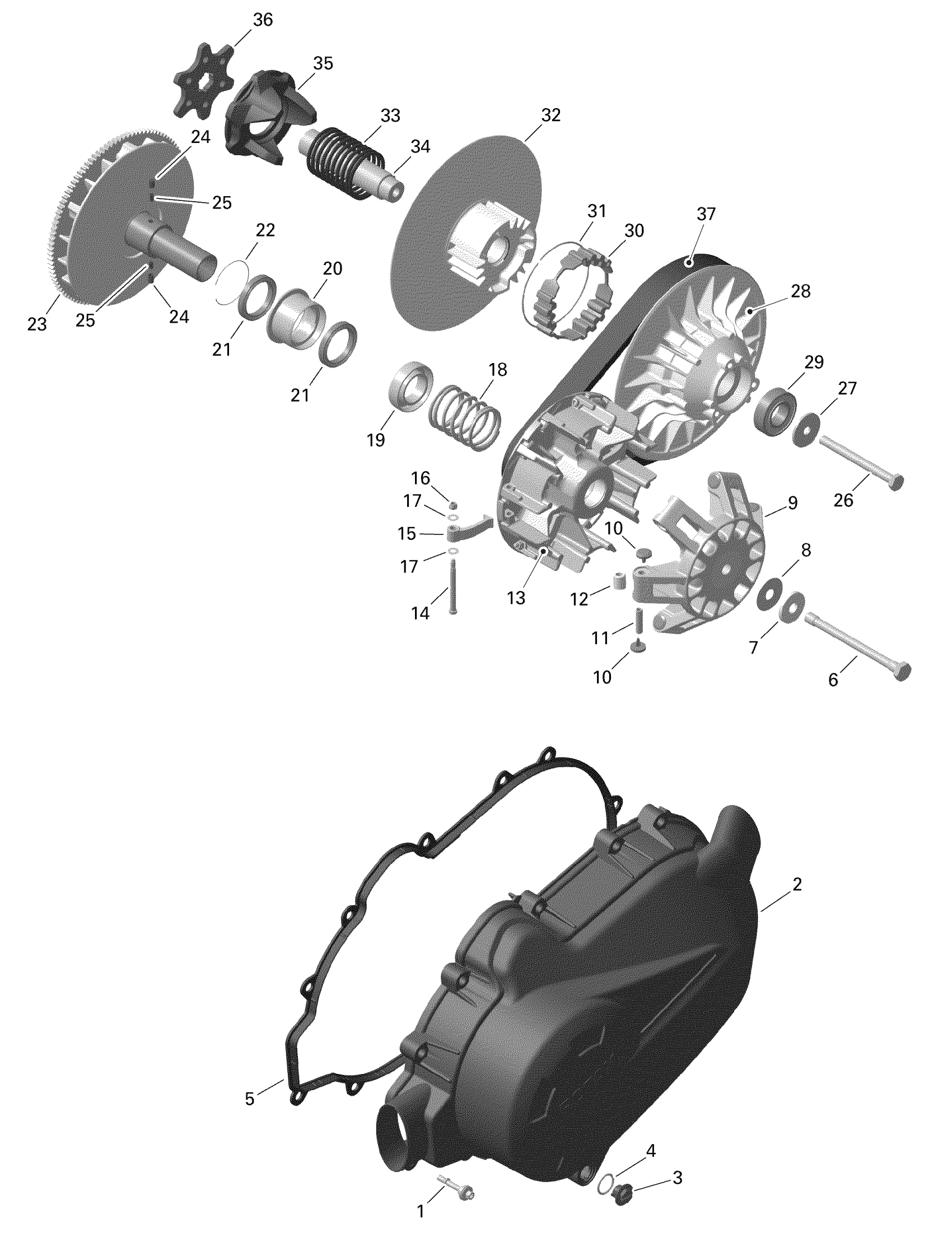

Can-Am Outlander 450 EFI - STD - 2022 Rotax - Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$7.10

2

CVT Cover Ass'y | Includes 2a to 4

420612465

$281.51

3

Cap

420441820

$11.06

4

O-Ring

420250050

$9.29

5

Gasket

420630292

$32.28

6

Hex. Screw M12 X 140

420641812

$27.66

7

Spring Washer

420627760

$11.98

8

Thrust Washer

420627920

$7.37

9

Governor Cup Ass'y | Includes 9 to 12

420280515

$253.82

10

Slider Shoe Set

420281296

$42.28

11

Roller Axle

417223257

$9.22

12

Roller

417223767

$7.37

13

Outer Haft

420280467

$198.43

14

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$132.99

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Compression Spring

420238166

$36.89

19

Seat Spring

420627578

$28.57

20

Clutch

420257439

$64.58

21

Ball Bearing

420632377

$40.27

22

Retaining Ring

420245951

$4.72

23

Inner Half Ass'y

420280247

Unavailable

24

Spring Sleeve

420229577

$14.92

25

Compression Spring

420239135

$6.45

26

Hex. Screw M10 X 110

420441485

$11.98

27

Thrust Washer

420627594

$12.91

28

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.99

29

Ball Bearing

420932421

$26.89

30

Torque Gear

420660124

$23.05

31

Retaining Ring

420245911

$5.98

32

Inner Half Ass'y | Includes 33 to 35

420248233

$308.74

33

Compression Spring, Driven Pulley

420238173

$55.35

34

Driven Pulley Shaft

420220914

$124.58

35

Cam

420280250

$41.51

36

Cam Plate

420627586

$46.12

37

Drive Belt

422280283

$99.74
