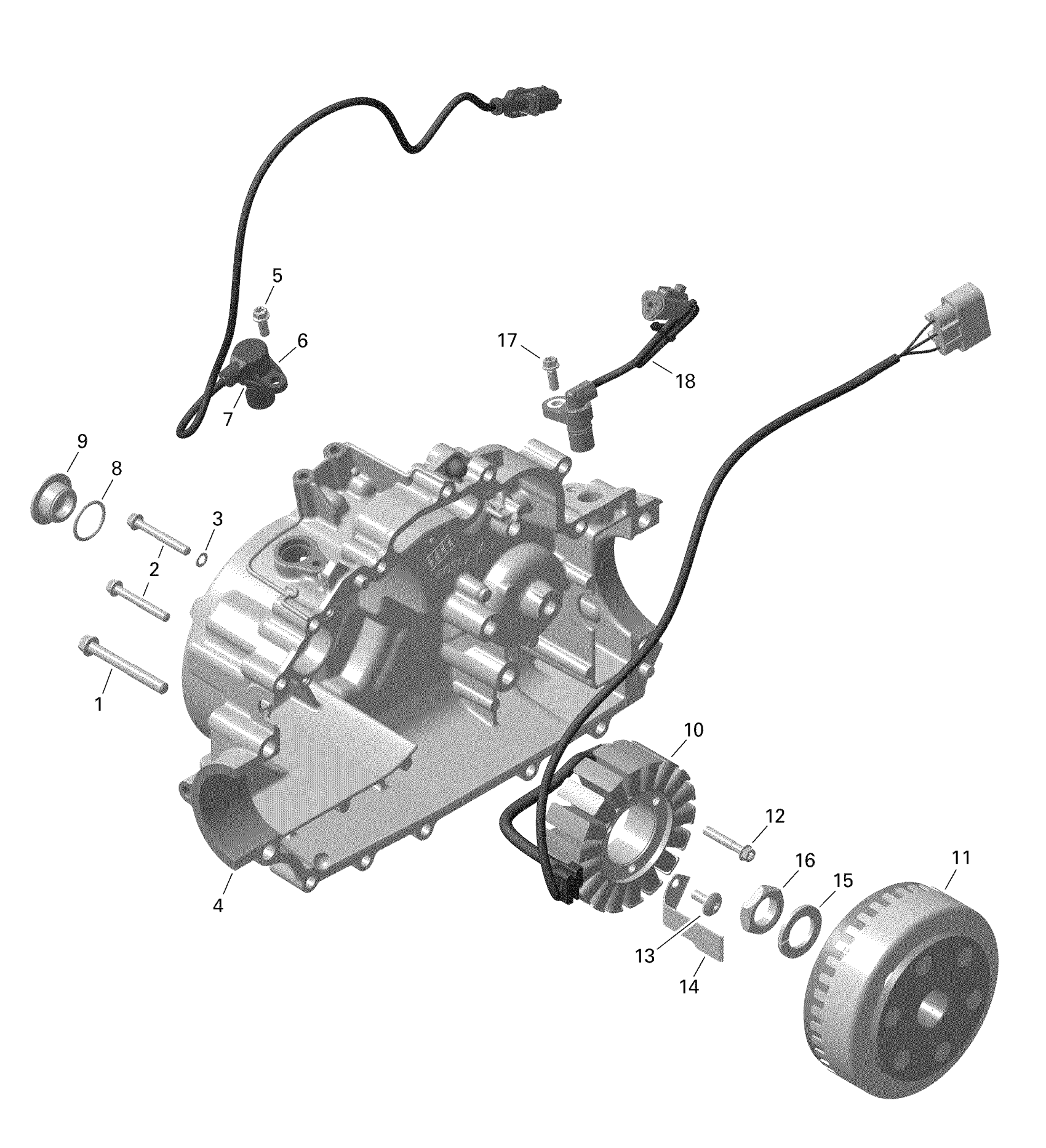

Can-Am Outlander 450 EFI - DPS - 2022 Rotax - Magneto - 480W Diagram

Description

Price

Torx Flange Screw M8 X 65

420440402

$7.41

Torx Flange Screw M6 X 45

420440324

$0.98

Seal Washer

420230415

$1.79

Not Available As Spare Part - Friction Washer

Unavailable

Torx Flange Screw M6 X 16

420440162

$3.17

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

O-Ring

420431580

$14.83

O-Ring

420430782

$5.39

Plug Screw M24X 1.5

420241633

$7.41

Stator Plate, 480W

420685921

$297.99

Flywheel 480W

420686275

$451.49

Torx Flange Screw M6 X 35

420440274

$1.01

Torx Screw M6 X 16

420241529

$2.11

Inner Cable Cover

420251270

$12.12

Lock Washer, 22 mm

420945759

$1.90

Hex. Nut, M22 X 1.5

420842239

$17.53

Torx Flange Screw M6 X 16

420440162

$3.17

Camshft Position Sensor Ass'y

420265727

$109.99
