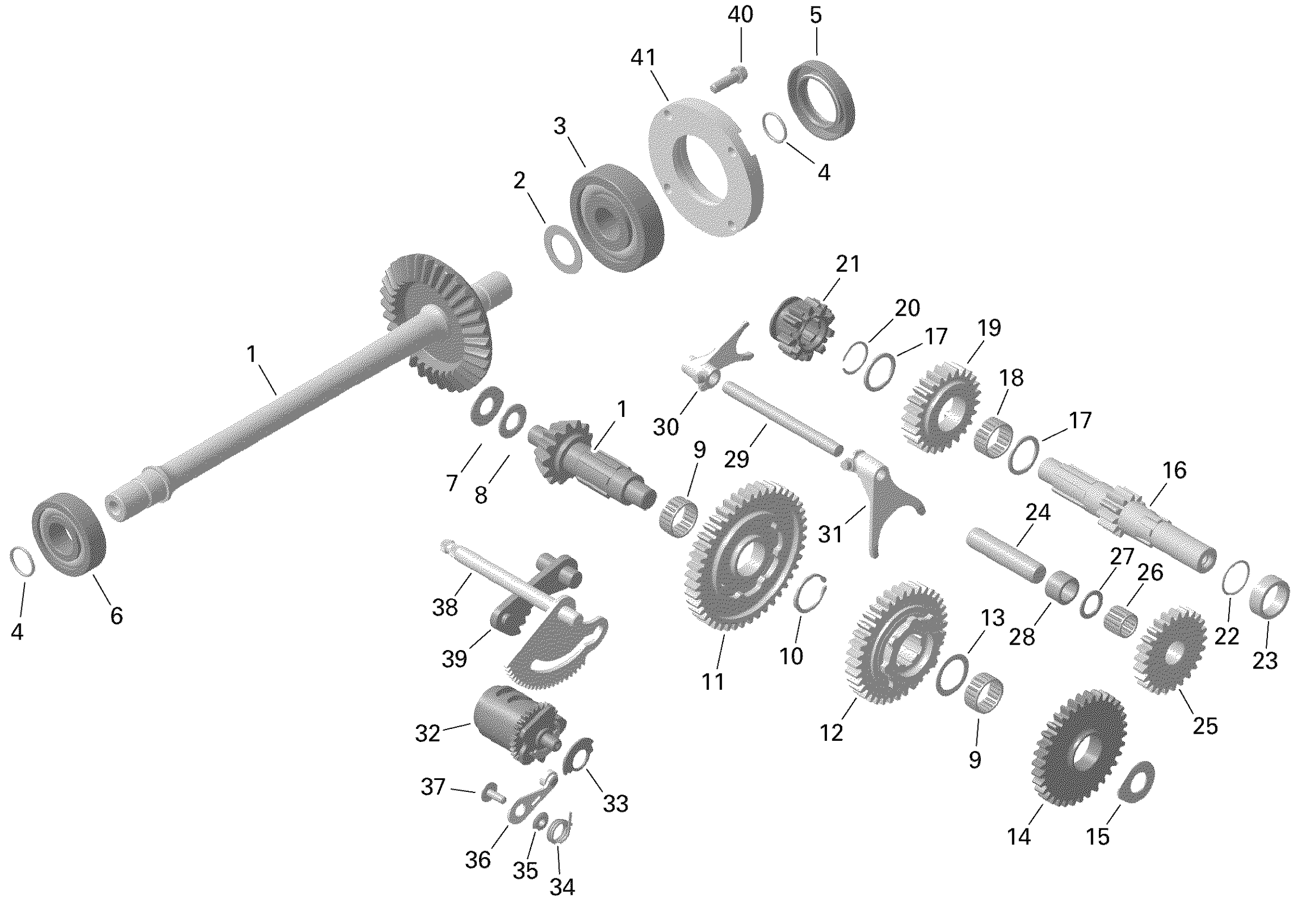

Can-Am Outlander 450 EFI - STD - 2022 Rotax - Gear Box And Components - 1 Diagram

#

Description
Price

1

Bevel Gear Ass’y

420635558

$659.99

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Oil Seal

420650683

$19.49

6

Ball Bearing

420932822

$30.49

7

Thrust Washer Set, MAG Side

420281306

$61.49

8

Axial Needle Bearing

420632300

$18.49

9

Drive Gear Ass'y | Includes 1a to 28

420684224

$1,515.99

9

Needle Bearing

420632070

$25.99

10

Retaining Ring

420245850

$5.31

11

Sliding Gear 44T

420635583

$148.49

12

Gear Pinion 36T

420635575

$104.99

13

Thrust Washer

420427010

$3.98

14

Gear Pinion 34T

420635184

$88.99

15

Thrust Washer Set, CVT Side

420281302

$86.99

16

Countershaft 11T

420220972

$137.99

17

Thrust Washer

420227862

$3.98

18

Needle Bearing

420632070

$25.99

19

Gear Pinion 25T

420635605

$79.99

20

Circlip

420445302

$4.12

21

Gear Shift 16T

420635217

$74.99

22

O-Ring

420630040

$4.44

23

Distance Ring

420247125

$20.99

24

Needle Pin

420229600

$37.99

25

Intermediate Gear 25T

420635674

$87.99

26

Needle Cage

420432034

$35.99

27

Thrust Washer

420944192

$2.61

28

Distance Ring

420247122

$8.09

29

Pin

420229540

$20.99

30

Shift Fork

420257332

$124.99

31

Shift Fork

420257342

$104.99

32

Shift Drum

420257329

$179.99

33

Isolating Washer

420627782

$5.50

34

Index Spring

420238290

$11.12

35

Step Ring

420227717

$12.12

36

Index Lever

420248331

$20.99

37

Torx Screw M6 X 16

420241529

$2.11

38

Shift Shaft Ass'y

420620136

$98.99

39

Parking Lock Lever

420257316

$58.99

40

Torx Flange Screw M8 X 25

420440372

$4.12

41

Bearing Cover

420610243

$58.99
