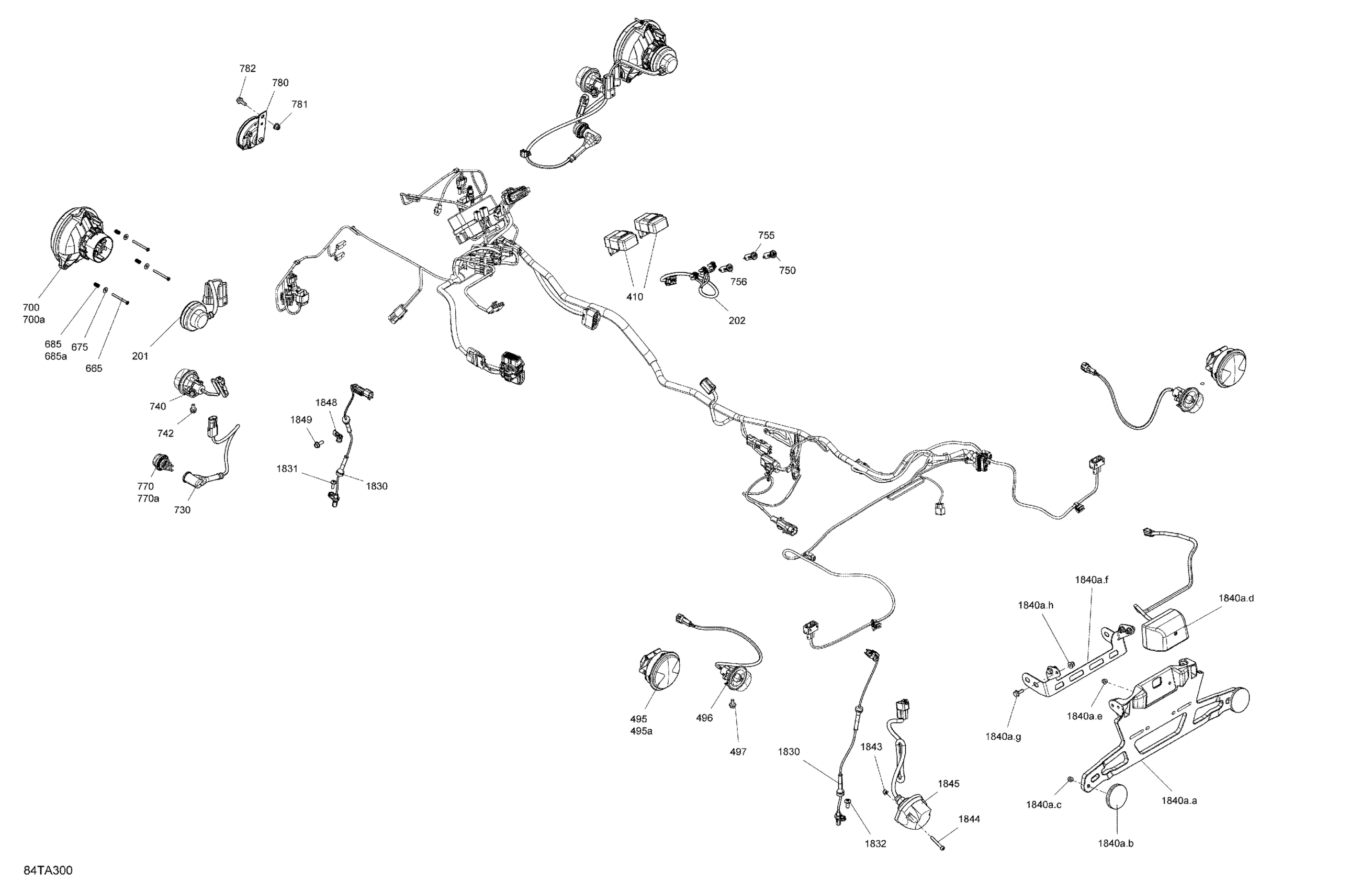

Can-Am Outlander T MAX 570 EFI - DPS_XT - T Regulation, 2021 Electric - Flasher lights Diagram

#

Description
Price

201

Light Cable

710005780

$20.74

202

Indicator Light Cable

710005840

$16.89

280

Clip

414227300

$1.45

281

Clip

414227300

$1.45

410

Flasher Unit

710003239

$78.43

495

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

495

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

495a

Bulb

520000758

$7.49

496

Flasher | Europe

710002964

$35.14

497

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

685a

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

730

Position Light Harness

710005676

$13.52

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

750

Pilot Lamp | Model-Europe

710003909

$23.05

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

770

Day Light | Europe

710001726

$36.89

770

Day Light | Europe

710001726

$36.89

770a

Cap Protector | Model-Europe

710003269

$10.98

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

1830

Speed Sensor

710006981

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1832

Torx Truss Screw M6 X 16

250000721

$1.39

1840a.a

Plate Support | Europe

708300434

$25.35

1840a.b

Red Reflector

705011221

$12.32

1840a.c

Flange Elastic Nut M5

233251434

$1.66

1840a.d

License Plate Light | Europe

710005563

$124.58

1840a.e

Flange Elastic Nut M5

233251434

$1.66

1840a.f

License Plate Support

710009520

$10.69

1840a.g

Hex. Flange Screw M6 X 16

207661644

$0.61

1840a.h

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1840b

Elastic Flange Nut M8

233281464

$0.83

1840c

Torx Truss Screw M8 X 50

250000761

$6.18

1843

Flange Elastic Nut M5

233251434

$1.66

1844

Socket Head Screw M5 X 35

205053588

$1.56

1845

Trailer Harness

710005846

$212.28

1848

Clamp

293650256

$4.36

1849

Hex. Flange Screw M6 X 16

210261640

$1.74
