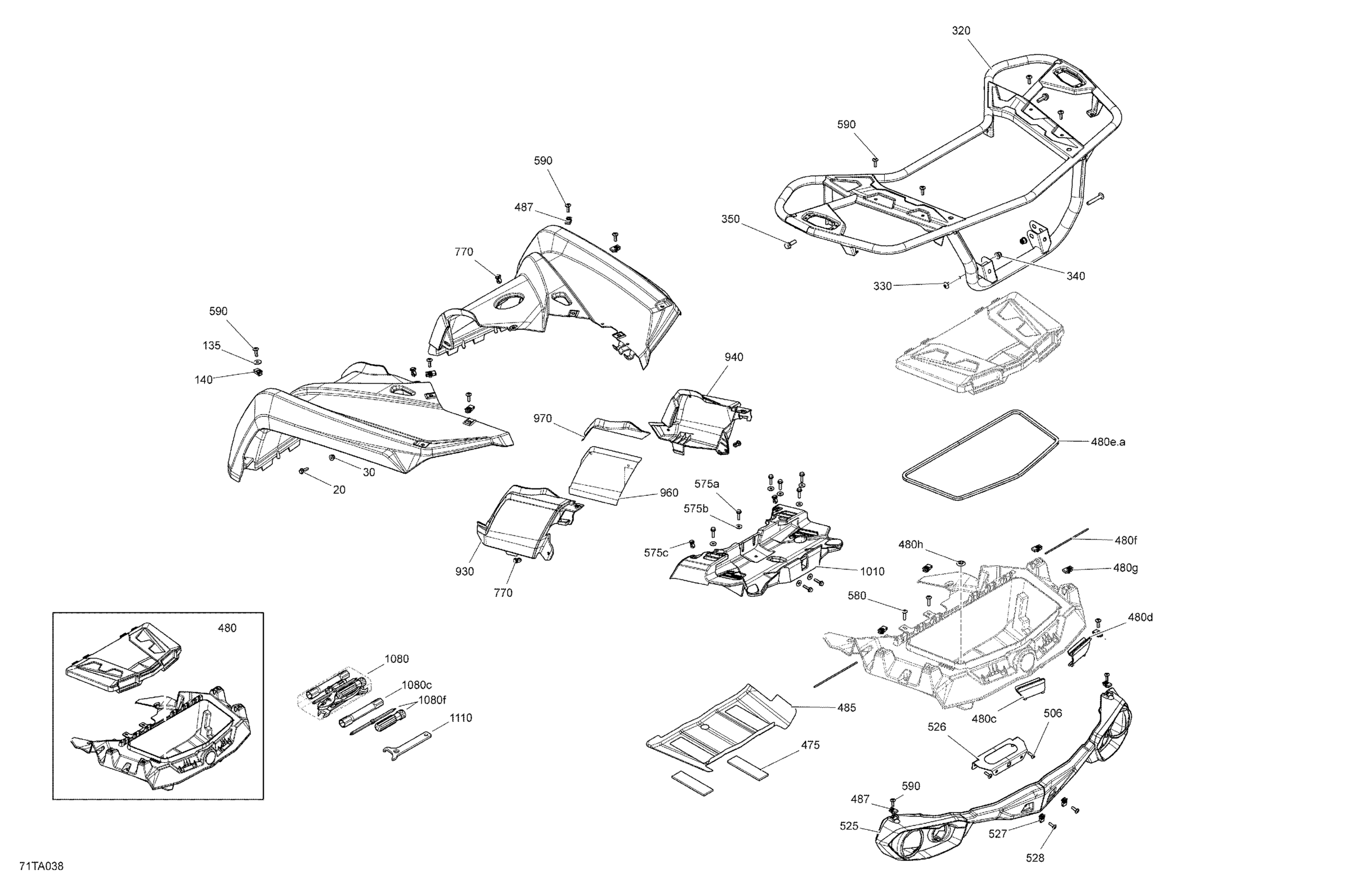

Can-Am Outlander T MAX 570 EFI - DPS_XT - T Regulation, 2021 Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

320

Rear Luggage Rack Ass'y | Except Model North America

715005988

$254.45

330

Torx Truss Screw M8 X 50

250000761

$6.18

340

Elastic Flange Nut M8

233281464

$0.83

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

475

Rubber Pad

293830163

$7.81

480

Rear Storage Box Ass'y

715007976

$206.69

480c

LH Box Rear Latch

705007448

$9.91

480d

RH Box Rear Latch

705007921

$9.85

480e.a

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$34.30

480f

Retaining Rod

705007531

$70.87

480g

Panel Nut M6 X 1.0

250100198

$1.73

480h

CAP - Call your local BRP dealership

414859400

Unavailable

485

Heat Deflector Sheet

705007487

$3.81

487

Panel Nut M6 X 1.0

250100198

$1.73

506

Torx Screw M6 X 20

250000722

$1.34

525

Rear Facia

705011887

$68.63

526

Bracket

705012280

$25.34

527

Panel Nut M6 X 1.0

250100198

$1.73

528

Torx Screw M6 X 20

250000722

$1.34

575a

Hex Flange Screw M6 X 25

250000841

$6.15

575b

Stainless Steel Flat Washer

234062670

$1.74

575c

Tuflok Plastic Rivet

293150230

$1.21

580

Torx Truss Screw M6 X 25

250000807

$1.74

590

Torx Screw M6 X 20

250000722

$1.34

770

Tuflok Plastic Rivet

293150230

$1.21

822

Elastic Flange Nut M8

233281464

$0.83

930

LH Extension Panel

715001897

$24.60

940

RH Extension Panel

705004348

$23.85

960

Heat Shield

705006870

$4.76

970

Heat Shield

705006871

$4.76

1010

Seat Holder

705007948

$52.21

1080

Tool Kit

704700168

$40.99

1080c

Socket Wrench 14/16MM

529000085

$6.55

1080f

Screw Driver

529000021

$3.19

1110

Adjustment Wrench

529000035

$2.19
