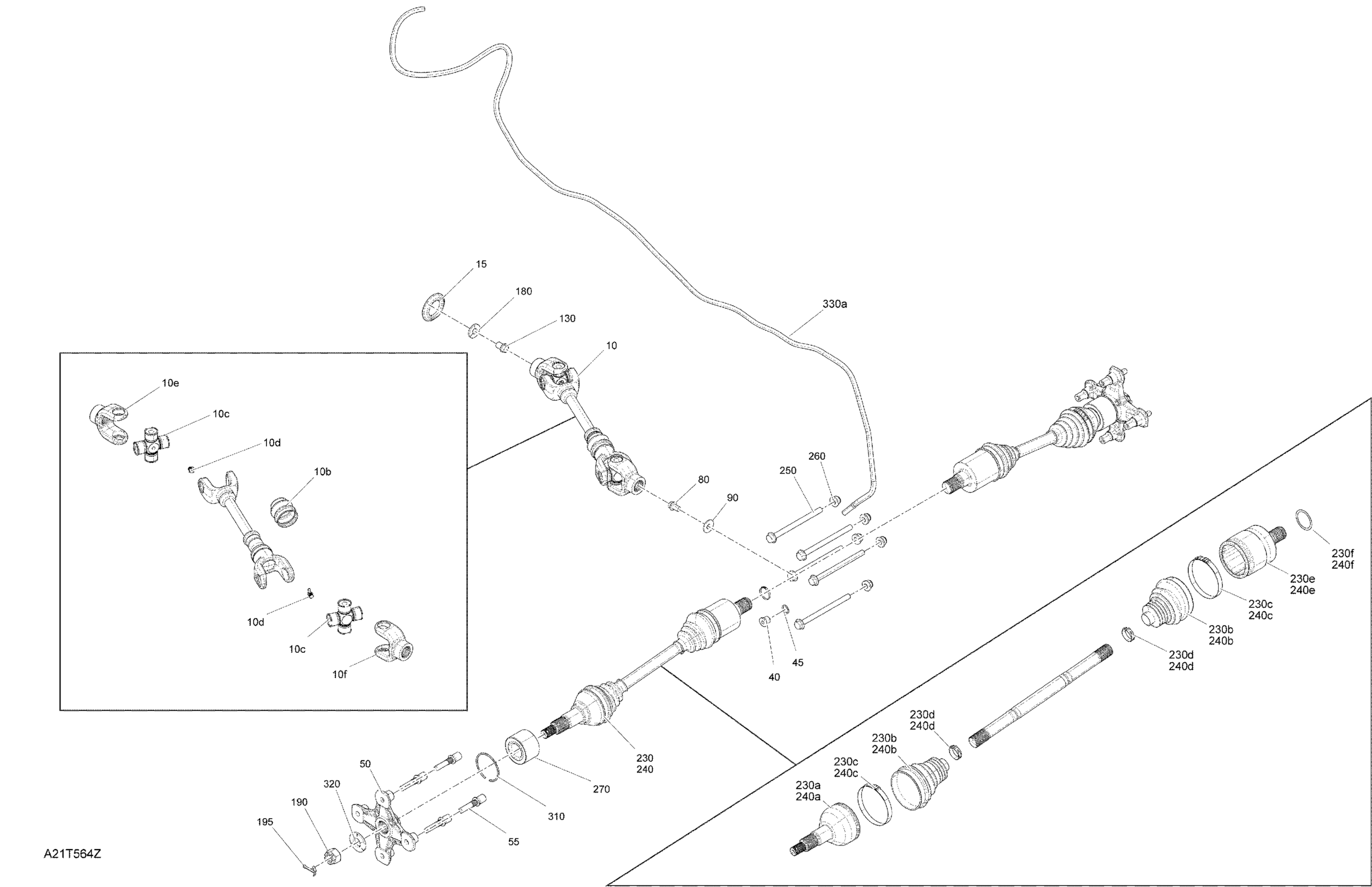

Can-Am Outlander T MAX 570 EFI - DPS_XT - T Regulation, 2021 Drive - Rear Section - Common Parts Diagram

#

Description
Price

10

Shaft Ass'y Kit | Includes 10 to 10b

703501017

$241.01

10b

Rubber Boot

715900118

$13.28

10c

Universal Joint Ass'y | T3

703500846

$55.19

10d

Grease Fitting | T3

715900295

$4.09

10e

Yoke

715900499

$23.10

10f

Yoke

715900438

$23.10

10g

Protector

705501123

$5.90

15

Protector

705501123

$5.90

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

50

Wheel Hub Ass'y

705501716

$123.10

50

Wheel Hub | Built Dec 21 2020 And Up

705503050

$94.00

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$226.84

230a

CV Joint

705501776

Unavailable

230b

Boot Kit

705501864

$39.52

230c

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d

Oetiker Clamp, 27.3 mm

715900242

$7.84

230e

Plunging Joint

715900604

$102.21

230f

Circlip

705501781

$5.10

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

240

LH Half Shaft Ass'y

705501898

$226.84

240a

CV Joint

705501776

Unavailable

240a

CV Joint

705401344

$241.01

240b

Boot Kit

705501864

$39.52

240c

Oetiker Clamp, 82.1 mm

715900241

$7.84

240d

Oetiker Clamp, 27.3 mm

715900242

$7.84

240b

Boot Kit, Wheel Side

705401345

$39.52

240c

Oetiker Clamp

715900282

$4.39

240d

Oetiker Clamp, Small

715900283

$4.39

240b

Boot Kit, Differential Side

705401346

$39.52

240c

Oetiker Clamp, Large

715900284

$4.39

240d

Oetiker Clamp, Small

715900261

$4.39

240e

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240e

Plunging Joint

715900304

$110.42

240f

Circlip

705501781

$5.10

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42
