09- Frame

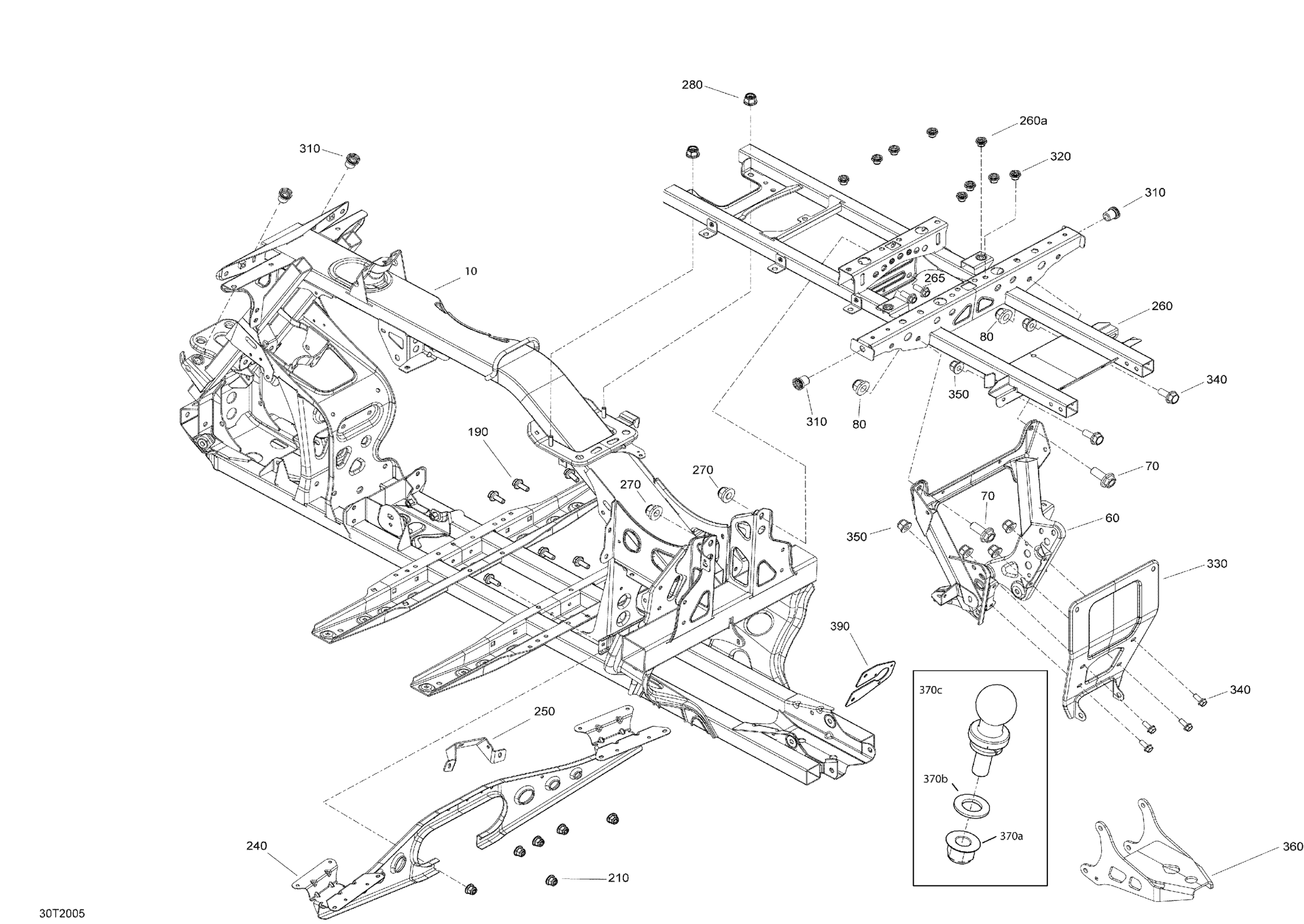

Can-Am 005 - Outlander T MAX 570 EFI - DPS_XT - T Regulation, 2020 09- Frame Diagram
#
Description
Price
10
Chassis
705209379
Unavailable
60
Rear Pillar
705210818
Unavailable
70
Hex. Flange Screw M10 X 25
207602546
Unavailable
80
Hex. Flange Elastic Nut M10
233201436
Unavailable
190
Hex. Flange Screw M6 X 16
207661644
Unavailable
210
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
240
Footrest Support
705210817
Unavailable
250
Master Cylinder Bracket
705203874
Unavailable
260
Chassis Extension
705210820
Unavailable
260a
Threaded Insert M6 X 1.0
250100242
Unavailable
265
Hex. Flange Screw M10 X 25
207602546
Unavailable
270
Hex. Flange Elastic Nut M10
233201436
Unavailable
280
Hex. Flange Elastic Nut M8
233281414
Unavailable
310
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
320
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
330
Rear Support
705203541
Unavailable
340
Hex. Flange Screw M8 X 20
207682046
Unavailable
350
Hex. Elastic Flange Nut M8
233281416
Unavailable
360
Black, Trailer Hitch
705206592
Unavailable
370a
Elastic Flange Nut M20
250100104
Unavailable
370b
Flat Washer
250200094
Unavailable
370c
Ball Coupling 50 MM Ass'y | Includes 370 to 370d
705208129
Unavailable
390
Trailer connector Support
705206416
Unavailable
