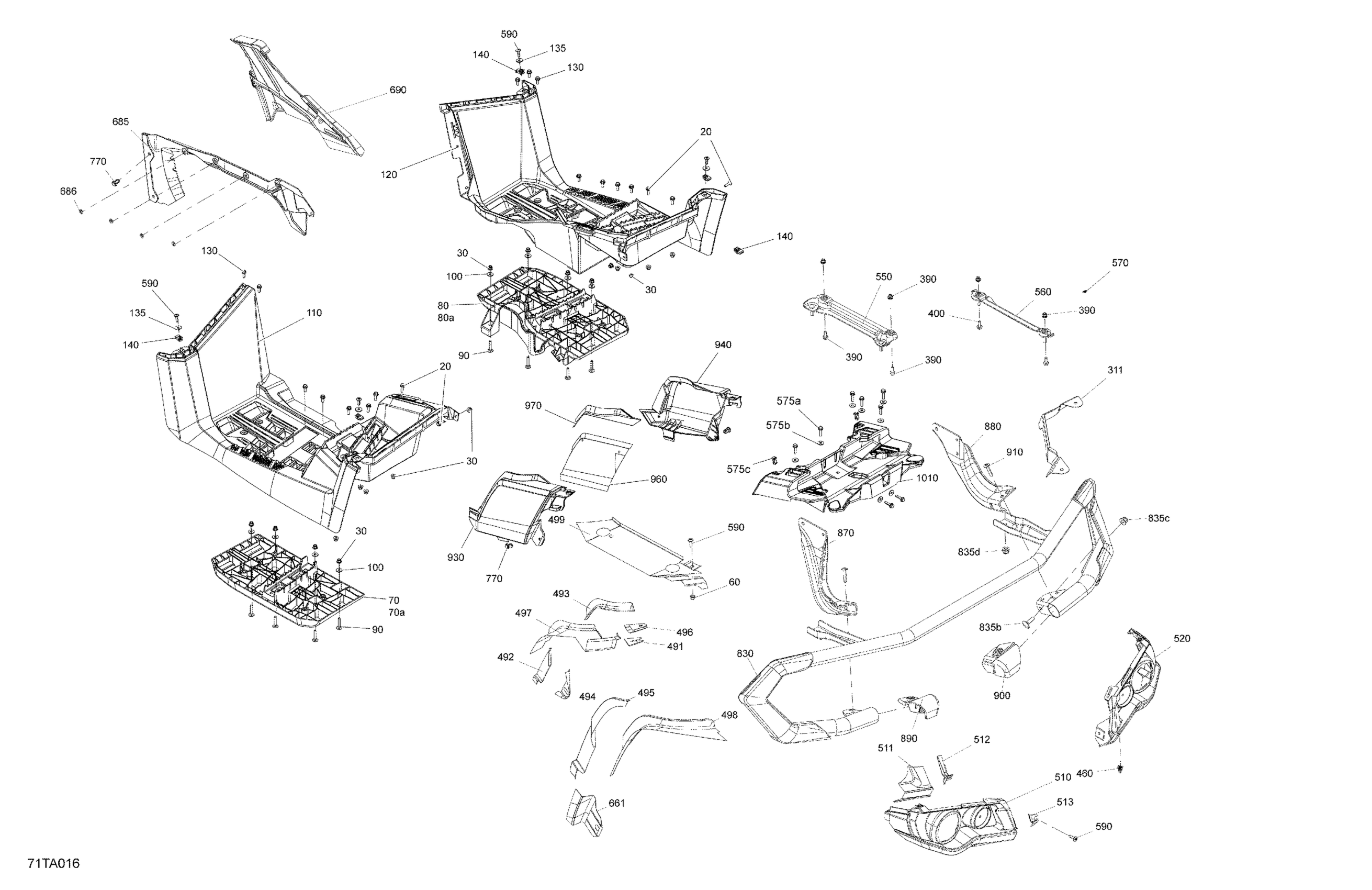

Can-Am 005 - Outlander T MAX 1000 EFI - XTP - T Regulation, 2021 07- Body - Rear Section Diagram
#
20
Hex. Flange Screw M6 X 20
207662054
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
70
LH Structural Footboard
705011540
Unavailable
70a
Square Nut M6
232862412
Unavailable
80
RH Structural Footboard
705011542
Unavailable
80a
Square Nut M6
232862412
Unavailable
90
Carriage Bolt M6 X 35
207763554
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
110
LH Footrest Max
705003525
Unavailable
120
RH Footrest Max
705003521
Unavailable
130
Hex. Flange Screw M6 X 20
207662054
Unavailable
135
Flat Washer
224061201
Unavailable
140
Panel Nut M6 X 1.0
250100198
Unavailable
311
ESD Bracket
705013222
Unavailable
390
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
400
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
460
Edge Clip
517302785
Unavailable
491
Heat Shield
707002456
Unavailable
492
Heat Shield
707002457
Unavailable
493
Heat Shield
707002458
Unavailable
494
Heat Shield
707002459
Unavailable
495
Heat Shield
707002460
Unavailable
496
Heat Shield
707002461
Unavailable
497
Heat Shield
707002462
Unavailable
498
Heat Shield
707002583
Unavailable
499
Heat Shield
707002464
Unavailable
510
LH Rear Facia | Europe
705006651
Unavailable
511
Heat Shield
707002103
Unavailable
512
Heat Shield
707002107
Unavailable
513
Heat Shield
707002594
Unavailable
520
RH Rear Facia | Europe
705006652
Unavailable
550
LH Support
705007277
Unavailable
560
RH Support
705007278
Unavailable
575a
Hex Flange Screw M6 X 25
250000841
Unavailable
575b
Stainless Steel Flat Washer
234062670
Unavailable
575c
Tuflok Plastic Rivet
293150230
Unavailable
570
Push Nut
732610072
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
661
Heat Shield
707002467
Unavailable
685
Deflector Body Panel
705014061
Unavailable
686
Push Nut
732610072
Unavailable
690
Engine Cover
705003444
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
830
Rear Bumper
715004920
Unavailable
910
Stainless, Torx Screw M6 X 30
250000842
Unavailable
835b
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
835c
Flange Elastic Nut M6
233261434
Unavailable
835d
Hex. Flange Elastic Nut M8
233281434
Unavailable
890
LH Bracket | XT
705005094
Unavailable
900
RH Bracket | XT
705005095
Unavailable
870
LH Rear Bracket | XT
705008164
Unavailable
880
RH Rear Bracket | XT
705008165
Unavailable
930
LH Extension Panel
715001897
Unavailable
940
RH Extension Panel
705004348
Unavailable
960
Heat Shield
705006870
Unavailable
970
Heat Shield
705006871
Unavailable
1010
Seat Holder
705007948
Unavailable
