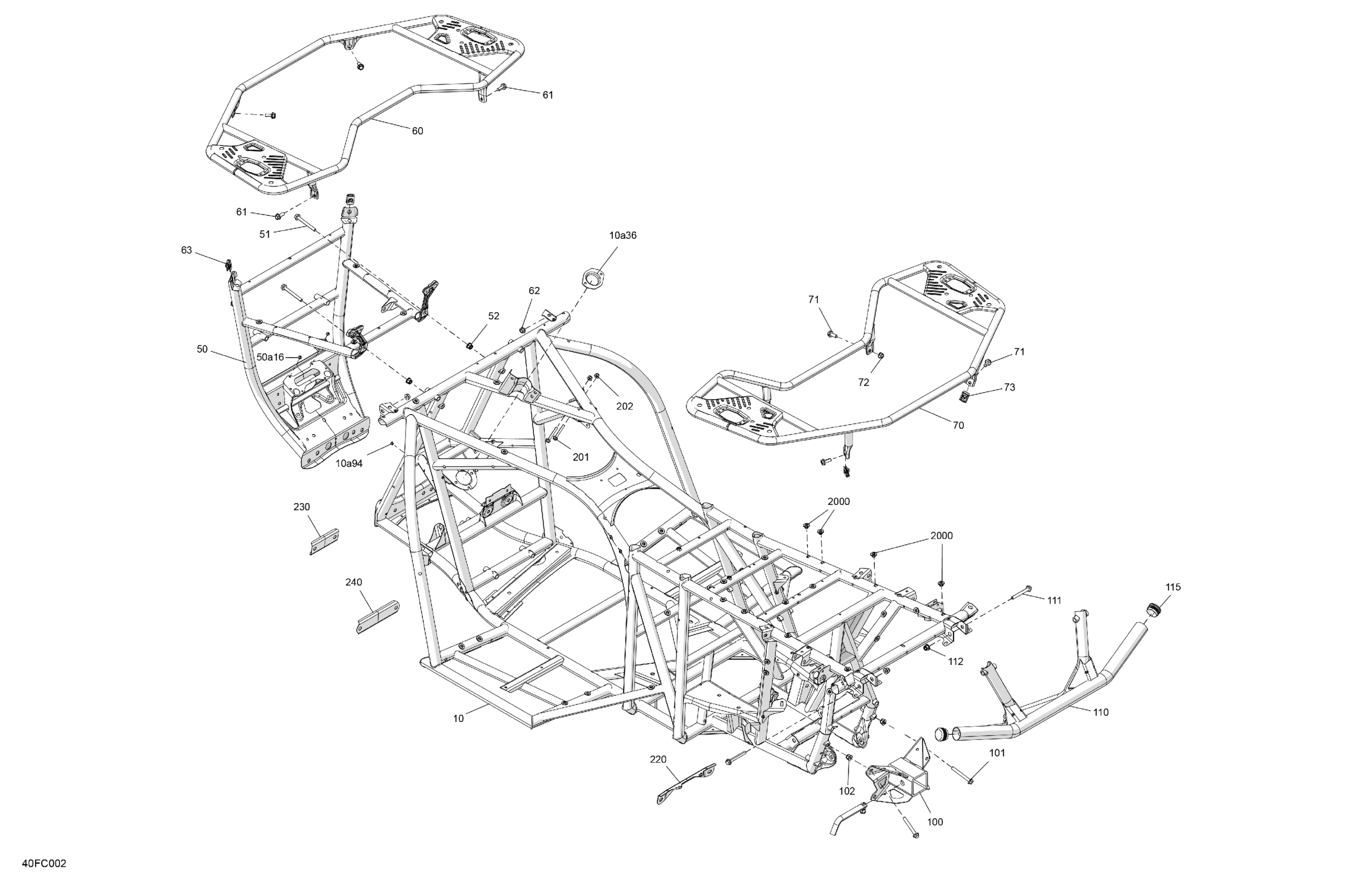

Can-Am Outlander MAX XT 700 - CE, 2023 Frame - System Diagram

Chassis Ass'y | Includes 10 to 10a94 This part replaces 705211693.

715010299

$2,399.99

Lower Bearing Support

709402713

$39.52

Pop Rivet 3/16"

390402200

$0.30

Front Bumper | Includes 50 to 50a16

705208429

$246.24

Pop Rivet 3/16"

390402200

$0.30

Hex. Flange Screw M8 X 70

207687044

$7.01

Hex. Flange Elastic Nut M8

233281414

$1.31

Deep Black, Front Luggage Rack

705208148

$246.24

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Nut M8

233181414

$1.04

Panel Nut M8 X 1.25

250100236

$3.94

Deep Black, Rear Luggage Rack

705208247

$231.31

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Nut M8

233181414

$1.04

Panel Nut M8 X 1.25

250100236

$3.94

Trailer Hitch Kit

715009558

$122.99

Hex. Flange Screw, M8 X 65

207686544

$11.18

Hex. Flange Elastic Nut M8

233281414

$1.31

Deep Black, Rear Bumper

705209181

Unavailable

Hex. Flange Screw, M8 X 65

207686544

$11.18

Hex. Flange Elastic Nut M8

233281414

$1.31

Cap

705202455

$4.27

Hex. Flange Screw M6 X 45

207664544

$1.22

Hex. Flange Elastic Nut M6

233261466

$1.91

Rear Suspension Arm Reinforcement

705209026

$4.76

Upper Front Suspension Arm Reinforcement

705209029

$4.91

Front Lower Suspension Arm Reinforcement

705211664

$4.91

Threaded Insert

293450383

$2.03
