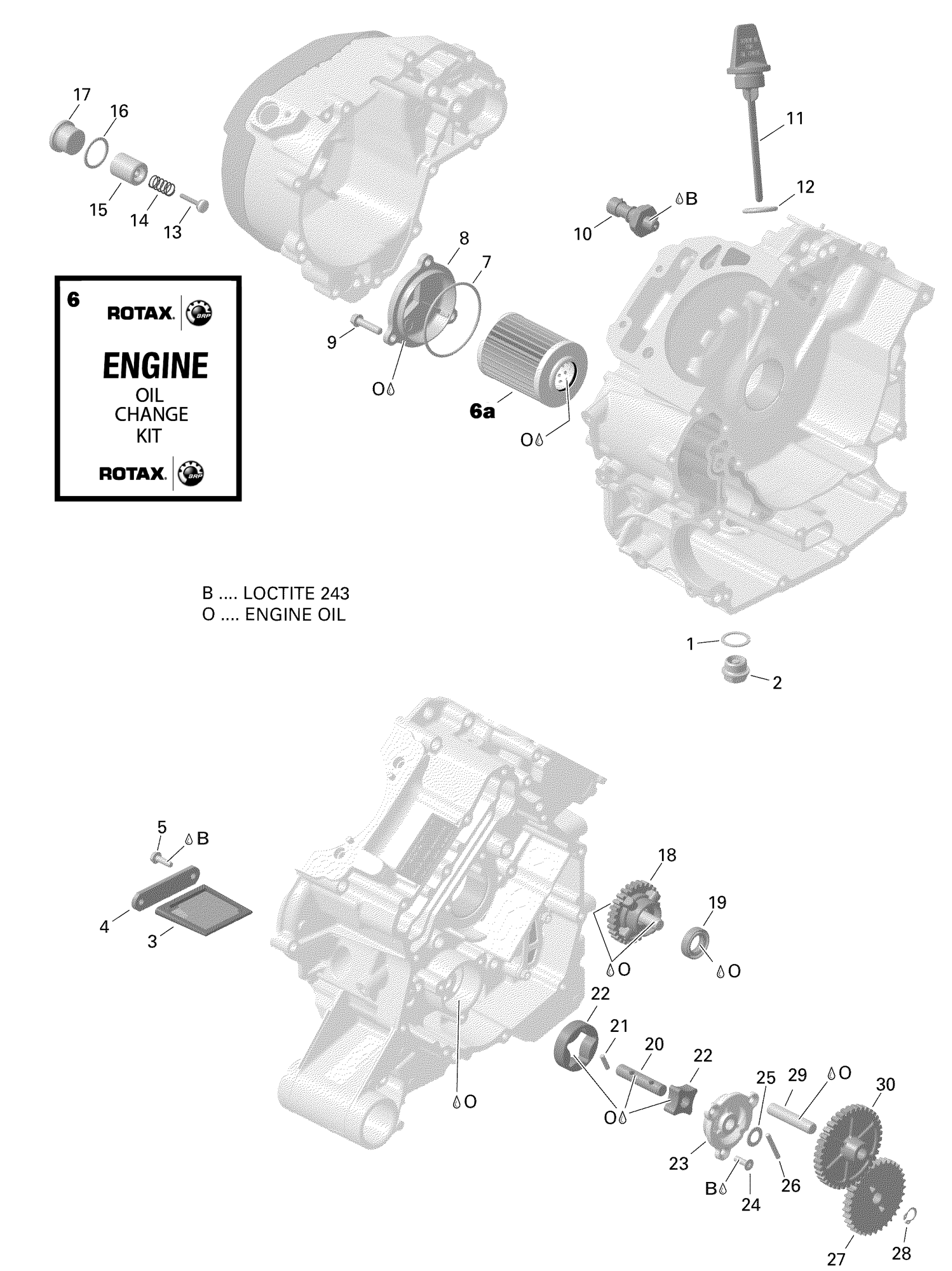

Can-Am Outlander 650 EFI - STD_DPS_XT_Mossy Oak Edition - 2021 Rotax - Engine Lubrication Version 1 Diagram

#

Description
Price

1

Copper Washer

420250640

$0.81

2

Plug screw

420841924

$13.58

3

Oil Sieve

420256322

$27.66

4

Cover Sieve

420210661

$13.58

5

Taptite Screw M5 X 16

420941928

Unavailable

6

4T 10W-50 Synthetic Oil Change Kit for Rotax 500 cc or more V-Twin engine

9779252

$60.42

6

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$58.47

6

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$60.42

6a

Oil Filter

420256188

$11.14

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

$2.68

10

Oil Pressure Switch

420256915

$38.43

11

Oil Dipstick

420256802

$16.89

12

O-Ring

420631640

$2.06

13

Pressure Relief Valve

420656370

$16.89

14

Compression Spring

420939485

$11.98

15

Housing

420256487

$7.23

16

Gasket Ring

420650465

$11.52

17

Plug Screw

420640271

$13.29

18

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$86.89

19

Oil Seal

420430555

$17.66

20

Oil Pump Shaft

420237059

$28.43

21

Needle Pin

420232731

$1.56

22

Oil Pump Rotor

420256348

$61.72

23

Oil Pump Cover

420210646

$46.89

24

Torx Head Screw M5 X 16

420640823

$1.85

25

Thrust Washer

420827590

$3.86

26

Needle Pin

420232431

$3.67

27

Oil Pump Gear, 33 Teeth

420434320

$13.29

28

Circlip

504152282

$3.11

29

Idle Gear, 38 Teeth

420434300

$13.29

30

Not Available As Spare Parts

XXX

Unavailable
