Description

Price

200

Electric Harness

710006172

$989.99

BN1

Terminal

710000913

$5.61

BN2

Open Barrel Terminal

278001392

$4.79

BP1

Open Barrel Terminal

278001392

$4.79

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

Plug

515175812

$2.19

CI

Female Housing

710000399

$16.49

CI

Wire Seal

515175803

$2.99

CI

Female Terminal

710001131

$8.89

D2

Diode

409012700

$11.12

DB

Female Housing 6 Circuits

710002706

$20.49

DB

Lock

710002705

$4.44

DB

Plug

710005437

$3.17

DB

Female Terminal

710005438

$4.29

DB

Female Terminal

710005439

$4.44

DC1

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_C

Male Housing, 2 Circuits

710000667

$8.32

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal | PACKARD 12191221

710001860

$2.24

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

F12

Little Fuse, 20 Amperes

710000746

$8.49

F3

Fuse

710001613

$8.79

F4

Little Fuse, 10 Amperes

710000744

$8.79

F5

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 10 Amperes

710000744

$8.79

F9

Little Fuse, 20 Amperes

710000746

$8.49

FL-1

Wire-Fuse 31-40 AMP | VOIR 715002536

715003119

$26.49

FL-2

Wire-Fuse 31-40 AMP | VOIR 715002536

715003119

$26.49

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

710001340

$5.89

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Female Terminal

710003896

$2.19

FT

Clip Bracket Connector (edge)

409210100

$2.09

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIC1

Housing

710001226

$13.49

HIC1

Lock

710001222

$2.09

HIC1

Cap

710001225

$9.19

HIC1

Seal

710001233

$3.19

HIC1

Terminal

710001229

$3.19

HIC2

Housing

710001928

$16.86

HIC2

Lock

710001222

$2.09

HIC2

Cap

710001225

$9.19

HIC2

Seal

710001233

$3.19

HIC2

Seal Wire

710001332

$3.28

HIC2

Terminal

710001229

$3.19

HIC2

Terminal

710001228

$3.28

HL_L

Female Housing

710004010

$6.79

HL_L

Headlamp Protector Cap

710004020

$11.49

HL_L

Terminal

515177217

$15.79

HL_R

Female Housing

710004010

$6.79

HL_R

Headlamp Protector Cap

710004020

$11.49

HL_R

Terminal

515177217

$15.79

KEY

Male Housing, 6 Circuits

710000849

$9.69

KEY

Lock

710000848

$3.19

KEY

Terminal | Canada/Usa

710001635

$3.19

KEY

Female Terminal

710006126

$4.23

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG1

Cap

710000080

$8.29

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal

409011300

$5.93

MG2

Female Housing, 6 Circuits

710000081

$8.79

MG2

Cap

710000080

$8.29

MG2

Wire Seal

710000402

$4.55

MG2

Seal

409012300

$4.54

MG2

Female Terminal

409012100

$4.55

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

515177009

$5.89

PF1

Female Terminal

515177012

$5.39

PF1_C

Fuse Cover

710001026

$21.99

PF1_C

Fuse Shematic Decal

710003976

$0.01

PF1_C

Foam

278002172

$5.89

PF1_C

Little Fuse, 10 Amperes

710000744

$8.79

PF1_C

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Clip

710000992

$4.29

PF2

Fuse Holder Cap

278001326

$7.69

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000113

$6.99

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Seal

710000881

$17.99

REG

Female Terminal

710000877

$9.12

RL

Female Housing, 3 Circuits

515175495

$16.18

RL

Female Terminal

710003896

$2.19

RSS

Female Housing, 6 Circuits

710000081

$8.79

RSS

Cap

710000080

$8.29

RSS

Wire Seal

710000402

$4.55

RSS

Female Terminal

409012100

$4.55

RY1

Relay

715900824

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay, 30 AMP

515176774

$21.99

RY4

Relay

715900824

$21.99

RY8

Relay

715900824

$21.99

SS

Female Terminal

409010300

$4.39

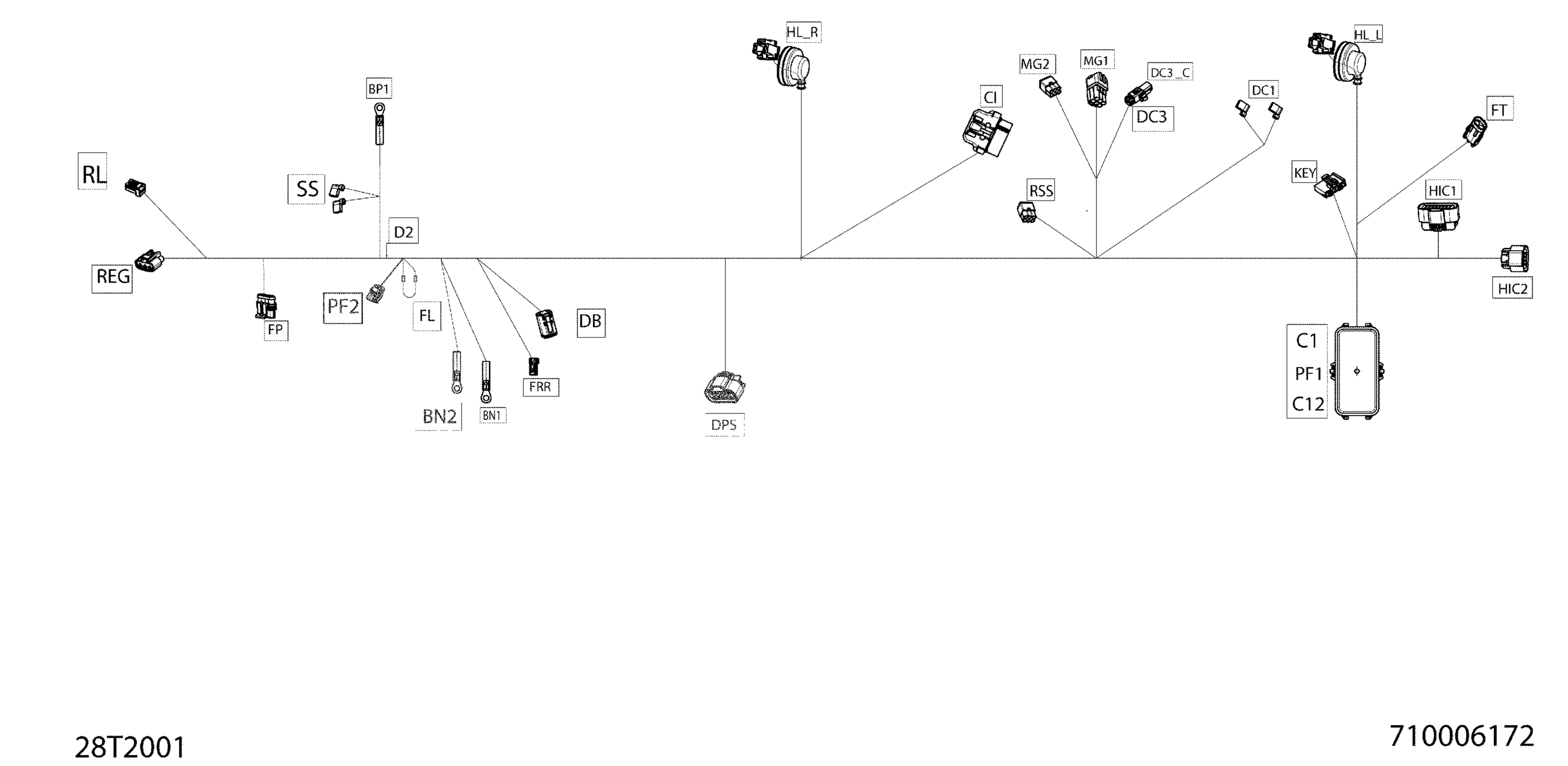

Can-Am Outlander MAX 570 EFI - 2020 Main Harness - 710006172 - DPS - XT Diagram
