10- Electrical System

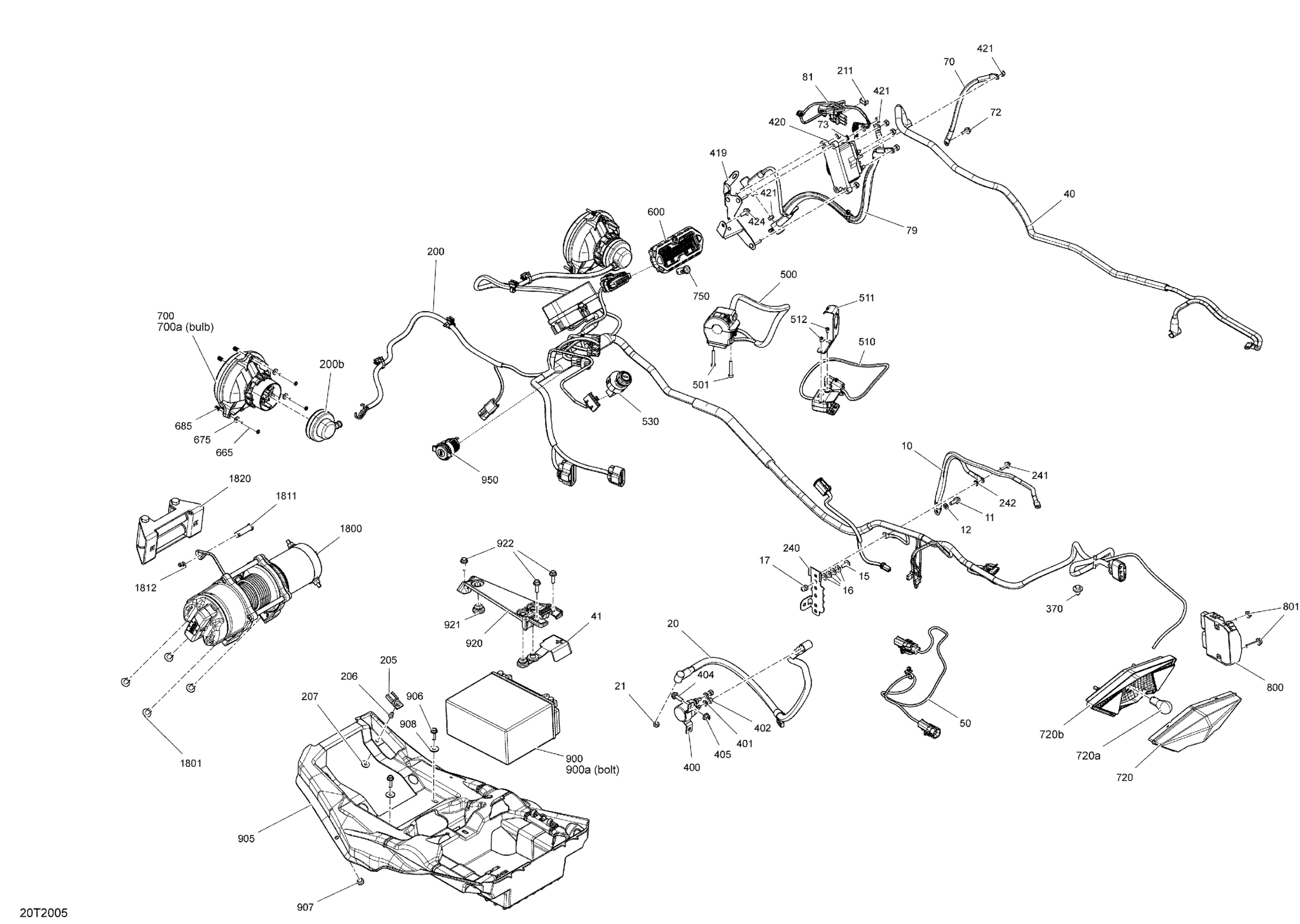

Can-Am 005 - Outlander MAX 570 EFI - North America, 2020 10- Electrical System Diagram
#
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561414
Unavailable
40
Connector Ass'y
710004375
Unavailable
40
Positive Cable
710004376
Unavailable
41
Battery Cable Cap
710006729
Unavailable
50
Extension Cable 02 Sensor
710005819
Unavailable
70
Negative Cable
710005163
Unavailable
72
Hex. Flange Screw M6 X 16
210261640
Unavailable
73
External Serrated Lock Washer 6 mm
234461608
Unavailable
79
Winch Cable | Model With Winch
710005164
Unavailable
81
Winch Cable
710005246
Unavailable
200
Electric Harness
710006172
Unavailable
200
Harness Ass'y
710006173
Unavailable
200a
Fuse Shematic Decal
710003976
Unavailable
200b
Headlamp Protector Cap
710004020
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
211
Clip
710000992
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
370
Mount Dart
293730040
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561414
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
419
Module Support
710004935
Unavailable
420
Winch Solenoid | XT Models
710001000
Unavailable
421
Elastic Stop Nut M6
232561414
Unavailable
424
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
500
Multi-Function Handle | Except Model Europe, Except T3
710005072
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
510
Winch Switch
710005241
Unavailable
511
Black Support | Packages - XT, XTP, LTD, XMR Except Europe
710004670
Unavailable
512
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
530
Ignition Switch | Except Model Pro, T3
710007864
Unavailable
600
Speedometer | Includes 600 to 600b
710005553
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
675
Flat Washer
517225900
Unavailable
685
Spring
517168600
Unavailable
700
Low Beam
710003900
Unavailable
700a
Bulb, 12V 35/35W
710000871
Unavailable
720
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
720a
Bulb
520000758
Unavailable
720b
Male Housing, 3 Circuits
515175494
Unavailable
750
Pilot Lamp Cap
710003910
Unavailable
800
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
801
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
1800
WINCH - Call your local BRP dealership | Europe
705008546
Unavailable
1801
Torx Truss Screw M8 X 16
250000746
Unavailable
1811
Clevis Pin
250400021
Unavailable
1812
Cotter Pin
250400022
Unavailable
1820
Fairlead_Roller Kit
715007699
Unavailable
