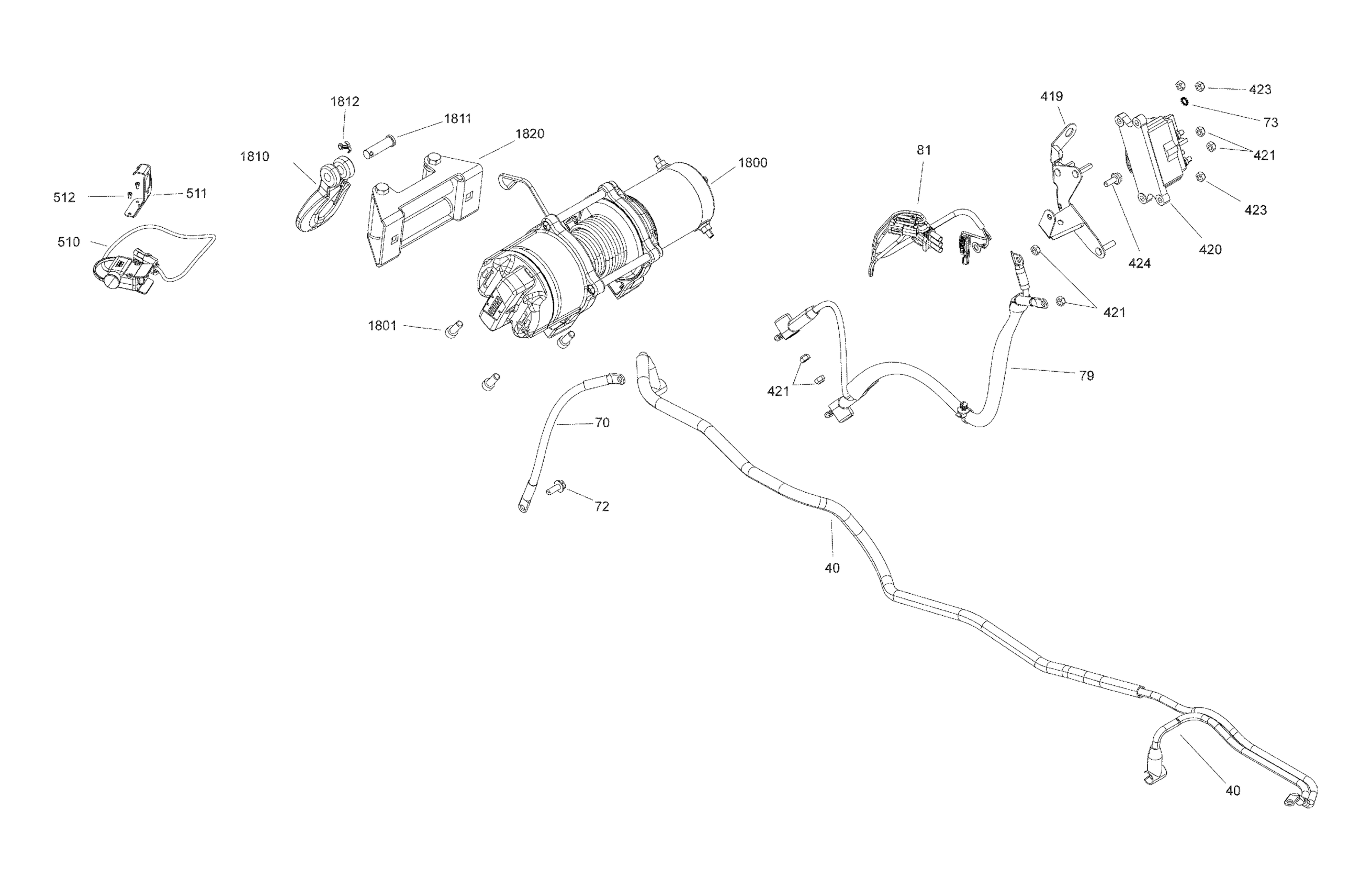

Can-Am Outlander MAX 570 EFI - DPS_XT - T3, 2019 Electrical - Winch Diagram

Connector Ass'y

710004375

$32.28

Negative Cable

710005163

$36.89

Hex. Flange Screw M6 X 16

210261640

$1.74

External Serrated Lock Washer 6 mm

234461608

$0.92

Winch Cable | Model With Winch

710005164

$50.74

Winch Cable

710005246

$41.51

Module Support

710004935

$19.20

Winch Solenoid | XT Models

710001000

$117.66

Elastic Stop Nut M6

232561414

$1.55

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Winch Switch

710005241

$161.51

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$9.11

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Torx Truss Screw M8 X 16

250000746

$2.78

Lock Washer 8 mm

234181401

$0.89

Winch Hook Kit

705014949

$27.66

Clevis Pin

250400021

$11.83

Cotter Pin

250400022

$8.66

Fairlead_Roller Kit

715007699

$78.43
