Description

Price

10

Rear Propeller Shaft Ass'y Kit

703500933

$259.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Fixe Yoke

715900439

$24.99

10e

Fixe Yoke

715900439

$24.99

15

Wear Ring | 4X4

705400036

$26.49

30

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

30c

Pinion 10 Teeth

705502053

$209.99

30d

Gear 36 Teeth

705502682

$189.99

30h

Needle Bearing

705502058

$49.99

30j

Nut

705502059

$32.99

30k

Differential Shim 0.02 mm

705502060

$13.76

30m

Pinion Gear Shim 1.67 mm

705502061

$18.99

30n

Oil Seal

705501556

$17.99

30p

Oil Seal

705502062

$23.49

30q

Plug Drain

705501724

$5.95

30r

Screw

705502063

$3.24

30s

Breather Tube

705501584

$14.99

30t

Seal

705502064

$8.47

30u

O-Ring

705502065

$5.95

30v

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

30w

Flat Washer M10 | 4X4

250200014

$1.49

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub Ass'y

705501716

$105.99

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230e

Oetiker Clamp

715900282

$5.29

230f

Oetiker Clamp, Small

715900283

$5.29

230g

Boot Kit, Differential Side

705401346

$42.49

230h

Oetiker Clamp, Large

715900284

$5.29

230j

Oetiker Clamp, Small

715900261

$5.29

230

LH Half Shaft Ass'y

705501898

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230e

Oetiker Clamp

715900282

$5.29

230f

Oetiker Clamp, Small

715900283

$5.29

230g

Boot Kit, Differential Side

705401346

$42.49

230h

Oetiker Clamp, Large

715900284

$5.29

230j

Oetiker Clamp, Small

715900261

$5.29

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

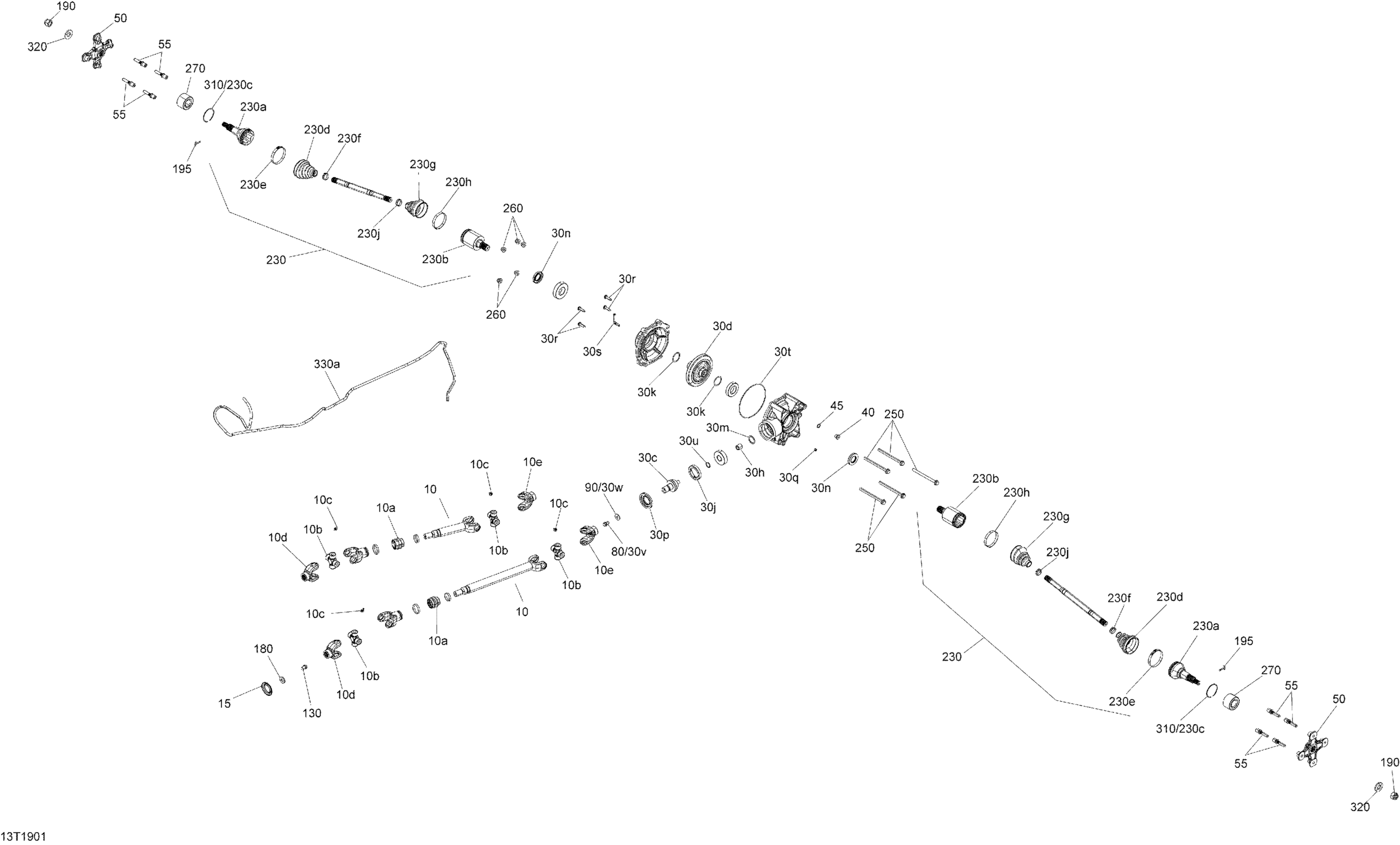

Can-Am Outlander MAX 450 EFI - 2019 Rear Drive - 450 EFI Diagram

Rear Propeller Shaft Ass'y Kit

Rubber Boot

Universal Joint Ass'y | T3

Grease Fitting | T3

Fixe Yoke

Fixe Yoke

Wear Ring | 4X4

Final Drive Unit | Includes 30 to 30u

Pinion 10 Teeth

Gear 36 Teeth

Needle Bearing

Nut

Differential Shim 0.02 mm

Pinion Gear Shim 1.67 mm

Oil Seal

Oil Seal

Plug Drain

Screw

Breather Tube

Seal

O-Ring

Hex. Flange Screw M10 X 16 S.GRIP

Flat Washer M10 | 4X4

Fill Level Plug | 4X4

Copper Washer | 4X4

Wheel Hub Ass'y

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

Hex. Flange Screw M10 X 16 S.GRIP

Flat Washer M10 | 4X4

Hex Flange Screw M12 X 16

Conical Spring Washer M12

Hex. Flange Castellated Nut M18

Cotter Pin

RH Half Shaft Ass'y

CV Joint

Plunging Joint

Circlip

Boot Kit, Wheel Side

Oetiker Clamp

Oetiker Clamp, Small

Boot Kit, Differential Side

Oetiker Clamp, Large

Oetiker Clamp, Small

LH Half Shaft Ass'y

CV Joint

Plunging Joint

Circlip

Boot Kit, Wheel Side

Oetiker Clamp

Oetiker Clamp, Small

Boot Kit, Differential Side

Oetiker Clamp, Large

Oetiker Clamp, Small

Hex. Flange Screw M10 X 135

Hex. Flange Elastic Nut M10

Ball Bearing

Circlip

Conical Spring Washer M18

Polyurethane Hose 4000MM Long | Includes 250 to 250a
