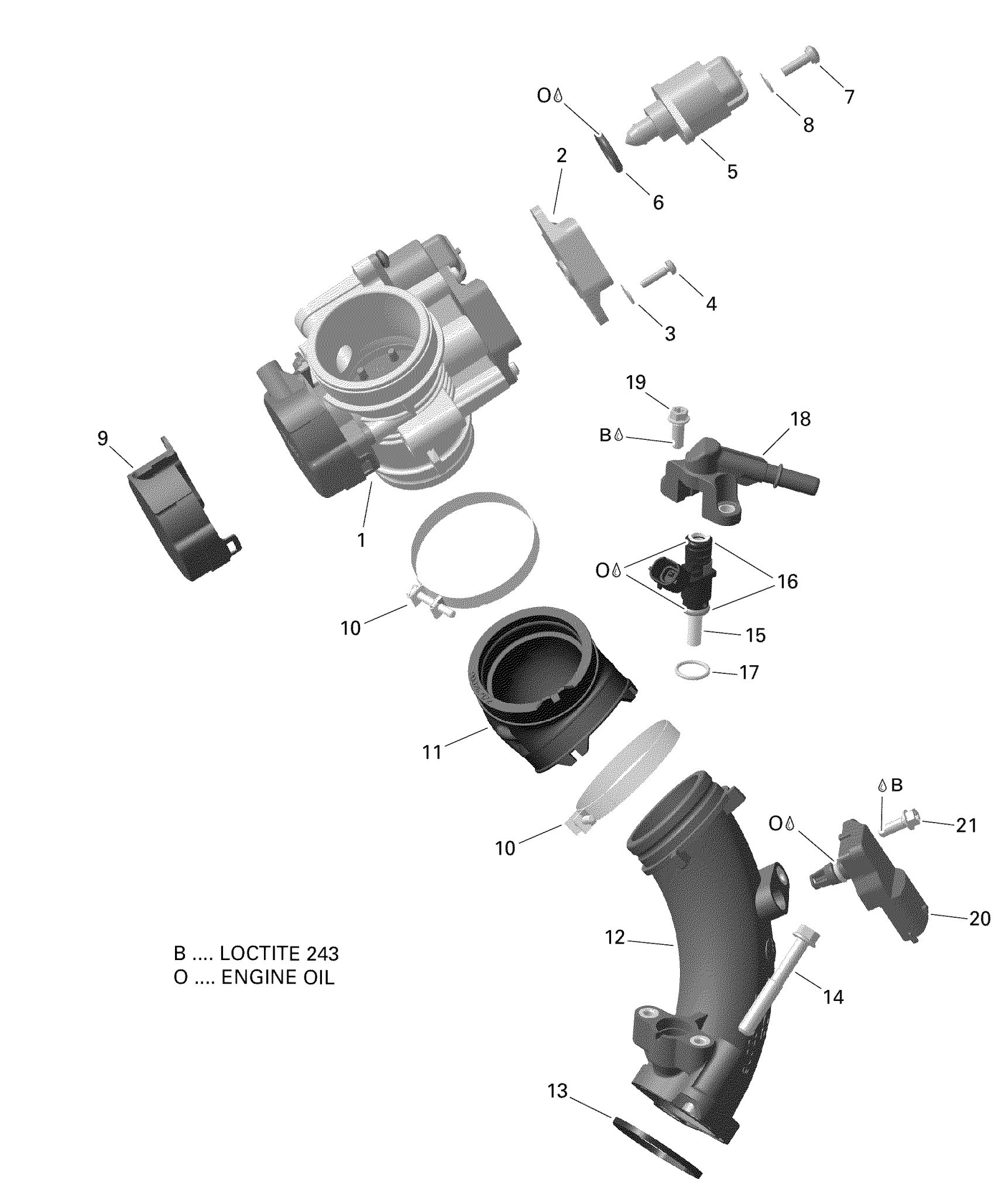

Can-Am Outlander 450 EFI - 2019 Air Intake Manifold And Throttle Body Except T3 Diagram

Description

Price

1>9

Throttle Body Ass'y | Includes 8 to 16

420685326

$659.67

Position Sensor

420866120

$89.52

Flat Washer 4 mm, Stainless

234042600

$1.06

Phillips Screw M4 X 16

208641660

$0.85

Idle Air Control Valve

420665941

$169.37

O-Ring

420631780

$4.15

Snap Ring

420845710

$3.88

Binding Head Screw M5 X 16

420440911

$13.18

Cover Kit

420281540

$19.37

Clamp

420251480

$13.18

Intake Neck

420267172

$17.13

Intake Adaptor

420267527

$41.76

Gasket

420630642

$5.06

Torx Flange Screw M8 X 55

420641213

$7.01

15>17

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

O-Ring

420631220

$13.18

O-Ring

420631296

$0.72

Fuel Rail

420874905

$26.09

Torx Flange Screw M6 X 16

420440164

$1.67

Pressure And Temperature Sensor

707000995

$81.31

Torx Flange Screw M6 X 16

420440164

$1.67
