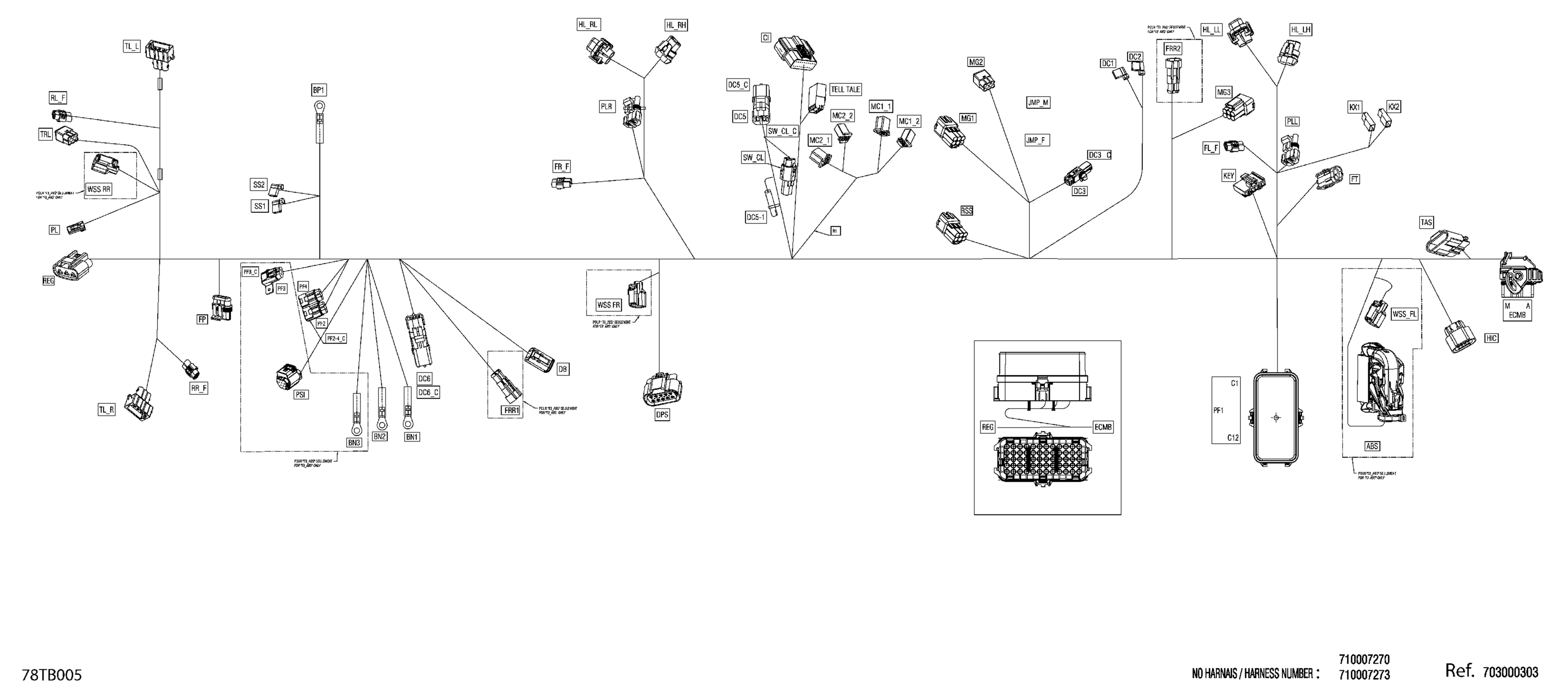

Can-Am Outlander MAX 1000R EFI - XT - 2022 Electric - Main Harness - 710007270 - Model EPA (CARB Complient) Diagram

#

Description
Price

200

Main Wiring Harness

710007270

$929.99

BN1

Terminal

710000913

$5.61

BN2

Open Barrel Terminal

278001392

$4.79

BP1

Open Barrel Terminal

278001392

$4.79

Cl

Female Housing 20 Circuits

278002858

$22.49

Cl

Sealing Cap

278002860

$1.79

Cl

Female Terminal

515178018

$1.19

D2

Diode

409012700

$11.12

D5

Diode

409012700

$11.12

D6

Diode

409012700

$11.12

DB

Female Housing 6 Circuits

710002706

$20.49

DB

Lock

710002705

$4.44

DB

Female Terminal

710005438

$4.29

DB

Female Terminal

710005439

$4.44

DC1

Female Terminal

409010300

$4.39

DC2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_C

Male Housing, 2 Circuits

710000667

$8.32

DC5

Male Connector, 2 Circuits

278000220

$15.49

DC5

Wire Seal

278001065

$7.69

DC5

Female Terminal

278000223

$3.19

DC5_1

Insulated Sheath

278001007

$3.58

DC5_1

Female Terminal

710000421

$6.11

DC5_C

Clip

710000992

$4.29

DC5_C

Female Housing, 2 Circuits

278000217

$9.59

DC5_C

Wire Seal

278000216

$3.19

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Wire Seal

278001065

$7.69

DC6

Female Terminal

278000223

$3.19

DC6_C

Clip

710000992

$4.29

DC6_C

Female Housing, 2 Circuits

278000217

$9.59

DC6_C

Wire Seal

278000216

$3.19

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Terminal

710001873

$2.09

DPS

Female Terminal

278002187

$6.39

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Terminal

710001728

$6.79

ECMB

Female Terminal

710001727

$3.19

F1

Little Fuse, 10 Amperes

710000744

$8.79

F12

Fuse, 25 Amps

710002590

$19.49

F2

Little Fuse, 30 Amperes

710000747

$8.49

F3

Little Fuse, 20 Amperes

710000746

$8.49

F4

Little Fuse, 20 Amperes

710000746

$8.49

F5

Little Fuse, 10 Amperes

710000744

$8.79

F6

Little Fuse, 10 Amperes

710000744

$8.79

F7

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 10 Amperes

710000744

$8.79

F9

Little Fuse, 10 Amperes

710000744

$8.79

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FRR1

Female Housing, 2 Circuits

515175658

$16.18

FRR1

Female Terminal

710003896

$2.19

FT

Clip Bracket Connector (edge)

409210100

$2.09

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIC

Housing

710001928

$16.86

HIC

Lock

710001222

$2.09

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HL_LH

Housing

710002278

$7.39

HL_LH

Lock

710002279

$4.39

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$1.04

HL_LL

Housing

710002578

$3.19

HL_LL

Lock

710002584

$4.39

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$1.04

HL_RH

Housing

710002278

$7.39

HL_RH

Lock

710002279

$4.39

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$1.04

HL_RL

Housing

710002578

$3.19

HL_RL

Lock

710002584

$4.39

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$1.04

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG1

Wire Seal

710000402

$4.55

MG1

Seal

409012300

$4.54

MG1

Male Terminal

409011300

$5.93

MG1EX

Connector

710006273

$20.49

MG1EX

Wire Seal

710000402

$4.55

MG1EX

Female Terminal

409012100

$4.55

MG2

Female Housing, 6 Circuits

710000081

$8.79

MG2

Wire Seal

710000402

$4.55

MG2

Seal

409012300

$4.54

MG2

Female Terminal

409012100

$4.55

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

515177009

$5.89

PF1

Female Terminal

515177012

$5.39

PF1_C

Fuse Cover

710001026

$21.99

PF1_C

Logo, Fuse Relay

710006203

$4.09

PF1_C

Foam

278002172

$5.89

PF1_C

Little Fuse, 10 Amperes

710000744

$8.79

PF1_C

Little Fuse, 20 Amperes

710000746

$8.49

PF1_C

Little Fuse, 25 Ampere

278002389

$4.55

PF1_C

Little Fuse, 30 Amperes

710000747

$8.49

PF2

Fuse

710001613

$8.79

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000113

$6.99

PF4

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000357

$7.69

PL

Female Housing, 2 Circuits

515175658

$16.18

PL

Female Terminal

710003896

$2.19

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710001932

$3.27

REG

Terminal

710001934

$5.50

RFID

Housing

710001161

$11.12

RFID

Lock

710001162

$3.19

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RSS

Male Terminal Housing, 6 Circuits

710000835

$17.04

RSS

Wire Seal

710000402

$4.55

RSS

Male Terminal

409011300

$5.93

RY1

Relay, 30 AMP

515176774

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

RY5

Relay, 30 AMP

515176774

$21.99

RY6

Relay

715900824

$21.99

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SW_CL

Wire Seal

710000402

$4.55

SW_CL

Male Terminal

409011300

$5.93

SW_CL_C

Female Terminal Housing, 3 Circ.

710000153

$9.95

SW_CL_C

Cap

710000080

$8.29

SW1

Female Terminal

409010700

$5.39

SW2

Female Terminal

409010700

$5.39

SW3

Female Terminal

409010700

$5.39

SW4

Open Barrel

278000992

$2.21

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

278001065

$7.69

SWW

Female Terminal

278000223

$3.19

TAS

Housing

710001231

$13.99

TAS

Lock 6 Positions

710005296

$1.09

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL_L

Connector, 3 Positions

710003167

$9.21

TL_L

Seal

415128501

$1.89

TL_L

Female Terminal

278000998

$4.39

TL_R

Connector, 3 Positions

710003167

$9.21

TL_R

Seal

415128501

$1.89

TL_R

Female Terminal

278000998

$4.39
