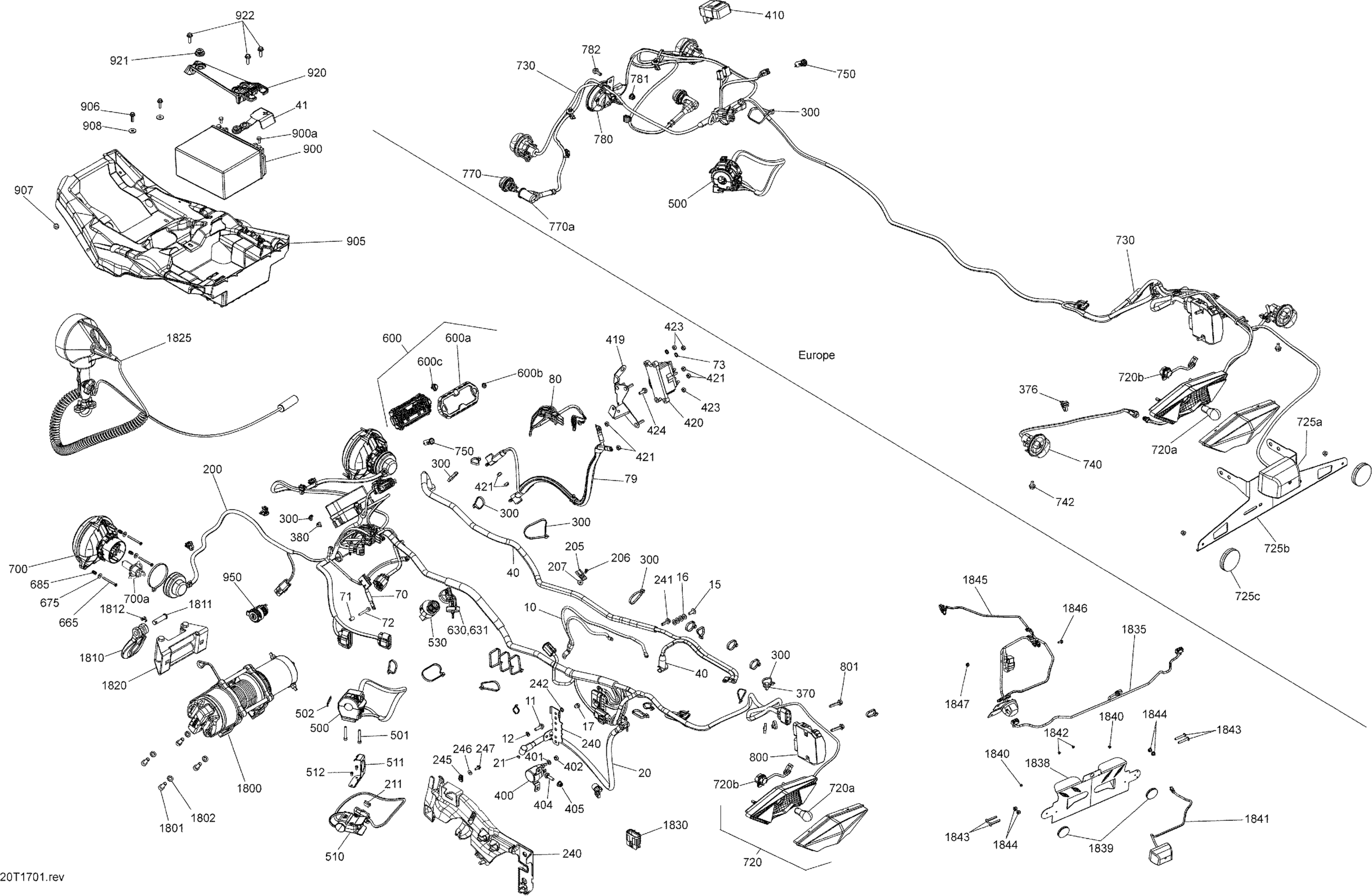

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Electrical System - All Models Diagram

Ground Cable

710004380

$17.88

Ground Cable

710004382

$17.88

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Lock Washer Helical M6

234161601

$0.92

Torx Head Screw M6 X 16

250000717

$1.74

Flat Washer

224061121

$0.44

Domed Nut M6

232361493

$1.77

Positive Cable

710004377

$24.60

Positive Cable | Engine 450

710004381

$17.88

Elastic Stop Nut M6

232561414

$1.55

Connector Ass'y

710004375

$30.57

Positive Cable

710004376

$43.25

Battery Cable Cap

710006729

$6.72

Negative Cable

710005163

$32.06

Sleeve

293900078

$11.81

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.79

External Serrated Lock Washer 6 mm

234461608

$0.92

Winch Cable | Model With Winch

710005164

$48.48

Winch Cable

710005246

$39.52

Tie-Rap 180 mm

414115200

$0.09

Harness Ass'y | Except Model STD North America, Inter

710004898

$886.54

Harness Ass'y | Model STD North America, Inter

710004957

$876.84

Clip

270000141

$8.33

Pop Rivet 3/16"

390402300

$0.73

Washer | DS 650 X

391301600

$0.46

Clip

710000992

$3.88

Cable Bracket

707001280

$11.81

Connector Bracket

710004118

$5.04

Hex. Flange Screw M6 X 20

210262040

$2.00

External Serrated Lock Washer 6 mm

234461608

$0.92

Panel Nut M6 X 1.0

250100198

$1.73

Flat Washer 6 mm

234062410

$0.64

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 94 mm | 4X4

293750001

$0.83

Mount Dart

293730040

$0.86

Tie Wrap 142 mm

293750002

$0.88

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$5.94

Mount Dart

293730040

$0.86

Tie-rap 627 mm

293750041

$0.87

Starter Relay

710007777

$45.49

Lock Washer Helical M6

234161601

$0.92

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flasher Unit

710003239

$73.10

Module Support

710004935

$18.63

Winch Solenoid | XT Models

710001000

$114.15

Elastic Stop Nut M6

232561414

$1.55

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Multi-Function Handle

710004040

$158.93

Multi-Function Handle | Except Model Europe, Except T3

710005072

$58.93

Socket Head Screw M5 X 35

205053588

$1.56

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Switch

710005241

$153.70

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

Switch_Ignition | Model-Europe

710007865

$64.15

Ignition Switch | Except Model Pro, T3

710007864

$79.82

Speedometer

710005087

$354.45

Trim Ring Ass'y

710001183

$17.88

BRP Logo13 mm

704904615

$9.66

Button

715900265

$11.81

Black, Electronic Key

710000817

$53.70

Grey, Electronic Key

710002183

$53.70

Hex. Screw K40 X 45

250000718

$1.74

Flat Washer

517225900

$0.16

Spring

517168600

$6.70

Low Beam

710003900

$101.46

Bulb, 12V 35/35W

710000871

$32.06

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$69.37

Bulb

520000758

$7.49

Male Housing, 3 Circuits

515175494

$14.90

License Plate Light | Europe

710005563

$117.88

Plate Support | Model- Europe

705007449

$24.60

Red Reflector

705011221

$11.96

Wiring Harness Assembly | Includes 1 To RRF

710004331

$117.88

Flasher | Europe

710002964

$34.30

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Pilot Lamp | Model-Europe

710003909

$20.12

Pilot Lamp Cap

710003910

$3.33

Day Light | Europe

710001726

$32.81

Cap Protector | Model-Europe

710003269

$10.12

Horn

710004791

$36.54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16

207661644

$0.61

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Support

710008370

$41.76

Hexagonal Head Screw

210262050

$1.74

Rubber Bumper

293830005

$5.33

Stainless Steel Flat Washer

234062670

$1.74

Retaining Plate

710009129

$7.09

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662054

$0.83

DC Outlet

710001248

$31.17

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Socket Head Screw M8 X 20

205082044

$1.06

Lock Washer 8 mm

234181401

$0.87

Winch Hook Kit

705014949

$23.10

Clevis Pin

250400021

$11.48

Cotter Pin

250400022

$8.40

Fairlead_Roller Kit

715007699

$74.60

Portable Headlamp | Model Hunter

710005423

$174.99

HOUSING ASSEMBLY - Call your local BRP dealership | Model STD Europe, T3

710005347

Unavailable

Rear Light Harness

515178093

Unavailable

License Plate Support

708002040

$29.82

Red Reflector

705011221

$11.96

Flange Elastic Nut M5

233251434

$1.66

License Plate Light | Europe

710005563

$117.88

Flange Elastic Nut M5

233251434

$1.66

Torx Truss Screw M8 X 50

250000761

$6.18

Hex. Flange Elastic Nut M8

233281414

$1.14

Trailer Plug | Model T3

705205993

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
