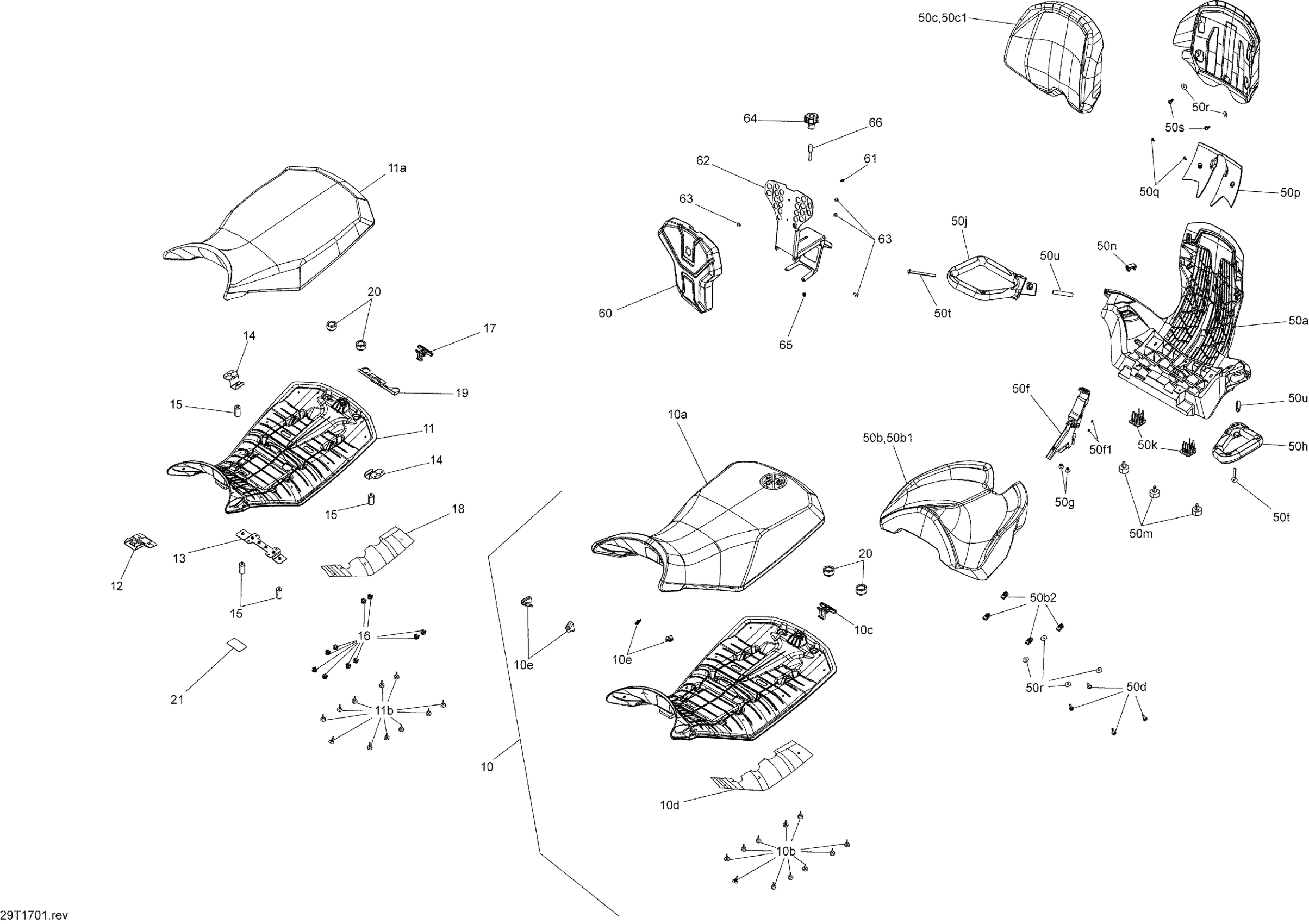

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Seat - All Models Diagram

#

Description
Price

10>10d

Seat Ass'y | Includes 1 to 4

708002491

$332.28

10>10d

Seat Ass'y | Includes 1 to 4

708002491

$332.28

10>10d

Seat Ass'y | Package XMR Red

708002494

$415.35

10>10d

Seat Ass'y | Includes 1 to 4

708002491

$332.28

10>10e

Seat Ass'y | Package PRO

708002493

$415.35

10a

Black, Seat Cover

708000724

$79.99

10a

Black, Seat Cover

708000724

$79.99

10a

Seat Cover | OUT-MAX Black

708001972

$175.35

10a

Seat Cover | Package XMR Red

708001979

$175.35

10a

Black, Seat Cover

708000724

$79.99

10b

Rubber Stopper

708000759

$3.61

10c

Latch

708000909

$5.89

10d

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

10e

Center Seat Corner | Model Pro

708002077

$10.98

10e

RH Seat Corner | Model Pro

269001669

$13.83

10e

LH Seat Corner | Model Pro

269001670

$13.83

11>11b

Seat Ass'y | Model-T3

708002208

Unavailable

11a

Seat Cover | Model T3

605156558

$59.99

11b

Rubber Stopper

708000759

$3.61

12

Front Bottom Support | Model-T3

605456520

Unavailable

13

Support Central Cushion

510005986

Unavailable

14

Support Rear Cushion

510005988

Unavailable

15

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

16

Rivet | Model-T3

293150067

$2.29

17

Latch

708000909

$5.89

18

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

19

Support Rear Seat

705204621

Unavailable

20

Bumper Rubber

708000760

$9.11

21

Decal

605456593

Unavailable

50a

Seat Base

708002574

$235.35

50b>50b2

Rear Seat | MAX Model

708002088

$216.89

50b1

Black, Seat Cover

708001290

$143.05

50b2

Panel Nut M6 X 1.0

250100198

$1.73

50c>50c1

Back Rest

708002085

$489.20

50c1

Back Rest Cover

708001841

$115.35

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

50f>50f1

Latch

708001532

$64.58

50f1

Flat Washer M5

234051410

$0.44

50g

Pop Rivet 3/16”

293150108

$1.23

50h

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$64.58

50j

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$64.58

50k

Seat Support

708001483

$2.98

50m

Rubber Stopper

708000758

$9.37

50n

Insert

708001511

$3.85

50p

Cap

708001512

$12.68

50q

Torx Truss Screw K40 X 12

250000577

$1.74

50r

Flat Washer

224060201

$1.15

50s

Oval Head Torx Screw K60 X 16

250000546

$1.74

50t

Torx Truss M8 X 90

250000806

$6.15

50u

Sleeve

705009248

$14.75

60

Backrest | Model-T3

708001794

Unavailable

61

Rubber

605454799

Unavailable

62

Support

705205026

Unavailable

63

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.92

64

BACK REST FIXING BODY PAINT - Call your local BRP dealership

708002039

$75.35

65

Handle M8 X 35 | Model-T3

510003533

$43.05

66

Bushing | Model T3

708002169

Unavailable
