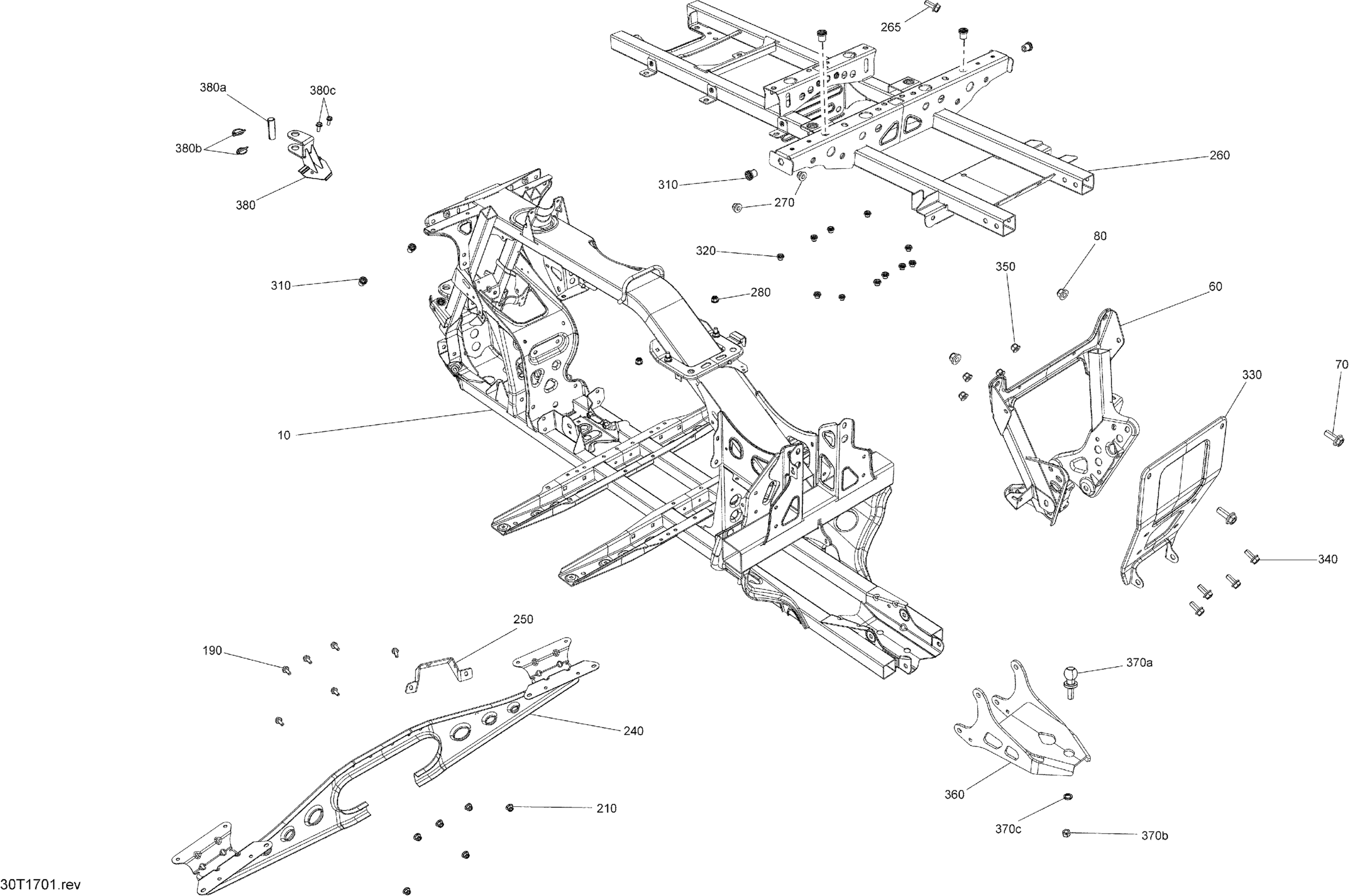

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Frame - All Models Diagram

#

Description
Price

10

Black Frame | Outlander

705206365

$1,049.99

10

Black Frame | Outlander Max

705206363

$1,049.99

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$1.74

80

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M6 X 16

207661644

$0.61

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

240

Footrest Support

705210817

$79.99

250

Master Cylinder Bracket

705203874

$11.49

260

Black, Frame Extension

705203362

$159.99

260

Chassis Extension

705210820

$124.99

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Threaded Insert M6 X 1.0

250100242

$2.54

330

Rear Support

705203541

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25

360

Black Trailer Hitch Kit

715001925

$64.58

370a

Coupling Ball Ass'y

705204974

$114.58

370b

Elastic Flange Nut M20

250100104

$9.71

370c

LOCK WASHER - Call your local BRP dealership

250200161

Unavailable

380

Front Coupling Device

705204970

$59.20

380

Front Coupling device | T3 Package XT

705206484

Unavailable

380a

Pin

605456511

Unavailable

380b

Pin

605456518

$3.92

380c

Hex. Flange Screw M8 X 20

207682046

$1.82
