Description

Price

15

LH Lower Suspension Arm

706204639

$156.89

15

Black, RH Lower Arm

706202870

$156.89

20

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

50

Hex. Flange Screw M10 X 70

207607046

$2.91

55

Ball Joint

706202045

$35.35

56

Ball Joint

706202044

$35.35

60

Hex. Flange Elastic Nut M10

233201436

$1.74

65

Front Suspension Cross Plate

706200998

$4.91

70

RH Upper Suspension Arm

706204642

$156.89

70

LH Upper Suspension Arm

706204641

$156.89

80

Grease Fitting

408200700

$2.80

85

Grease Fitting 90°

293550056

$1.37

120

Hex. Flange Screw M10 X 55

207605546

$1.74

125

Hex. Flange Elastic Nut M10

233201436

$1.74

130a

Front Shock

706201163

$153.05

130a

Front Shock

706201170

$175.35

130a

Front Shock | Package XMR, Built Dec 2015 and up

706202499

$175.35

130b

BLACK SPRING - Call your local BRP dealership

706201814

$87.66

130b

Deep Black, Compression Spring

706205113

$115.35

130b

Black, Spring | Model Pro, Hunter

706202394

$119.97

130b

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Model XMR

706202576

Unavailable

130c

Adjuster Ring

706002356

$17.66

130c

Adjustment Cam

505073625

$12.18

130d

Spring Stopper

706200881

$10.30

130e

Cap

706200785

$4.42

130f

Spring Guide

503187500

$7.37

160

LH Joint Protector

706202808

$9.29

160

RH Joint Protector

706202809

$9.29

180

Torx Screw M6 X 16

250000755

$0.72

190

Hex. Flange Elastic Nut M6

233261494

$1.26

195

Stainless Steel Flat Washer

234062670

$1.74

230

Circlip

293370035

$2.55

236

Upper Front Holder

705203247

$14.37

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

242

Hex. Flange Screw M10 X 60

207606044

$2.78

243

Hex. Flange Elastic Nut M10

233201434

$1.63

250

Cotter Pin

211400017

$0.25

280

Hex. Flange Screw M8 X 25

207682534

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14

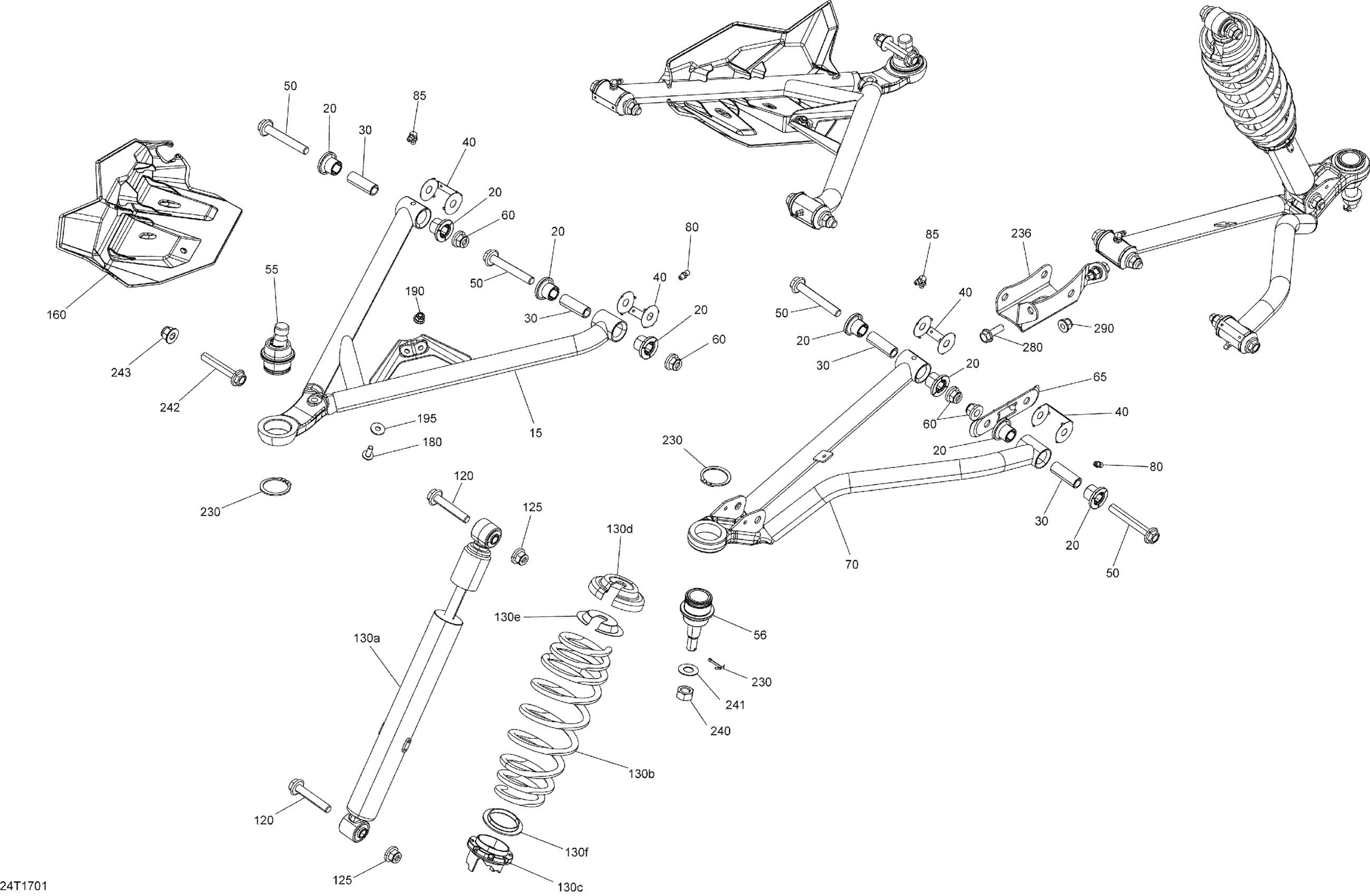

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Front Suspension - All Models Diagram
