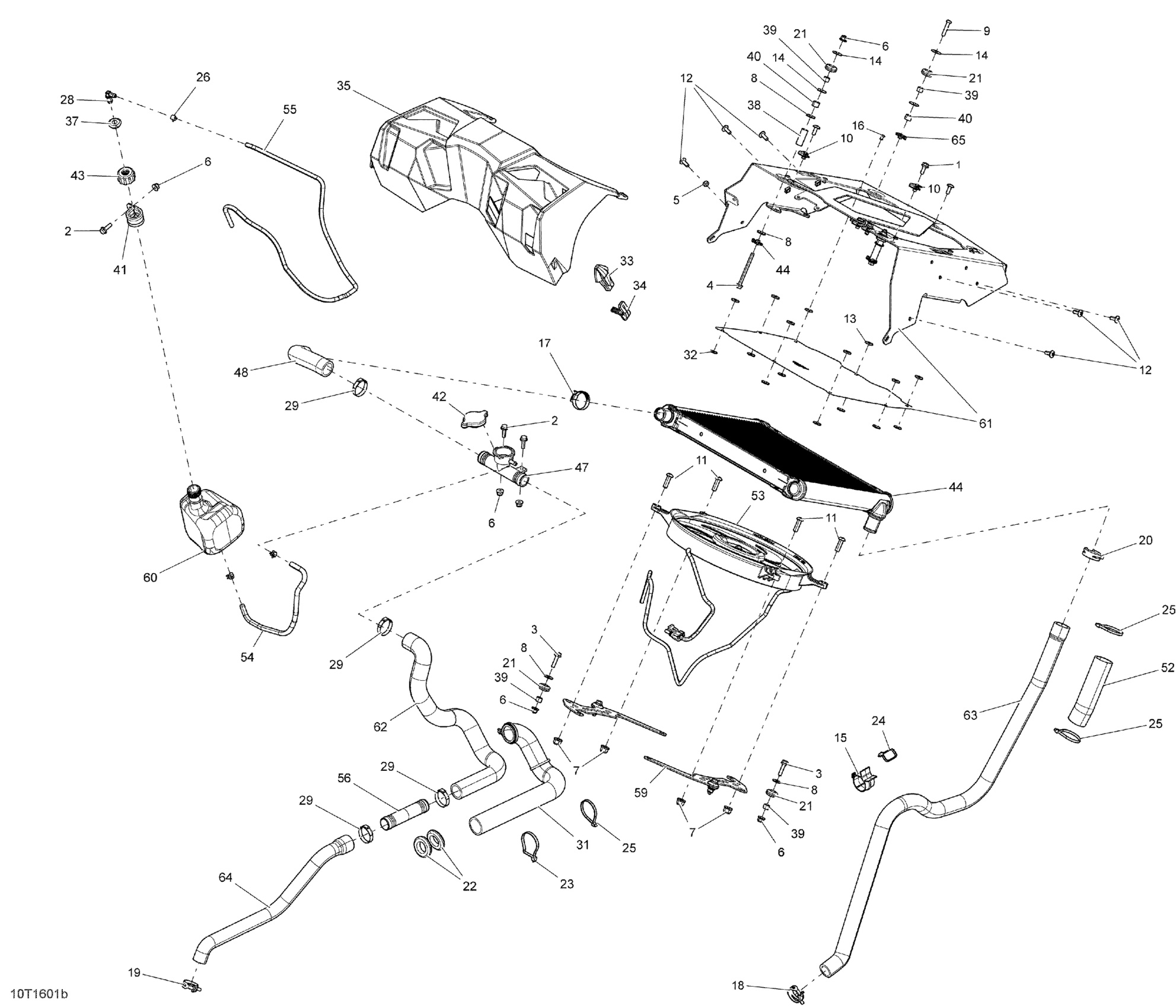

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Cooling System - XMR Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Flange Screw M6 X 25

207662544

$0.53

4

Hex. Flange Screw M6 X 70

207667044

$0.70

5

Elastic Stop Nut M6

232561434

$1.55

6

Flange Elastic Nut M6

233261434

$3.61

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Flat Washer M6, Stainless

234062600

$0.64

9

Torx Screw M6 X 30

235563054

$3.61

10

Panel Nut M6 X 1.0

250100198

$1.73

11

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

12

Torx Head Screw M6 X 16

250000717

$1.74

13

Rubber Washer 5 mm

250200024

$1.77

14

Flat Washer

250200040

$1.82

15

Retainer

275500590

$7.18

16

Rivet 3/16"

293150102

$0.71

17

Norma Gear Clamp

293650098

$4.28

18

Norma Spring Clamp

293650108

$4.00

19

Norma Spring Clamp

293650109

$4.00

20

Norma Spring Clamp

293650166

$4.28

21

Grommet

293720062

$4.16

23

Tie Wrap 368 mm

293750008

$0.85

24

Tie-Rap 180 mm

414115200

$0.09

26

Spring Clamp

414554800

$0.83

28

Male Connector

414580700

$3.38

29

Gear Clamp

509000162

$7.37

31

Tubing 35 MM 1000MM Long

219704428

$8.57

32

Washer

517124300

$0.16

33

Black Latch Kit | Includes 390 to 400

860200239

$16.12

34

Panel Latch

517303981

$10.00

35

Protection Cover Kit

703100399

$87.66

37

Grommet

705003264

$3.43

38

Bushing

705202499

$6.45

39

Spacer

707000058

$12.17

40

Bushing

708001129

$10.98

41

Hose Anchor

709200036

$10.83

42

Radiator Pressure Cap

709200207

$18.82

43

Cap

709200586

$11.06

44

Radiator

709200286

$461.51

47

Filler Neck

709200422

$17.66

48

Hose

709200891

$13.83

52

Tubing 35 MM 1000MM Long

219704428

$8.57

53

Fan Ass'y

709200567

$263.05

54

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

55

Polyurethane Hose 10000Mm Long

219704410

$46.12

56

Nipple Tube 1"

709200448

$23.05

59

Aupport_Fan Ecoat

709201349

$27.66

60

Coolant Tank Ass'y

709200624

$96.89

61

Deep Black, Radiator Support Kit | Includes 30 to 30j

709201336

$350.74

62

Hose, Polyurethane | Engine 570

709200559

$46.12

63

Hose, Polyurethane | Engine 570

709200560

$50.74

64

Hose | Engine 570

709200896

$36.89

65

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable
