07- Body - Front Section

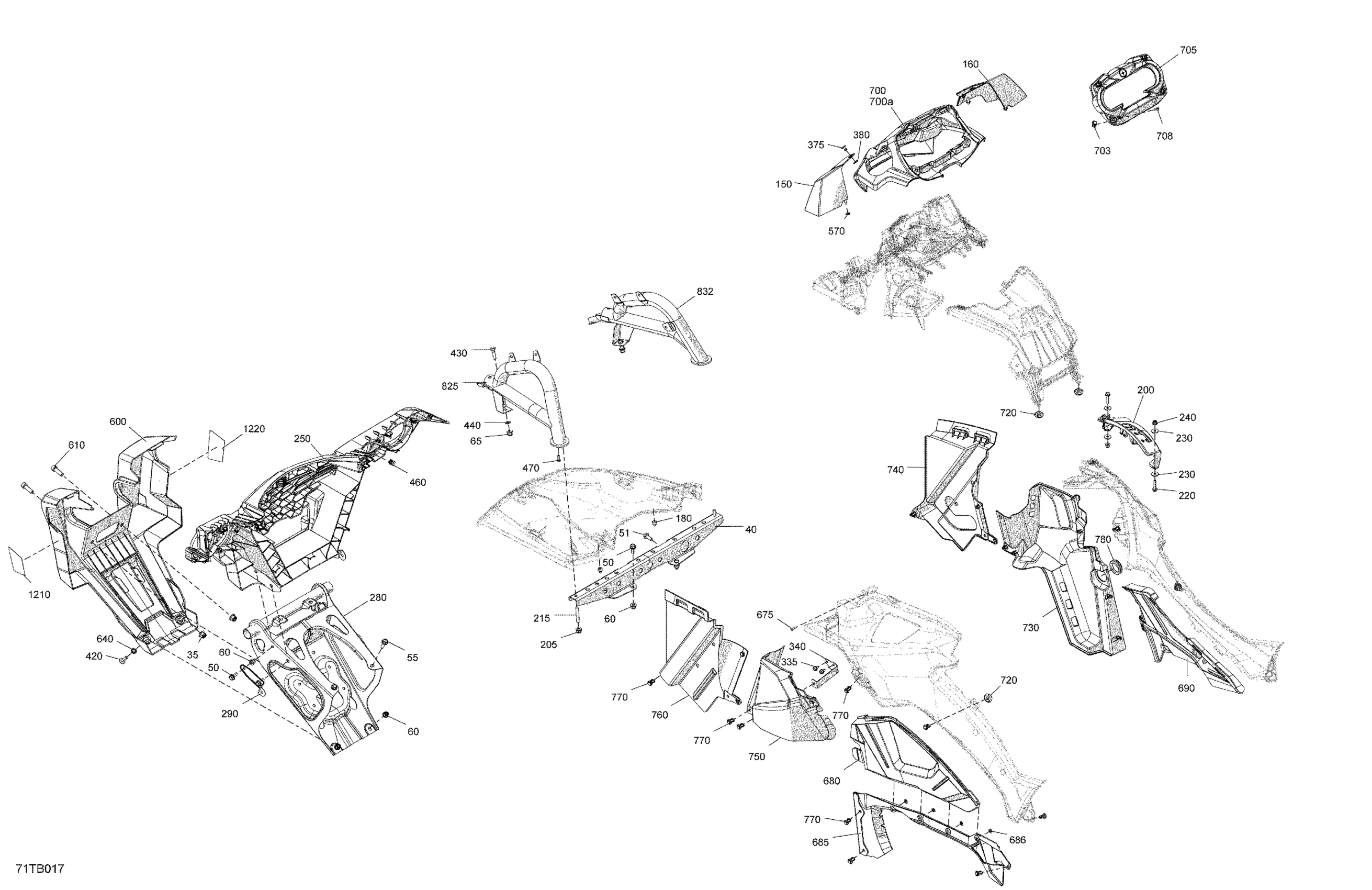

Can-Am 005 - Outlander 850 EFI - XMR - North America, 2022 07- Body - Front Section Diagram
#
35
Hex. Flange Elastic Nut M10
233201434
Unavailable
40
Front Bumper Center Support
705006220
Unavailable
50
Hex. Flange Screw M8 X 20
207682044
Unavailable
51
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
55
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
60
Hex. Flange Elastic Nut M8
233281414
Unavailable
65
Elastic Flange Nut M8
233281464
Unavailable
150
LH Air Deflector
705006134
Unavailable
160
RH Air Deflector
705006135
Unavailable
180
Rubber Bumper
293830005
Unavailable
200
Shifter Gate Kit | Engine 570 Except Europe, T3
715003977
Unavailable
205
Hex. Flange Elastic Nut M8
233281414
Unavailable
215
Socket Set Screw M8 x 50
206285044
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
240
Flange Elastic Nut M6
233261434
Unavailable
250
Fascia
705012822
Unavailable
280
Front Bumper Support
705016893
Unavailable
290
Lower Fender Support
705004565
Unavailable
335
Hex. Flange Screw M6 X 10
210261040
Unavailable
340
LH Inner Fender Bracket
705007140
Unavailable
375
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
380
Washer
517124300
Unavailable
420
Torx Screw M8 X 30
250000886
Unavailable
430
Hex. Cap Screw M8 X 30
207183054
Unavailable
440
Stainless Steel Flat Washer 8 mm
234081670
Unavailable
460
Edge Clip
517302785
Unavailable
470
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
570
Push Nut
732610072
Unavailable
600
Front Guard Plate | North America, International
705006299
Unavailable
610
Socket Screw M10 x 30 | XT
205003044
Unavailable
640
Ring
705004497
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
680
Deflector Body Panel Kit
715007294
Unavailable
685
Deflector Body Panel
705014061
Unavailable
686
Push Nut
732610072
Unavailable
690
Engine Cover
705003444
Unavailable
700
Gauge Support
705013983
Unavailable
700a
Gauge Support
705013984
Unavailable
703
Extruded Panel Nut M4 X 0.7
250100143
Unavailable
705
Front Gauge Trim
705013985
Unavailable
708
Torx Head Screw M4 X 16
250000797
Unavailable
720
Grommet
705003264
Unavailable
730
RH Wheel Arch Protector
705013925
Unavailable
740
RH Front Inner Fender
705011463
Unavailable
750
LH Wheel Arch Protector
705013924
Unavailable
760
LH Front Inner Fender
705011465
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
780
Rubber Cover
293250242
Unavailable
825
Carbon Black, LH Radiator Support
705017339
Unavailable
832
Carbon Black, RH Radiator Support
705017340
Unavailable
1210
LH Front Side Reflector | North America, International
704902865
Unavailable
1220
RH Front Side Reflector | North America, International
704902866
Unavailable
