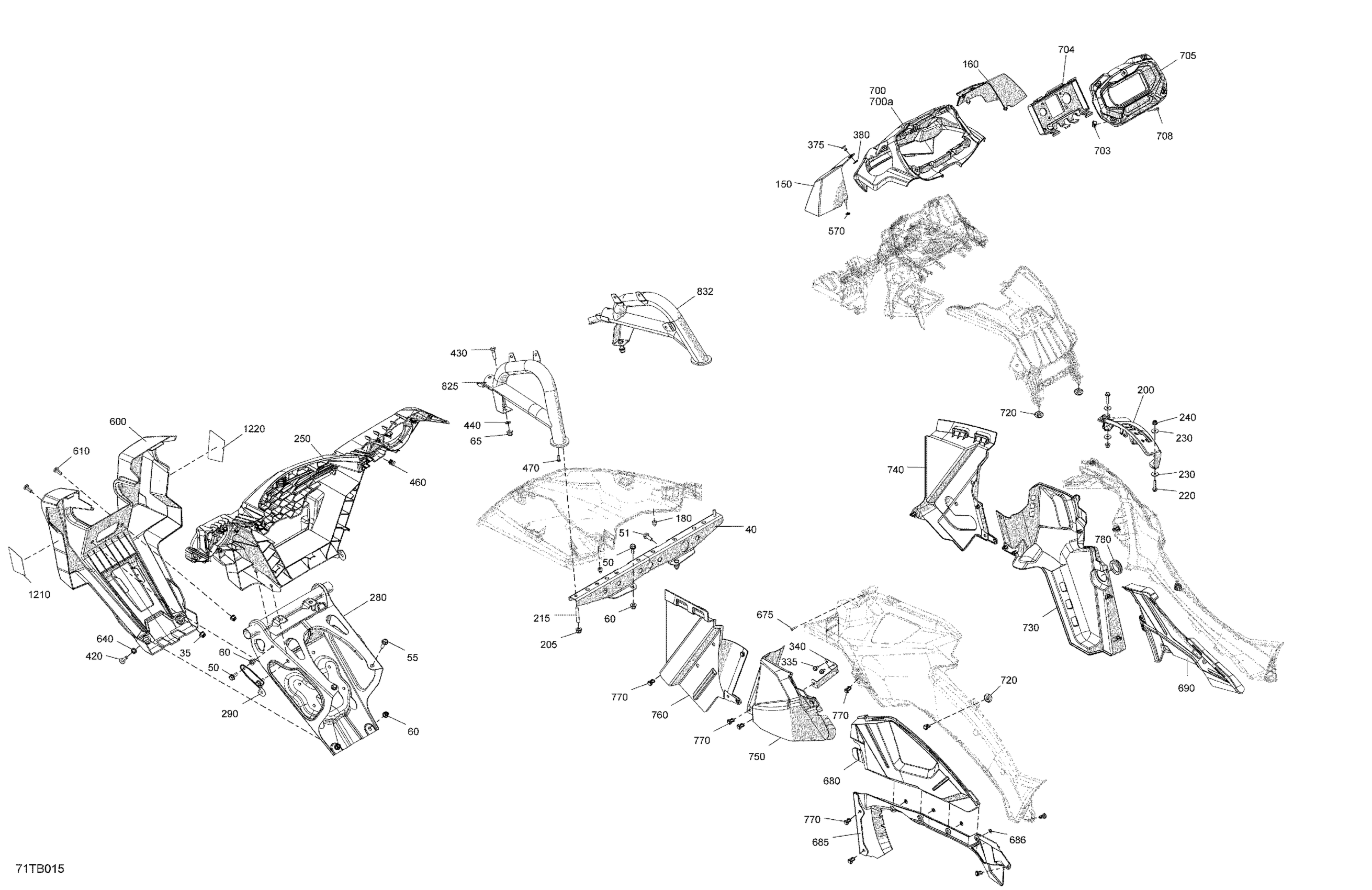

Can-Am Outlander 650 EFI - XMR - 2022 Body - Front Section Diagram

#

Description
Price

35

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Front Bumper Center Support

705006220

$79.82

50

Hex. Flange Screw M8 X 20

207682044

$0.92

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

60

Hex. Flange Elastic Nut M8

233281414

$1.14

65

Elastic Flange Nut M8

233281464

$0.83

150

LH Air Deflector

705006134

$23.85

160

RH Air Deflector

705006135

$22.36

180

Rubber Bumper

293830005

$5.33

200

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

205

Hex. Flange Elastic Nut M8

233281414

$1.14

215

Socket Set Screw M8 x 50

206285044

$3.81

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

240

Flange Elastic Nut M6

233261434

$3.61

250

Fascia

705012822

$108.18

280

Front Bumper Support

705016893

$314.90

290

Lower Fender Support

705004565

$6.19

335

Hex. Flange Screw M6 X 10

210261040

$1.25

340

LH Inner Fender Bracket

705007140

$18.63

375

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

380

Washer

517124300

$0.16

420

Torx Screw M8 X 30

250000886

$1.74

430

Hex. Cap Screw M8 X 30

207183054

$3.61

440

Stainless Steel Flat Washer 8 mm

234081670

$0.56

460

Edge Clip

517302785

$0.70

470

Hex. Flange Screw, Scotch Grip

207551634

$1.66

570

Push Nut

732610072

$1.72

600

Front Guard Plate | North America, International

705006299

$46.24

610

Hex. Screw M8 X 20

236282054

$1.40

640

Ring

705004497

$3.87

675

Phillips Screw K40 X 16

250000723

$0.81

680

Deflector Body Panel Kit

715007294

$49.97

685

Deflector Body Panel

705014061

$38.78

686

Push Nut

732610072

$1.72

690

Engine Cover

705003444

$18.63

700

Gauge Support

705013983

$40.27

700a

Gauge Support

705013984

$17.88

703

Extruded Panel Nut M4 X 0.7

250100143

$6.77

704

Interior Gauge Support

705015548

$5.48

705

Gauge Trim

705015547

$20.12

708

Torx Head Screw M4 X 16

250000797

$1.63

720

Grommet

705003264

$3.43

730

RH Wheel Arch Protector

705013925

$16.39

740

RH Front Inner Fender

705011463

$14.13

750

LH Wheel Arch Protector

705013924

$16.39

760

LH Front Wheel Arch Protector

705017001

$14.13

770

Tuflok Plastic Rivet

293150230

$1.21

780

Rubber Cover

293250242

$5.18

825

Carbon Black, LH Radiator Support

705017339

$208.18

832

Carbon Black, RH Radiator Support

705017340

$208.18

1210

LH Front Side Reflector | North America, International

704902865

$11.81

1220

RH Front Side Reflector | North America, International

704902866

$11.81
