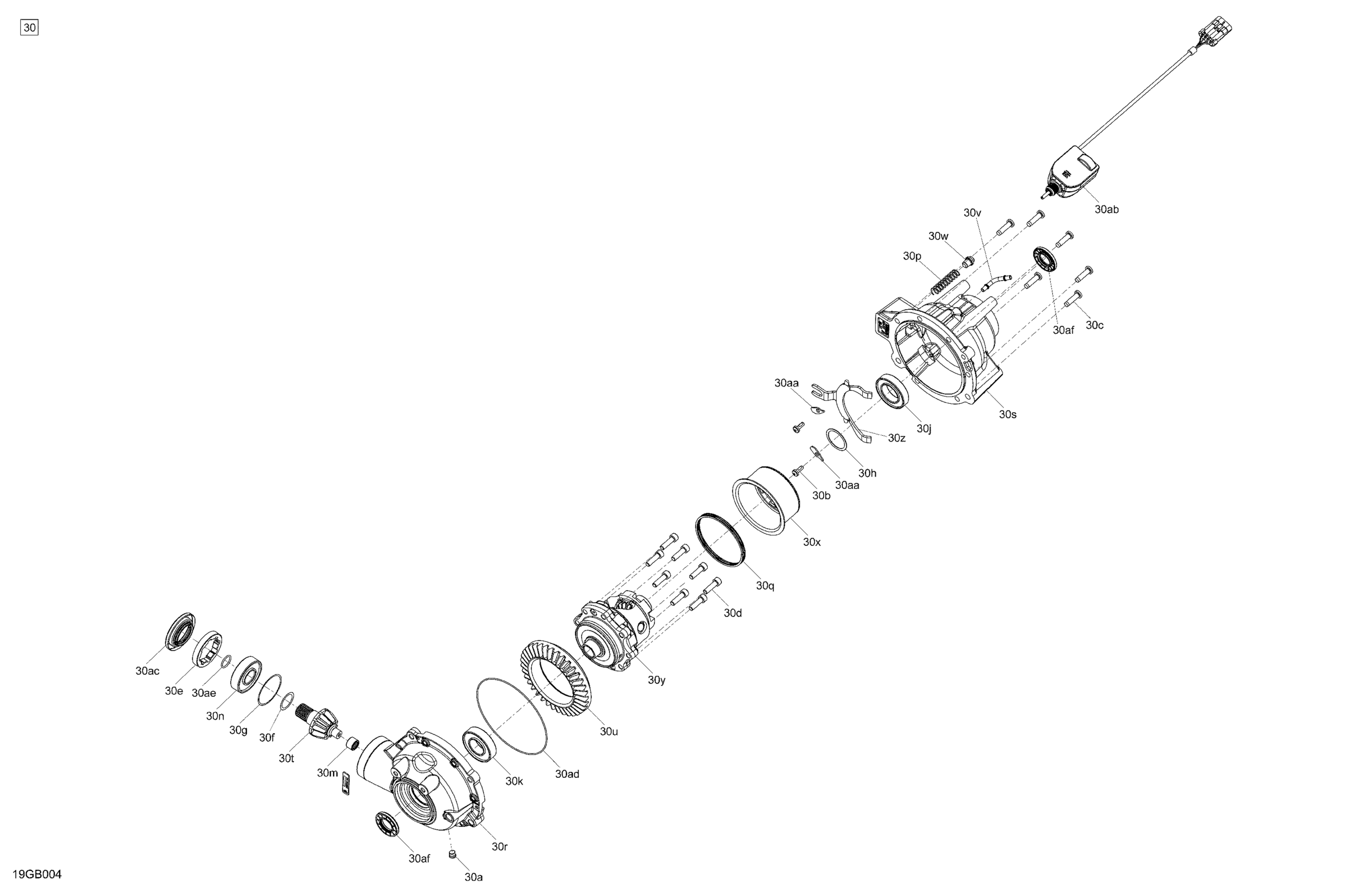

Can-Am Outlander 570 EFI - XMR - 2022 Drive - Front - Differential Parts Diagram

Description

Price

Differential Ass'y | Includes 30 to 30af

705403049

$1,339.99

30a

Drain Plug | After May 30, 2014

705501885

$14.22

30b

Torx Screw M6 X 16

705402845

$11.05

30c

Screw | 4X4

705401601

$10.49

30d

Screw | After May 30, 2014

705401602

$6.19

30e

Nut | 4X4

705401603

$35.99

30f

Shim

705401769

$7.69

30g

Shim

705401770

$7.09

30h

Shim

705402846

$32.99

30j

Ball Bearing

705402847

$49.99

30k

Ball Bearing | 4X4

705401606

$51.99

30m

Ball Bearing | After May 30, 2014

705402848

$49.99

30n

Ball Bearing

705402849

$51.99

30p

Compression Spring

705402850

$11.99

30q

Wave Spring

705402851

$37.99

30r

Front Pinion Cover | After May 30, 2014

705401792

$149.99

30s

Front Cover

705402719

Unavailable

30t

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

30u

Gear 36 Teeth

705402842

$409.99

30v

Vent Valve | After May 30, 2014

705401613

$16.49

30w

Plunger

705402854

$14.99

30x

Shift Collar

705402855

$60.49

30y

Differantial 0 CIP

705402789

$929.99

30z

Shift Fork

705402785

$52.99

30aa

Retaining Ring

705402783

$16.99

30ab

Shifter Actuator

705402959

Unavailable

30ac

Oil Seal | After May 30, 2014

705401615

$19.49

30ad

Seal | After May 30, 2014

705401616

$14.28

30ae

O'Ring | After May 30, 2014

705401617

$7.20

30af

Gasket | 4X4

705401618

$18.49
