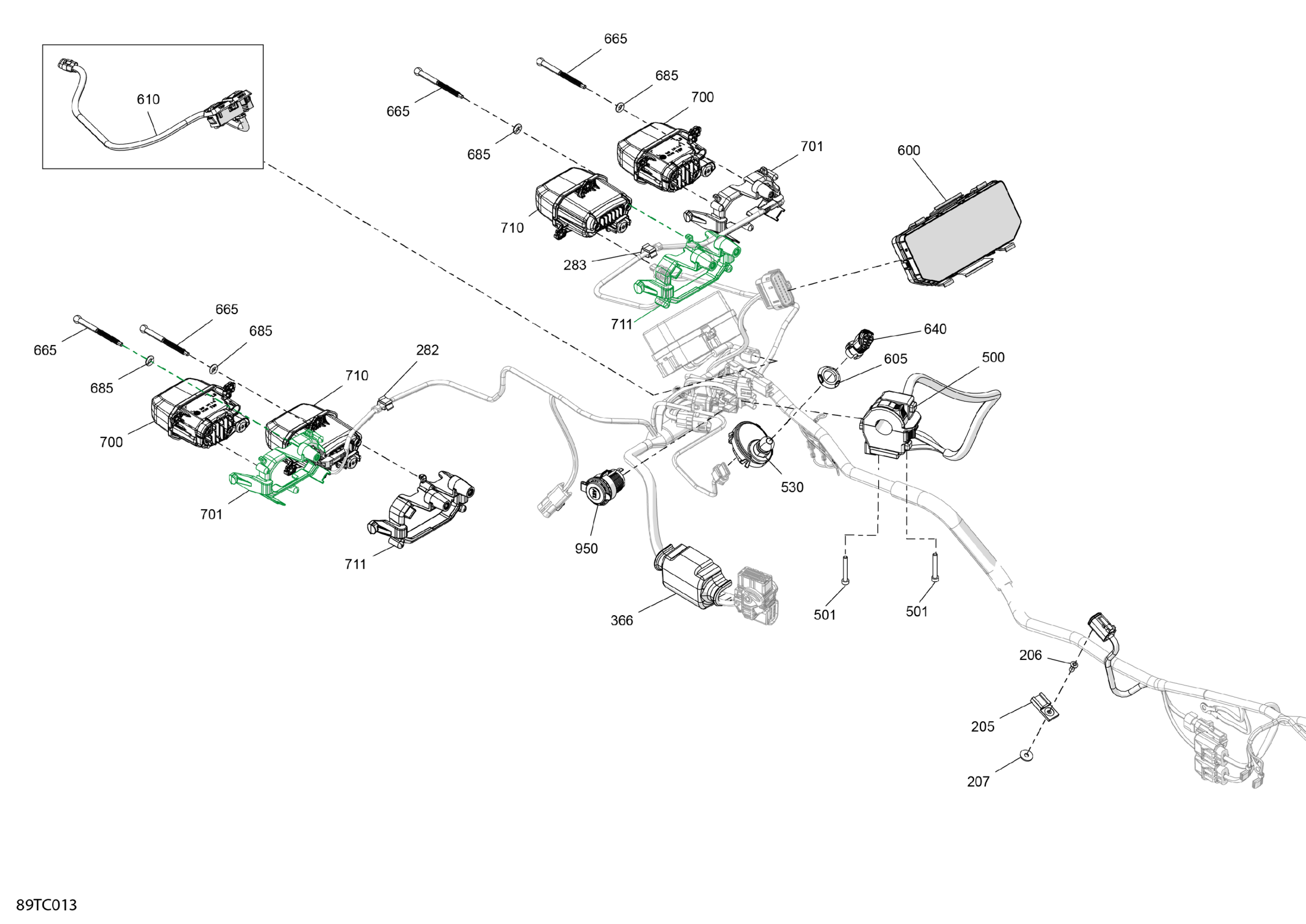

Can-Am Outlander 1000R EFI - XXC - 2023 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

366

Soft Protection Sleeve

710007255

$2.98

500

Switch Handle

710006134

$69.20

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire

515179240

$71.51

600

Multifunction Gauge

710005253

$992.28

605

Safety Nut (DESS Switch)

278002963

$2.72

610

Multifunction Switch

710008638

$64.58

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Ajustment Screw

710005837

$6.45

685

O-Ring

293300192

$3.85

700

Low Beam Light

710008088

$156.89

701

Exterior Headlight Support

710008396

$27.66

710

HIgh Beam Light

710006910

$156.89

711

Interior Headlight Support

710008394

$9.22

950

DC Outlet

710001248

$31.17
