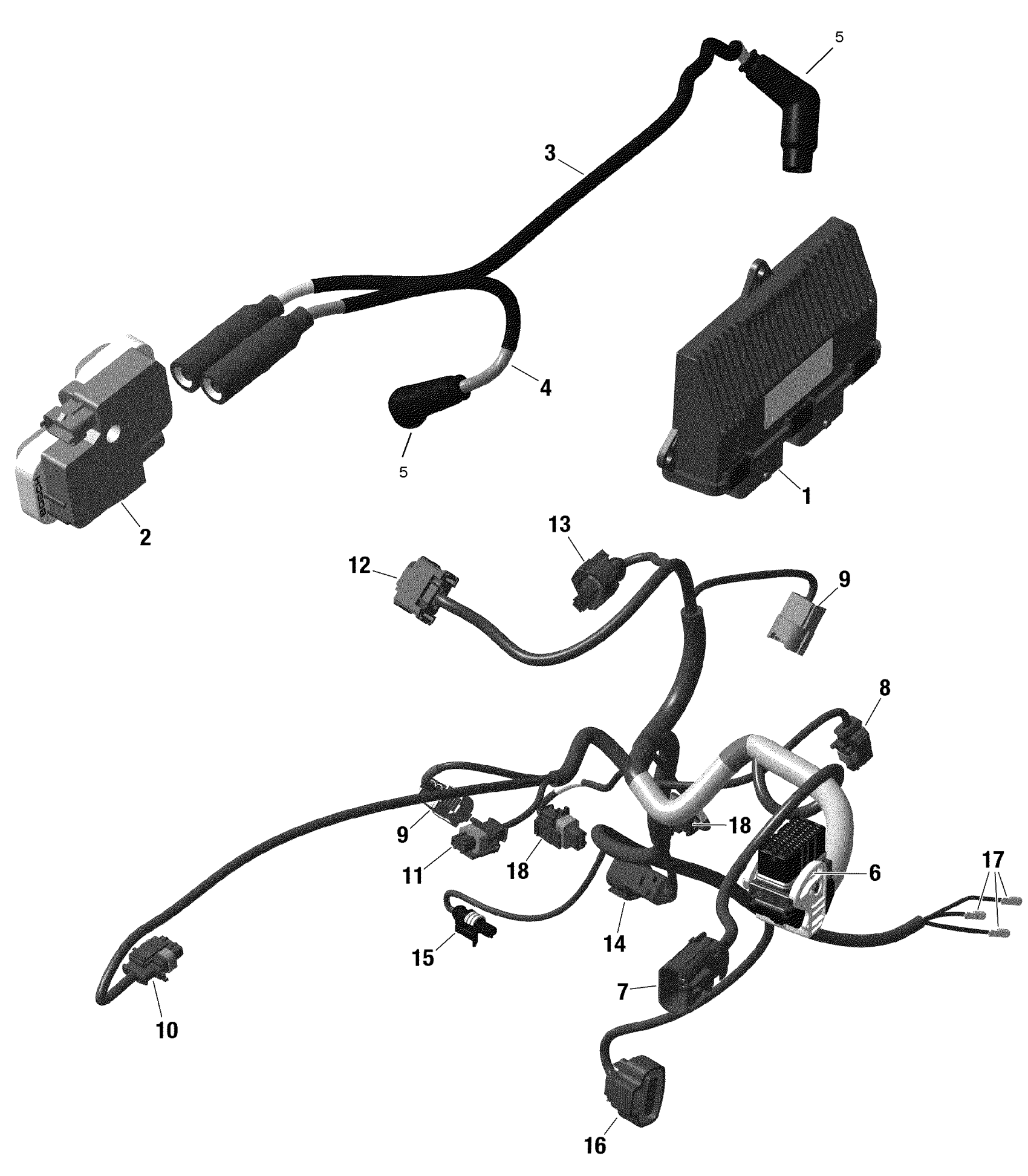

Can-Am Outlander 1000R EFI - XT_XTP_XXC - 2021 Rotax - Engine Harness And Electronic Module - 322 - XT - XTP Diagram

Electronic Module Programmable

420666064

$819.99

Ignition Coil

278001546

$158.99

Housing

710000568

$11.12

Spark Plug Cable, 600 mm, PTO SAE | Except International

420464162

$58.49

Spark Plug Cable, 315 mm, MAG SAE | Except International

420464152

$74.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Wiring Harness

420864694

$439.99

Housing

710001227

$12.71

Housing

710001927

$8.79

Male Housing, 2 Circuits

278001005

$19.49

Female Housing

515176129

$29.49

Male Housing, 3 Circuits

278000997

$19.49

Male Housing, 2 Circuits

278001005

$19.49

Housing Connector, 3 Circuits

278001829

$21.99

Male Connector

515176410

$51.49

Male Housing

278002378

$13.99

Male Housing, 1 Circuit

278001012

$16.86

Male Housing, 4 Circuits

710000329

$15.36

Insulated Sheath

278001007

$3.58

Insulated Sheath

278001007

$3.58
