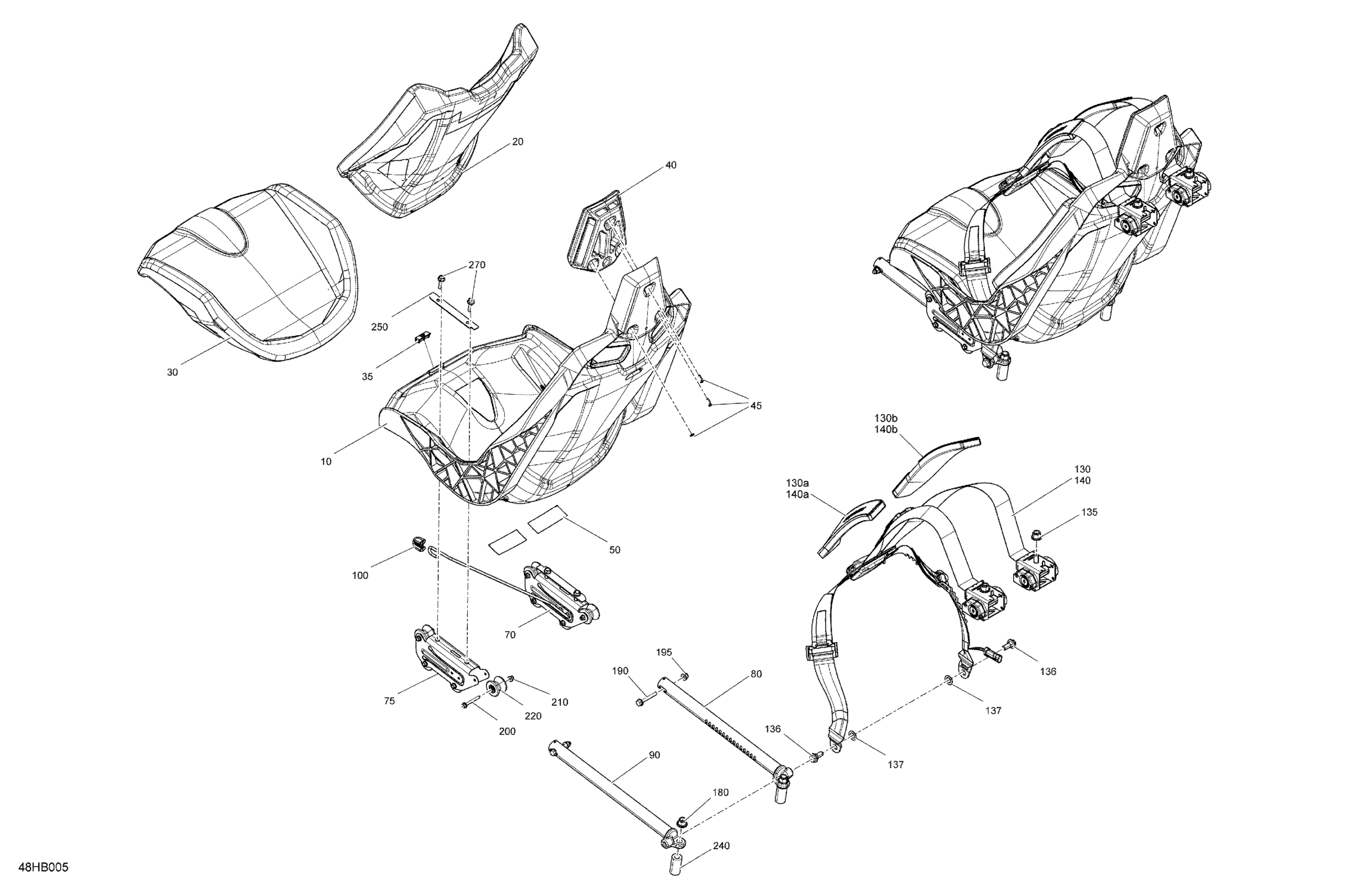

Can-Am Maverick Turbo RR - XRS - 2022 Body - Seat Diagram

#

Description
Price

10

Seat Shell Kit

708002065

$244.99

10

Can Am Red, Seat Shell

708003216

Unavailable

20

Backrest Cushion

708002676

$439.99

20

Backrest Cushion | Package XRS & Hyper Silver

708002874

$349.99

20

Backrest Cushion

708003347

$439.99

30

Seat Base Cushion | Model Gold

708002382

$239.99

30

Seat Base Cushion

708002678

$239.99

30

Seat Base Cushion

708003349

$239.99

35

Stopper

708002670

$3.89

40

Headrest

708002131

$104.99

45

Torx Screw Truss Head K50X20 T20

250000760

$2.19

50

Velcro Tape

708002535

$4.14

70

Adjustable Trolley Kit

703500997

$63.99

75

Trolley

708002298

$63.99

80

Seat Rail

708003061

$53.99

90

Seat Rail

708003064

$53.99

100

Adjustment Handle

708002655

$16.99

130

Passenger 4-Point Harness

715005022

$308.99

130a

LH Shoulder Pad

708002824

$37.99

130b

RH Shoulder Pad

708002825

$37.99

135

Elastic Flange Nut M12

233221416

$2.89

136

Safety Belt screw

708002504

$5.29

137

Position Washer

708000891

$1.49

140

LH Front Safety Belt 4 Points

708002917

$264.99

140a

LH Shoulder Pad

708002824

$37.99

140b

RH Shoulder Pad

708002825

$37.99

180

Elastic Flange Nut M12

233221416

$2.89

190

Hex. Flange Screw M8 X 55

207685554

$5.19

195

Elastic Flange Nut M8

233281464

$1.49

200

Hex. Flange Screw M6 X 50

207665054

$4.69

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

220

Wheel

708002134

$15.99

240

Rear Bushing

708002299

$10.99

250

Plate | Includes 250 to 250a

708003680

$2.69

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69
