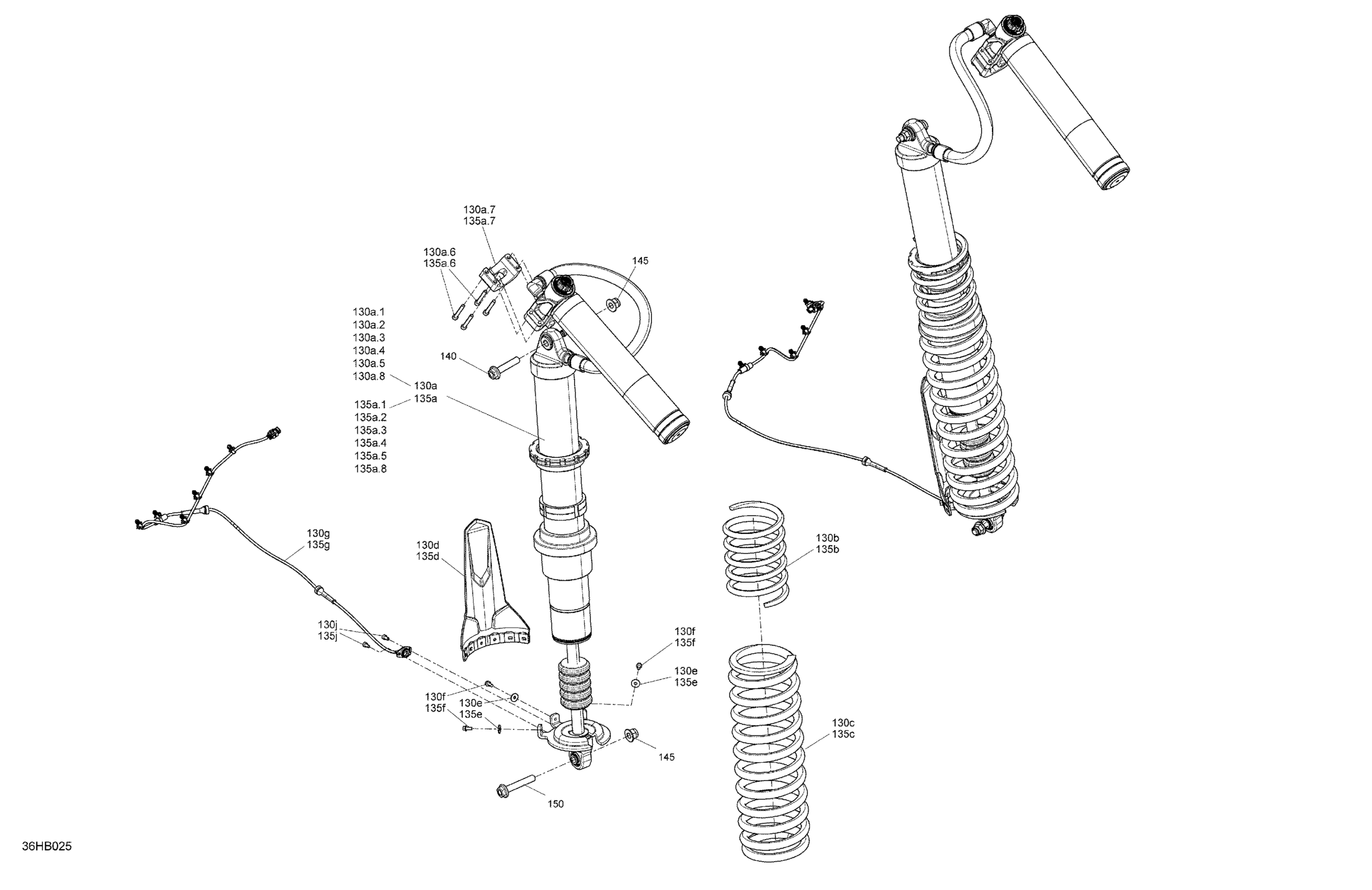

Can-Am Maverick Turbo RR - XRS - 2022 Suspension - Rear Shocks - With Smart-ShoX Diagram

#

Description
Price

130a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706004751

$1,779.99

130a.1

Spherical Bearing

715900337

$79.07

130a.2

Ball Joint

706004078

$44.00

130a.3

O-Ring Bushing

715900338

$10.55

130a.4

Circlip

715900480

$10.24

130a.5

Reducer

715900481

$24.60

130a.6

Screw M6 X 35

715900521

$4.72

130a.7

Réservoir Clamp

715900522

$34.30

130a.8

Connector Support

706203583

$11.84

130b

Black, Rear Spring | Model X3 Xrs Black

706002564

$115.64

130b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004164

$110.42

130b

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004193

$115.64

130c

Deep Black, Compression Spring | Model Timeless Black without Smart-ShoX

706003928

$134.30

130c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004172

$134.30

130c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004194

$139.52

130d

Protector

706202215

$8.66

130e

Washer M5

250200025

$0.61

130f

Hex Flange Screw M5 X 11

210251150

$1.74

130g

Rear Suspension Wiring Harness Ass'y

710006389

$205.94

130j

Socket Head Screw M5 X 10

205551060

$1.30

135a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706004751

$1,779.99

135a.1

Spherical Bearing

715900337

$79.07

135a.2

Ball Joint

706004078

$44.00

135a.3

O-Ring Bushing

715900338

$10.55

135a.4

Circlip

715900480

$10.24

135a.5

Reducer

715900481

$24.60

135a.6

Screw M6 X 35

715900521

$4.72

135a.7

Réservoir Clamp

715900522

$34.30

135a.8

Connector Support

706203583

$11.84

135b

Black, Rear Spring | Model X3 Xrs Black

706002564

$115.64

135b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004164

$110.42

135b

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004193

$115.64

135c

Deep Black, Compression Spring | Model Timeless Black without Smart-ShoX

706003928

$134.30

135c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004172

$134.30

135c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004194

$139.52

135d

Protector

706202215

$8.66

135e

Washer M5

250200025

$0.61

135f

Hex Flange Screw M5 X 11

210251150

$1.74

135g

Rear Suspension Wiring Harness Ass'y

710006389

$205.94

135j

Socket Head Screw M5 X 10

205551060

$1.30

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11
