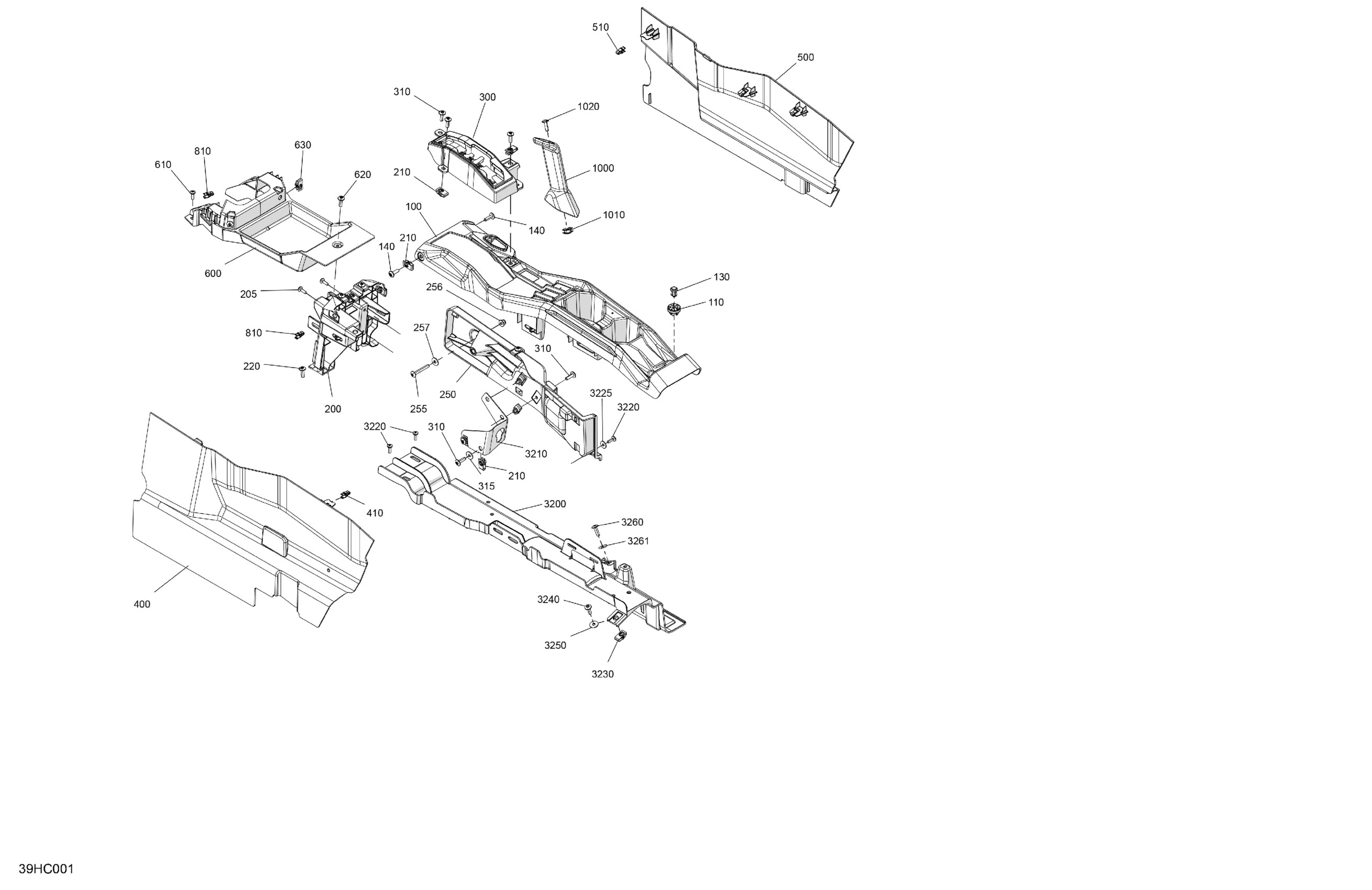

Can-Am Maverick Turbo RR - XRC - 2023 Cab Interior - Center Console Diagram

Description

Price

100

Front Console Kit

715005023

$137.28

110

Insert

707900133

$2.89

130

Tuflok Plastic Rivet

293150230

$1.21

140

Torx Screw M6 X 20

250000722

$1.34

200

Central Console Support

707901127

$58.93

205

Torx Screw K50 X 16

250000720

$1.39

210

Panel Nut M6 X 1.0

250100198

$1.73

220

Torx Screw M6 X 20

250000722

$1.34

250

Shifter Gate Support

707900488

$23.85

255

Torx Screw M6 X 45

250000748

$1.56

256

Hex. Flange Elastic Nut M6

233261466

$1.66

257

Stainless Steel Flat Washer

234062670

$1.74

300

Shift Lever Grille

707901117

$22.36

310

Torx Screw M6 X 20

250000722

$1.34

315

Stainless Steel Flat Washer

234062670

$1.74

400

LH Lateral Dash Panel

707900396

$66.39

410

Clip

705010721

$2.03

500

RH Lateral Dash Panel

707900397

$66.39

510

Clip

705010721

$2.03

600

Front Upper Console

707901120

$21.61

610

Torx Screw K50 X 16

250000720

$1.39

620

Torx Screw M6 X 20

250000722

$1.34

630

Panel Nut M6 X 1.0

250100198

$1.73

810

Clip

705010721

$2.03

1000

Passenger Handle

707900011

$12.43

1010

Connector Tube

707900048

$5.52

1020

Torx Screw M6 X 20

250000722

$1.34

3200

Central Support Hose

707900710

$44.75

3210

Cable Support

707900478

$10.82

3220

Torx Screw K50 X 16

250000720

$1.39

3225

Washer M5

250200025

$0.61

3230

Panel Nut M6 X 1.0

250100198

$1.73

3240

Torx Screw M6 X 20

250000722

$1.34

3250

Stainless Steel Flat Washer

234062670

$1.74

3260

Torx Screw M6 X 20

250000722

$1.34

3261

Stainless Steel Flat Washer

234062670

$1.74
