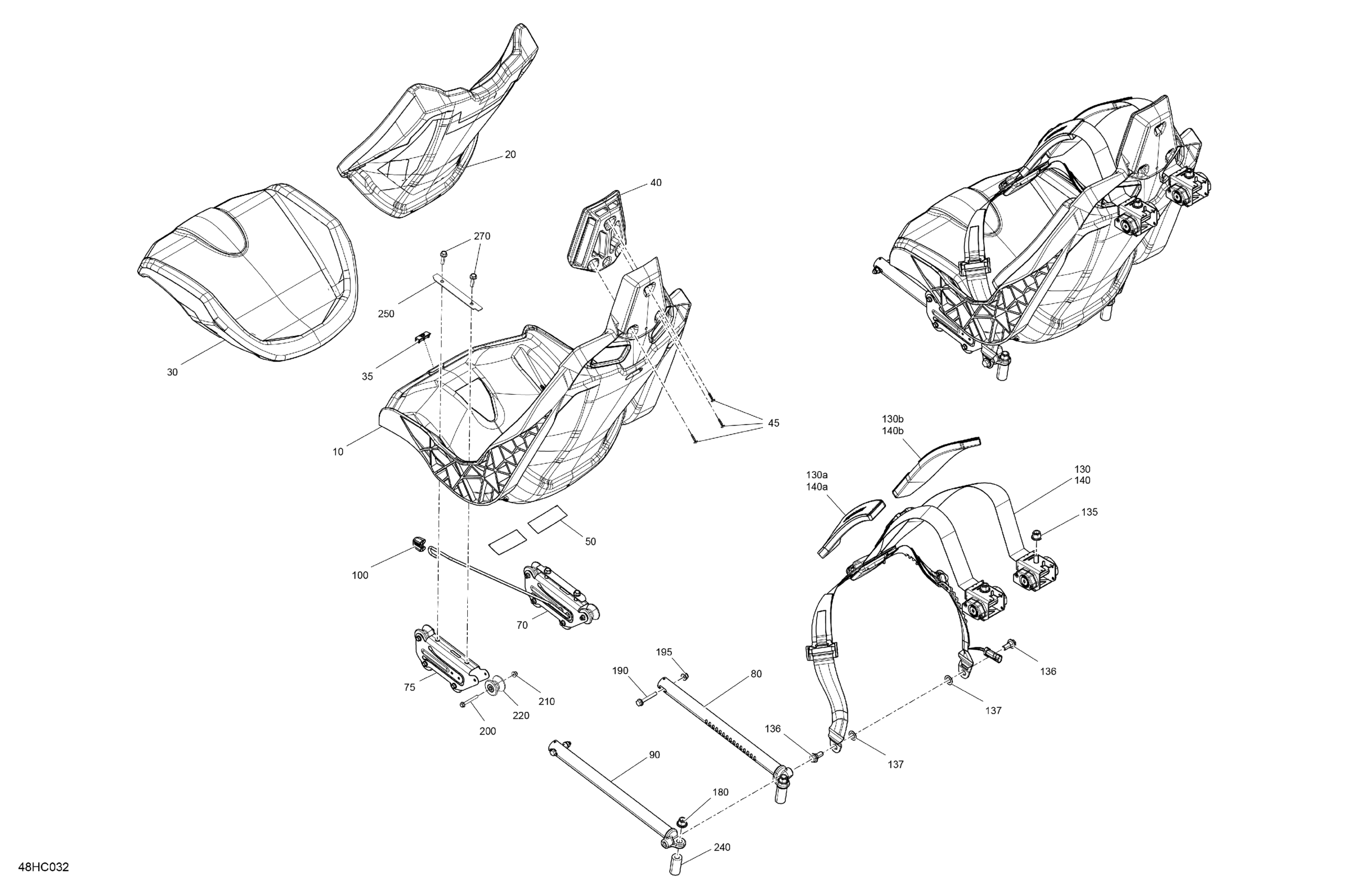

Can-Am Maverick Turbo RR - XRC - 2023 Body - Seat - 72 Inches Width Model Diagram

#

Description
Price

10

Seat Shell Kit

708002065

$244.99

20

Backrest Cushion

708002676

$394.00

30

Seat Base Cushion

708002678

$214.15

35

Stopper

708002670

$3.81

40

Headrest

708002131

$91.01

45

Torx Screw Truss Head K50X20 T20

250000760

$1.74

50

Velcro Tape

708002535

$4.09

70

Adjustable Trolley Kit

703500997

$52.21

75

Carriage

708003450

$15.64

80

Seat Rail

708003061

$47.73

90

Seat Rail

708003064

$47.73

100

Adjustment Handle

708002655

$13.99

130

Passenger 4-Point Harness

715005022

$293.54

130a

LH Shoulder Pad

708002824

$33.55

130b

RH Shoulder Pad

708002825

$33.55

135

Elastic Flange Nut M12

233221416

$2.33

136

Safety Belt screw

708002504

$4.76

137

Position Washer

708000891

$0.97

140

LH Front Safety Belt 4 Points

708002917

$244.00

140a

LH Shoulder Pad

708002824

$33.55

140b

RH Shoulder Pad

708002825

$33.55

180

Elastic Flange Nut M12

233221416

$2.33

190

Hex. Flange Screw M8 X 55

207685554

$4.39

195

Elastic Flange Nut M8

233281464

$0.83

200

Hex. Flange Screw M6 X 50

207665054

$3.95

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

Wheel

708002134

$14.40

240

Rear Bushing

708002299

$9.73

250

Plate | Includes 250 to 250a

708003680

$1.97

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63
