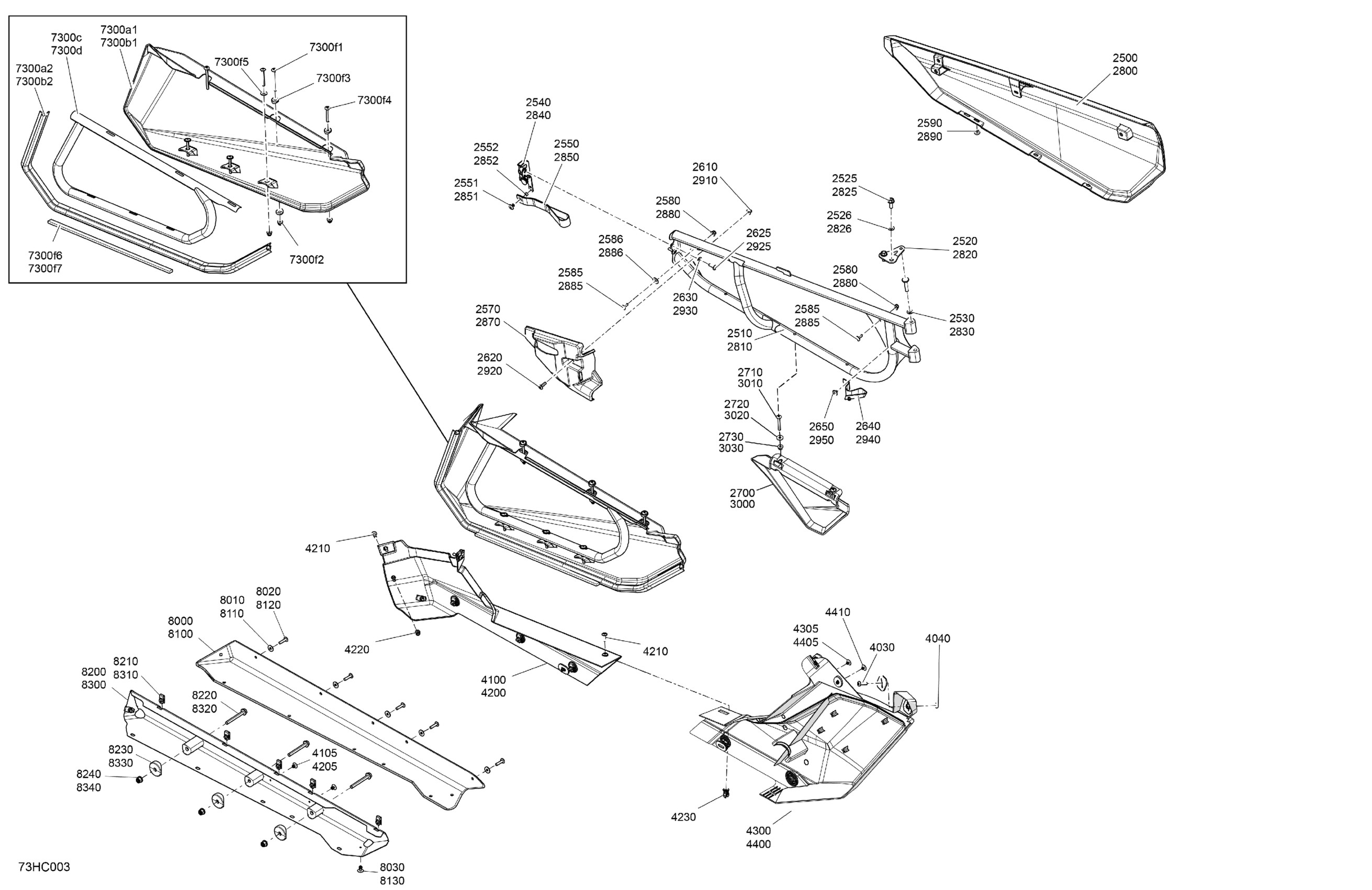

Can-Am Maverick Turbo RR - XRC - 2023 Body - Doors Diagram

#

Description
Price

2500

Mineral Satin Gray, LH Front Door Panel

705014335

$191.76

2510

Deep Black, LH Front Door

705018468

$141.01

2520

Door Support

705011187

$10.55

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Pop Rivet 3/16"

293150103

$0.52

2552

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.52

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Truss Screw M6 X 16

250000721

$1.39

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2630

Flat Washer

224061121

$0.44

2640

Door Belt

293850129

$14.61

2650

Pop Rivet 3/16"

293150103

$0.52

2700

LH Lower Door Panel

705010732

$52.21

2710

Torx Truss Screw M6 X 50

250000749

$3.01

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Hex. Flange Elastic Nut M6

233261466

$1.66

2800

Mineral Satin Gray, RH Front Door Panel

705014341

$191.76

2810

Deep Black, RH Front Door

705018470

$141.01

2820

Door Support

705011187

$10.55

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

$53.70

2850

Belt

293850135

$13.45

2851

Pop Rivet 3/16"

293150103

$0.52

2852

Bushing | DS 650 X

293900104

$5.10

2870

RH Latch Cover

705013536

$35.79

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.52

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Truss Screw M6 X 16

250000721

$1.39

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2930

Flat Washer

224061121

$0.44

2940

Door Belt

293850129

$14.61

2950

Pop Rivet 3/16"

293150103

$0.52

3000

RH Lower Door Panel

705010733

$55.19

3010

Torx Truss Screw M6 X 50

250000749

$3.01

3020

Stainless Steel Flat Washer

234062670

$1.74

3030

Hex. Flange Elastic Nut M6

233261466

$1.66

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4100

Deep Black, LH Interior Body Panel

705017548

$65.64

4105

Pop Rivet 3/16"

293150103

$0.52

4200

Deep Black, RH Lower Body Panel

705017549

$59.67

4205

Pop Rivet 3/16"

293150103

$0.52

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.06

4300

LH Rear Lateral Panel

705012770

$103.70

4305

Pop Rivet 3/16"

293150103

$0.52

4400

RH Rear Lateral Panel

705012771

$103.70

4405

Pop Rivet 3/16"

293150103

$0.52

4410

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

7300a1

LH Door Panels

705010271

$102.21

7300a2

Door Seal

705012018

$17.88

7300b1

RH Door Panels

705010272

$101.46

7300b2

Door Seal

705012018

$17.88

7300c

Black, LH Door Frame

705012750

$116.39

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$116.39

7300f1

Torx-Truss M/S M6 X 80

250000902

$2.52

7300f2

Hex. Flange Elastic Nut M6

233261494

$1.26

7300f3

Offset Washer

705202223

$4.09

7300f4

Torx Truss Screw M6 X 50

250000749

$3.01

7300f5

Stainless Steel Flat Washer

234062670

$1.74

7300f6

Not Available For This Vehicle | Includes 7 to 14

n/a

Unavailable

7300f7

Not Available For This Vehicle | Includes 7 to 14

n/a

Unavailable

8000

Black, LH Lateral Panel

705013015

$101.46

8010

Flat washer M6

250200164

$0.83

8020

Torx Truss Screw M6 X 25

250000807

$1.74

8030

Pop Rivet 3/16”

293150108

$1.19

8100

Black, RH Lateral Panel

705013016

$101.46

8110

Flat washer M6

250200164

$0.83

8120

Torx Truss Screw M6 X 25

250000807

$1.74

8130

Pop Rivet 3/16”

293150108

$1.19

8200

LH Lateral Structure

705012774

$202.96

8210

Panel Nut M6 X 1.0

250100198

$1.73

8220

Hex. Flange Screw M8 X 70

207687044

$6.11

8230

Saddle Washer

705205462

$5.03

8240

Elastic Flange Nut M8

233281464

$0.83

8300

RH Lateral Structure

705012775

$202.96

8310

Panel Nut M6 X 1.0

250100198

$1.73

8320

Hex. Flange Screw M8 X 70

207687044

$6.11

8330

Saddle Washer

705205462

$5.03

8340

Elastic Flange Nut M8

233281464

$0.83
