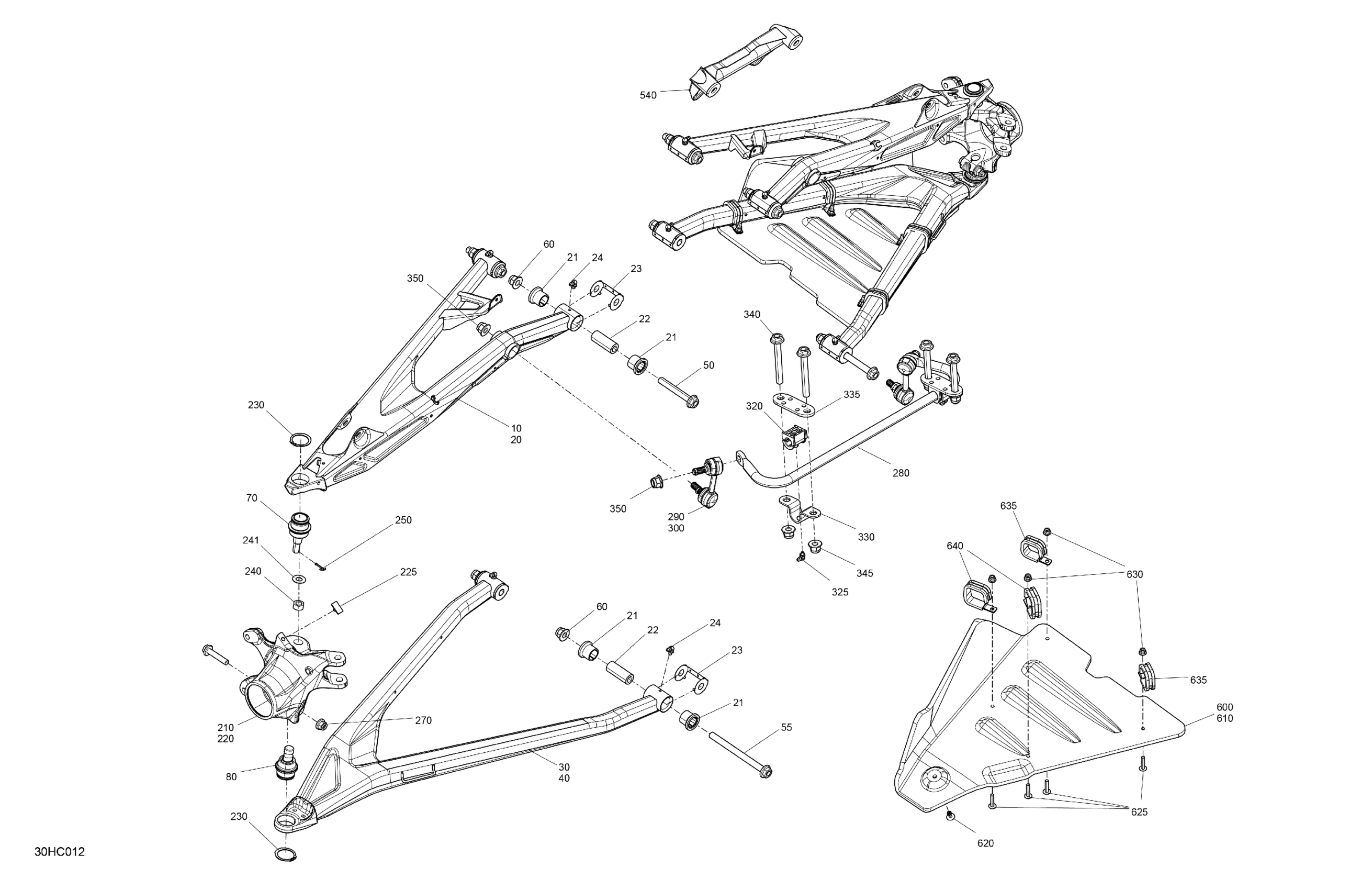

Can-Am Maverick Turbo RR - XRC - 2023 Suspension - Front Components - 72in Diagram

Macchiato Satin, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205163.

715011460

$264.15

Macchiato Satin, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205164.

715011459

$264.15

Suspension Arm Bushing

706204409

$8.40

Interior Bushing

706202257

$7.27

Wear Plate

706202300

$1.69

Grease Fitting 90°

293550056

$1.04

Deep Black, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204733.

715010614

$259.67

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$259.67

Flange Screw M12 X 85

250000859

$3.95

Flange Screw M12 X 145

250000861

$5.47

Elastic Flange Nut M12

250001195

$2.15

Ball Joint

706203084

$34.30

Ball Joint

706202045

$34.30

LH Front Knuckle

706204785

$187.28

RH Front Knuckle

706204786

$138.03

Wear Plate

706202502

$2.29

Circlip

293370035

$2.48

Hex Nut M12

250100239

$1.64

Hardened Washer

706200281

$2.34

Cotter Pin

211400017

$0.25

Hex. Flange Elastic Nut M10

233201436

$1.74

Stabilizer Bar Ass'y

706203953

$91.01

LH Stabilizer Bar Link

706203611

$62.66

RH Stabilizer Bar Link

706203612

$62.66

Stabilizer Bar Bushing

706204564

$3.58

Grease Fitting 90°

293550056

$1.04

Clamp

706202460

$6.19

Support Plate

706202551

$4.52

Hex. Flange Screw M12 X 95

250000876

$5.54

Elastic Flange Nut M12

250001195

$2.15

Elastic Flange Nut M12

250001195

$2.15

Macchiatio, Front Shock Reinforcement

706204492

$47.73

LH A-Arm Protector

703501027

$164.90

RH A-Arm Protector

703501028

$146.24

Pop Rivet 3/16”

293150108

$1.19

Stainless, Torx Screw M6 X 30

250000842

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Holding Clamp

293750085

$6.75

Holding Clamp

293750086

$6.75
