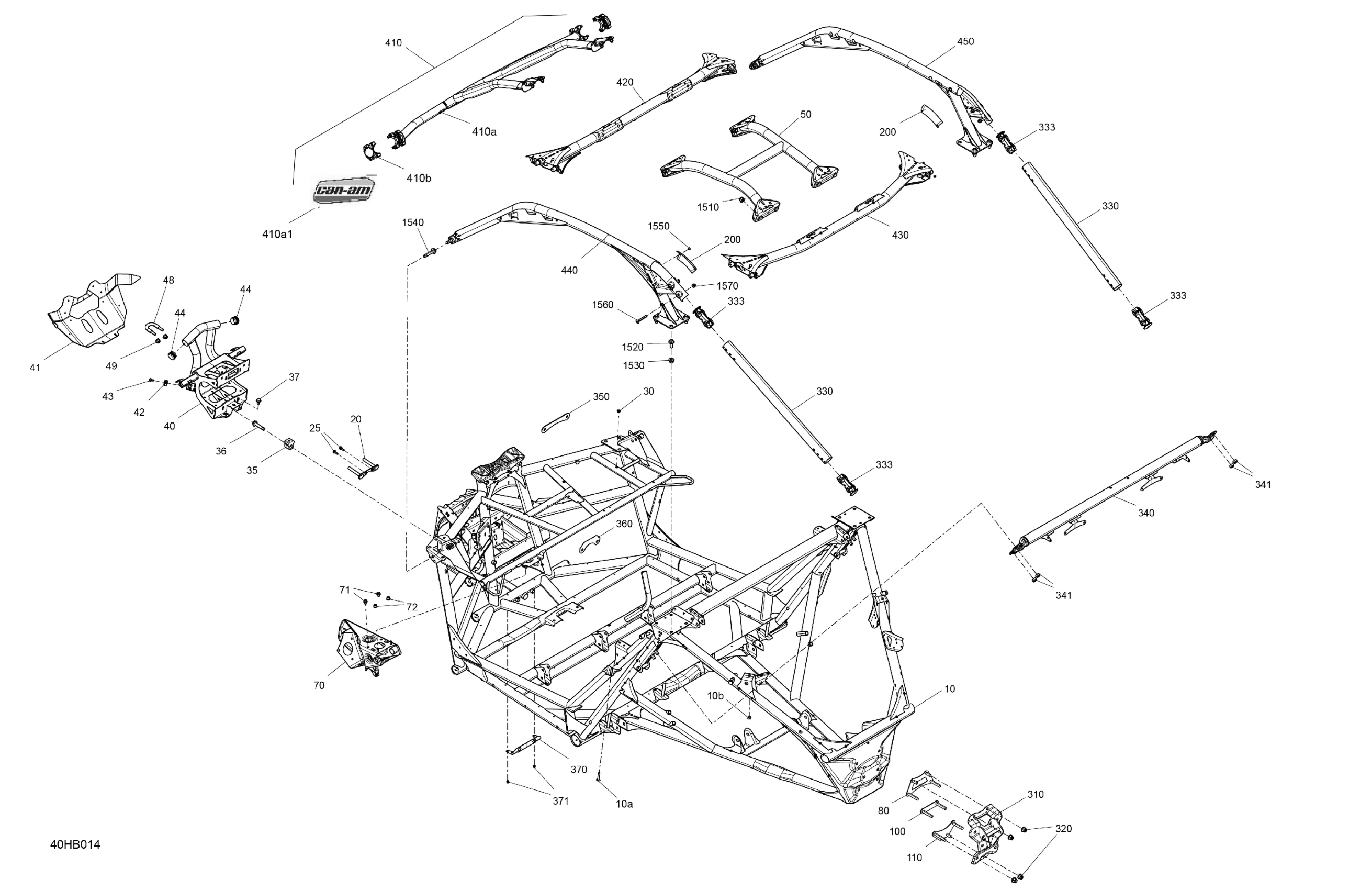

Can-Am 005 - Maverick Turbo RR - XRC - North America, 2022 06- Frame - System Diagram

Black, Frame Kit

715009098

$3,459.99

Chalk, Frame KIt | Model Dazzling Blue

715008479

$2,969.99

Weld Pin 8mm X 40mm

250000913

$2.00

Nut M6

250100059

$1.68

Front Plate

705207424

$22.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Bumper Link

705206992

$18.49

Flange Screw M12 X 60

250000857

$7.41

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

Front Bumper Kit | Model Width 72 in.

715007603

$370.99

Front Master Plate

715006996

$206.49

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cap

705202455

$5.69

U-Clamp

705206983

$37.99

Hex. Flange Elastic Nut M10

233201436

$2.11

Deep Black, Reinforcement Cage | Includes 50 to 50a1j

705210064

$91.99

Magma Red, Reinforcement Cage

705210065

$91.99

DPS Support

705206924

$71.99

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Rear Upper Plate

705211557

$20.99

Rear Central Plate

705211558

$20.99

Rear Lower Plate

705211556

$18.49

Black, LH Link Plate | Except Model Gold

705205926

$25.99

Magma Red, Connecting Plate

705209144

$13.49

Junction Plate Kit

715008492

$44.99

Elastic Flange Nut M12

250001195

$2.64

Deep Black, Rear Pillar

705210066

$24.99

Magma Red, Rear Pillar

705210067

$24.99

Sleeve

705210648

$9.90

Safety Belt Anchorage

705210001

$129.99

Elastic Stop Nut M12

232521416

$1.69

Connecting Plate

705211552

$5.39

Retaining Plate

705210249

$5.29

Support

706203122

$14.49

Pop Rivet 3/16"

390402200

$0.35

Black, Front Intrusion Bar | Includes 410 to 410f

715002889

$436.49

Common Parts Kit | Includes 410a to 410a6

715003531

$163.99

Decal "Can-Am" | Not Shown

704904566

$10.99

Black, Clamp

705205709

$79.49

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

Magma Red, Front Cross Member

705210069

$204.99

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

Magma Red, Rear Cross Member

705210071

$204.99

Black, LH Cage Kit

715008442

$399.99

Magma Red, LH Cage Kit | Model 72po Width

715008444

$399.99

Black, RH Cage Kit

715008456

$399.99

Magma Red, RH Cage Kit | Model 72po Width

715008458

$399.99

Elastic Flange Nut M12

250001195

$2.64

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

Elastic Flange Nut M12

250001195

$2.64

Flange Screw M12 X 60

250000857

$7.41

Rivet 3/16"

293150102

$0.70

Torx Truss M8 X 65

250000901

$1.90

Elastic Flange Nut M8

250100025

$1.48
