Partiron

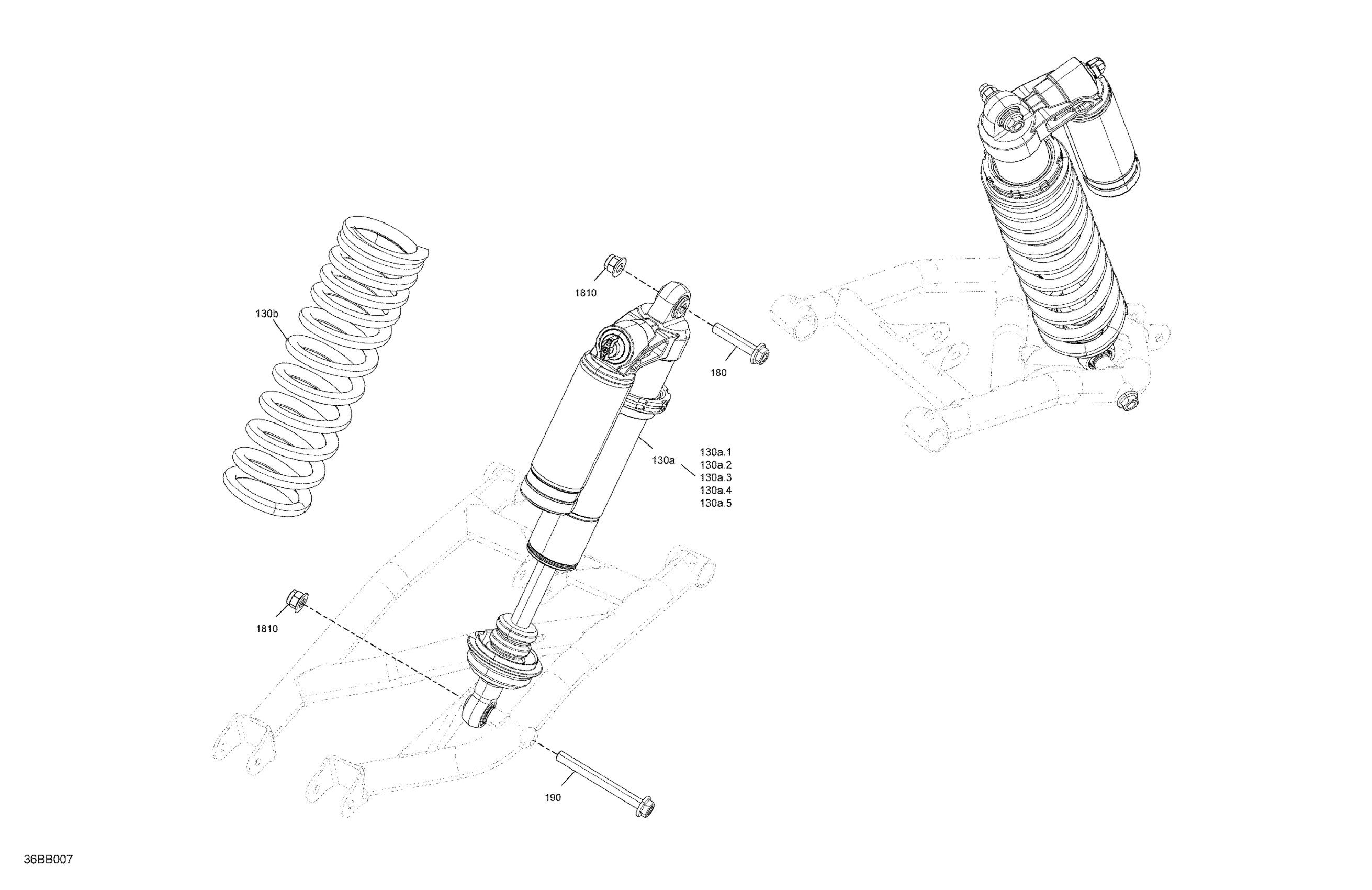

Can-Am Maverick Sport 1000R - XXC - 2022 Suspension - Rear Shocks Diagram

#

Description
Price

130a

Rear Shock | Includes 130a to 130a5

706003181

$729.97

130a.1

Spherical Bearing

715900337

$80.74

130a.2

Ball Joint

706004078

$45.12

130a.3

O-Ring Bushing

715900338

$10.98

130a.4

Circlip

715900480

$11.06

130a.5

Reducer

715900481

$27.66

130b

Northern Lichen, Rear Compression Spring

706004141

$115.35

180

Flange Screw M12 X 60

250000857

$6.08

190

Screw Flange M12 X 115

250000860

$5.47

1810

Elastic Flange Nut M12

250001195

$2.15
