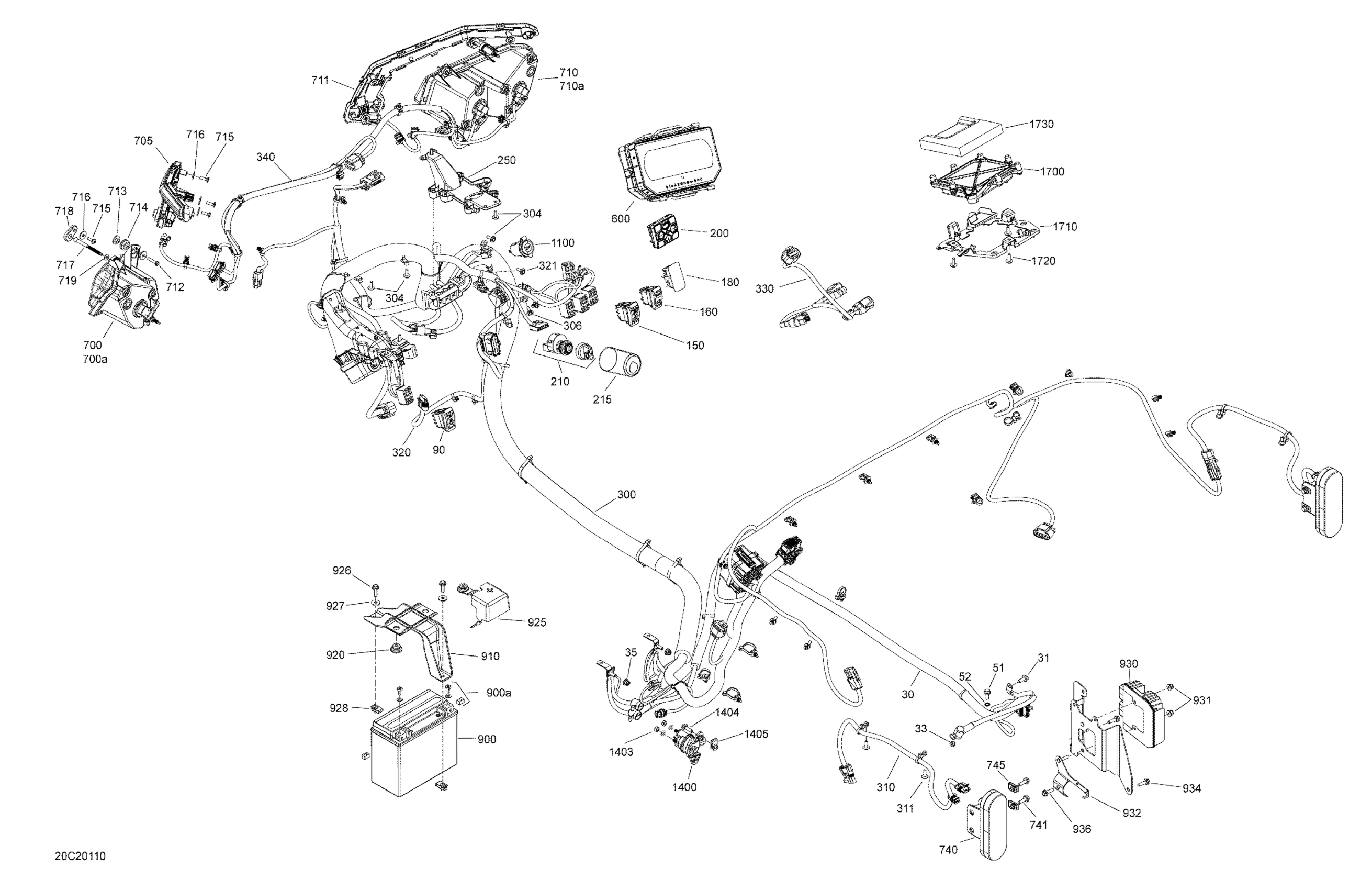

Can-Am Maverick Sport 1000R - XRC - 2020 Electrical System Diagram

#

Description
Price

30

Starter Wiring Harness

710006244

$104.99

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

33

Elastic Stop Nut M6

232561414

$0.55

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

52

External Serrated Lock Washer 6 mm

234461608

$1.15

90

Light Switch

710004492

$47.49

150

Differential Switch

710006040

$31.99

160

Differential Mode Switch

710006558

$23.49

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

200

Multifonction Switch

710006650

$87.99

210

Inter Allumage *Ignition

710007870

$55.99

215

Key Switch Protector

710005739

$2.69

250

Housing Support

710005672

$10.49

300

Main Wiring Harness

710006763

$929.99

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

310

Rear Harness

710006551

$43.99

311

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

330

Front Differential Wiring Harness

710006807

$49.99

340

Front Wiring Harness

710006257

$109.99

600

Full Size Multifunction Gauge

710006854

$449.99

700

LH Headlamp | Includes 700 to 700a

710008230

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Signature Beam

710004994

$169.99

710

RH Headlamp | Includes 710 to 710a

710008231

$199.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Signature Beam

710004995

$169.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.69

715

Torx Screw K50 X 16

250000720

$1.69

716

Stainless Steel Flat Washer

234062670

$2.11

717

Ajustment Screw

710005837

$6.35

718

Adjustment Guide

710005097

$9.59

719

O-Ring

293300192

$4.92

740

Tail Light

710004257

$91.99

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

910

Fixation Plate

710005673

$13.49

920

Stopper Rubber

705014429

$5.95

925

Battery Cable Cap

710005930

$10.49

926

Hex. Flange Screw M6 X 20

207662054

$1.01

927

Stainless Steel Flat Washer

234062670

$2.11

928

Panel Nut M6 X 1.0

250100198

$2.11

930

Voltage Regulator

710005842

$189.99

931

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

932

Voltage Regulator Attach

710006402

$10.49

934

Voltage Regulator Support

710006656

$11.99

936

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1100

12V Power Outlet

710005374

$33.99

1400

Starter Relay

278003012

$42.49

1403

Elastic Stop Nut M6, Brass

232561200

$4.23

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1405

Panel Nut M6 X 1.0

250100198

$2.11

1700

Differential Module

710008871

$479.99

1710

FDM Support

710006104

$7.90

1720

Screw PT Type K-50 X 16

250000959

$2.11

1730

Protector Foam

710006580

$16.99
