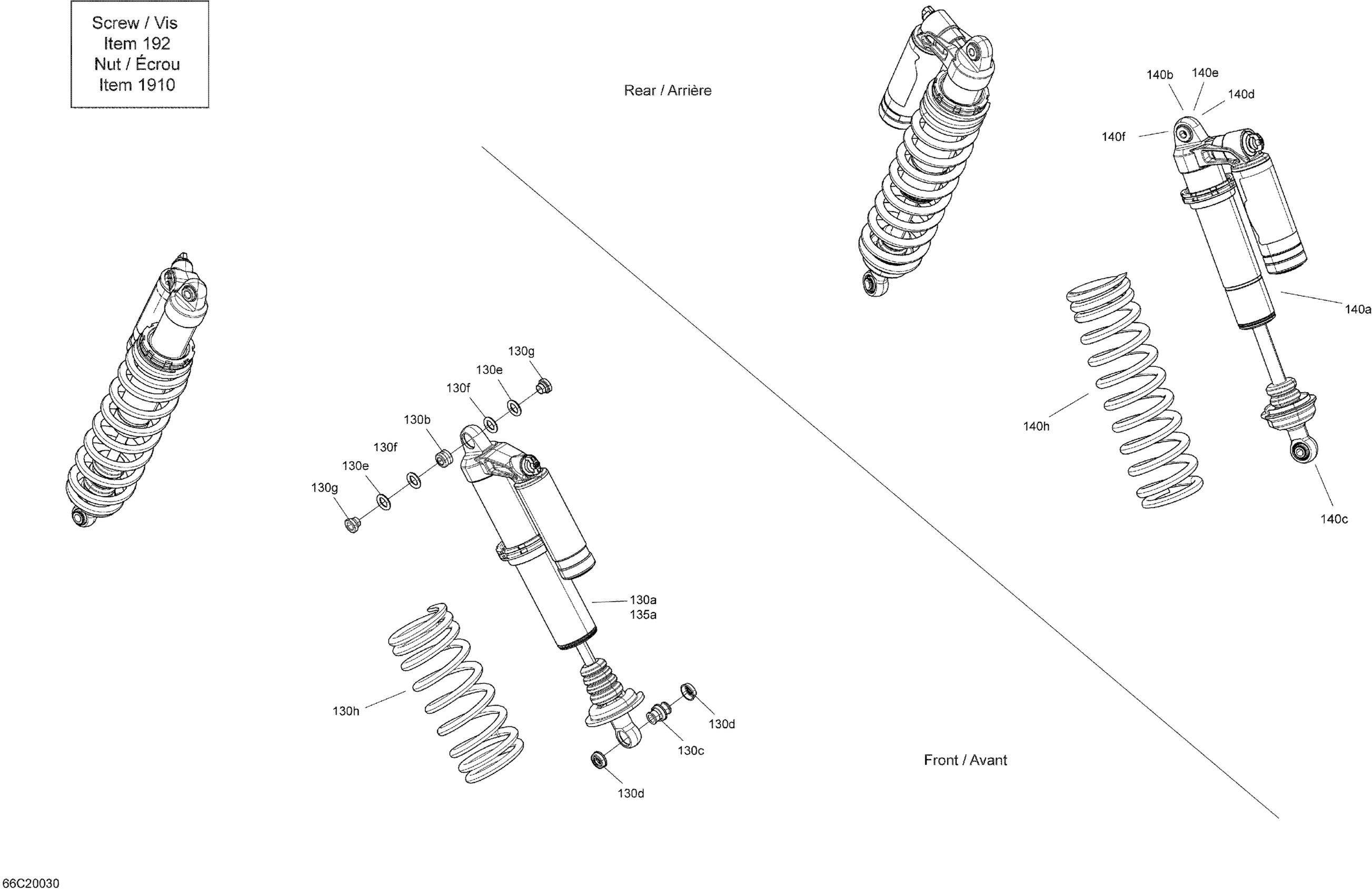

Can-Am Maverick Sport 1000R - XRC - 2020 Shocks Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a6

706203352

$664.58

130b

Spherical Bearing

715900329

$81.51

130c

Spherical Bearing

715900330

$81.51

130d

Protector

715900331

$13.83

130e

O-Ring Bushing

715900268

$13.52

130f

Retaining Ring

715900252

$10.98

130g

Internal Bushing

715900267

$27.66

130h

SPRING_COMPRESSION F B-337 PAINTED - Call your local BRP dealership

706203926

Unavailable

135a

RH Front Shock | Includes 135a to 135a6

706203353

$846.89

140a

Rear Shock | Includes 130a to 130a5

706003181

$729.97

140b

Spherical Bearing

715900337

$80.74

140c

Ball Joint

706004078

$45.12

140d

O-Ring Bushing

715900338

$10.98

140e

Circlip

715900480

$11.06

140f

Reducer

715900481

$27.66

140h

Orange Crush, Rear Compression Spring

706003741

$115.35

192

Flange Screw M12 X 60

250000857

$6.08

1910

Elastic Flange Nut M12

233221466

$2.15
