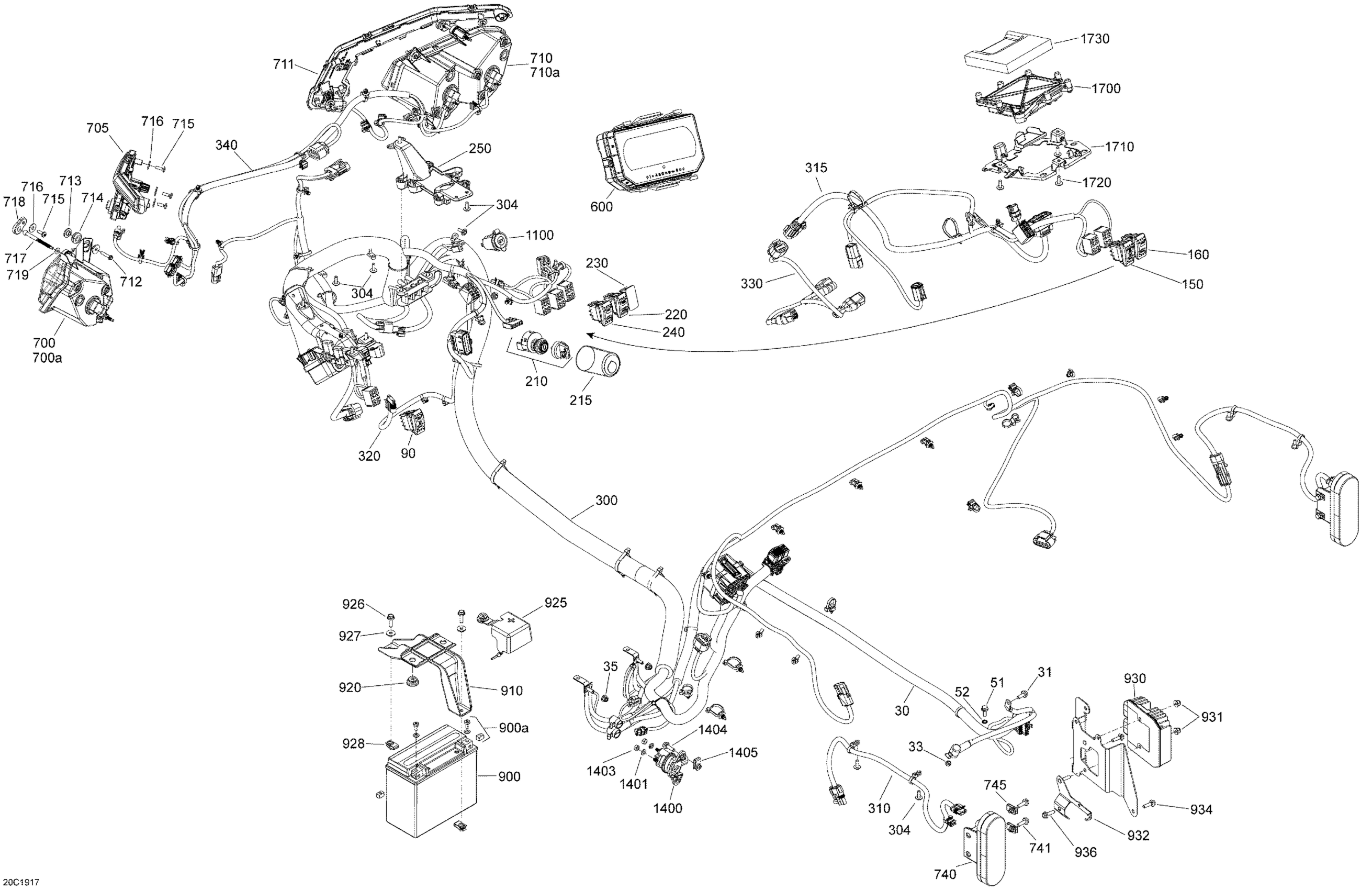

Can-Am Maverick Sport 1000R - XRC - 2019 Electrical Diagram

Starter Wiring Harness

710006244

$96.89

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

External Serrated Lock Washer 6 mm

234461608

$0.92

Light Switch

710004492

$46.12

Differential Switch

710006040

$32.28

Differencial Mode Switch

710005903

$32.28

Diffrrential Mode Switch

710005925

$23.05

Inter Allumage *Ignition

710007870

$55.35

Key Switch Protector

710005739

$2.69

Driving Mode Switch

710005909

$36.89

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Cluster Navigator Switch

710006183

$36.89

Housing Support

710005672

$8.05

Main Wiring Harness

710006250

$876.89

Screw PT Type K-50 X 16

250000959

$1.74

Rear Harness

710006551

$41.51

Wiring Harness Differential

710006087

$203.05

Trottle Pedal Harness

710005929

$226.12

Front Differential Wiring Harness

710006807

$46.12

Front Wiring Harness

710006257

$101.51

Speedometer

710006723

$341.51

LH Headlamp | Includes 700 TO 700a

710006422

$189.20

Bulb 12V 55W

715900141

$41.51

LH Signature Beam

710004994

$161.51

RH Headlamp

710006423

$189.20

Bulb 12V 55W

715900141

$41.51

RH Signature Beam

710004995

$161.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Torx Screw K50 X 16

250000720

$1.39

Stainless Steel Flat Washer

234062670

$1.74

Ajustment Screw

710005837

$6.45

Adjustment Guide

710005097

$8.45

O-Ring

293300192

$3.85

Tail Light

710004257

$92.28

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Fixation Plate

710005673

$10.15

Stopper Rubber

705014429

$6.09

Battery Cable Cap

710005930

$8.46

Hex. Flange Screw M6 X 20

207662054

$0.83

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Voltage Regulator

710005842

$159.87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Voltage Regulator Attach

710006402

$8.05

Voltage Regulator Support

710006656

$11.15

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

12V Power Outlet

710005374

$27.27

Starter Relay

278003012

$35.07

Lock Washer Helical M6

234161601

$0.92

Hex. Nut M6

232061600

$0.91

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Front Drive Module

710006479

$447.66

FDM Support

710006104

$7.60

Screw PT Type K-50 X 16

250000959

$1.74

Protector Foam

710006580

$15.22
