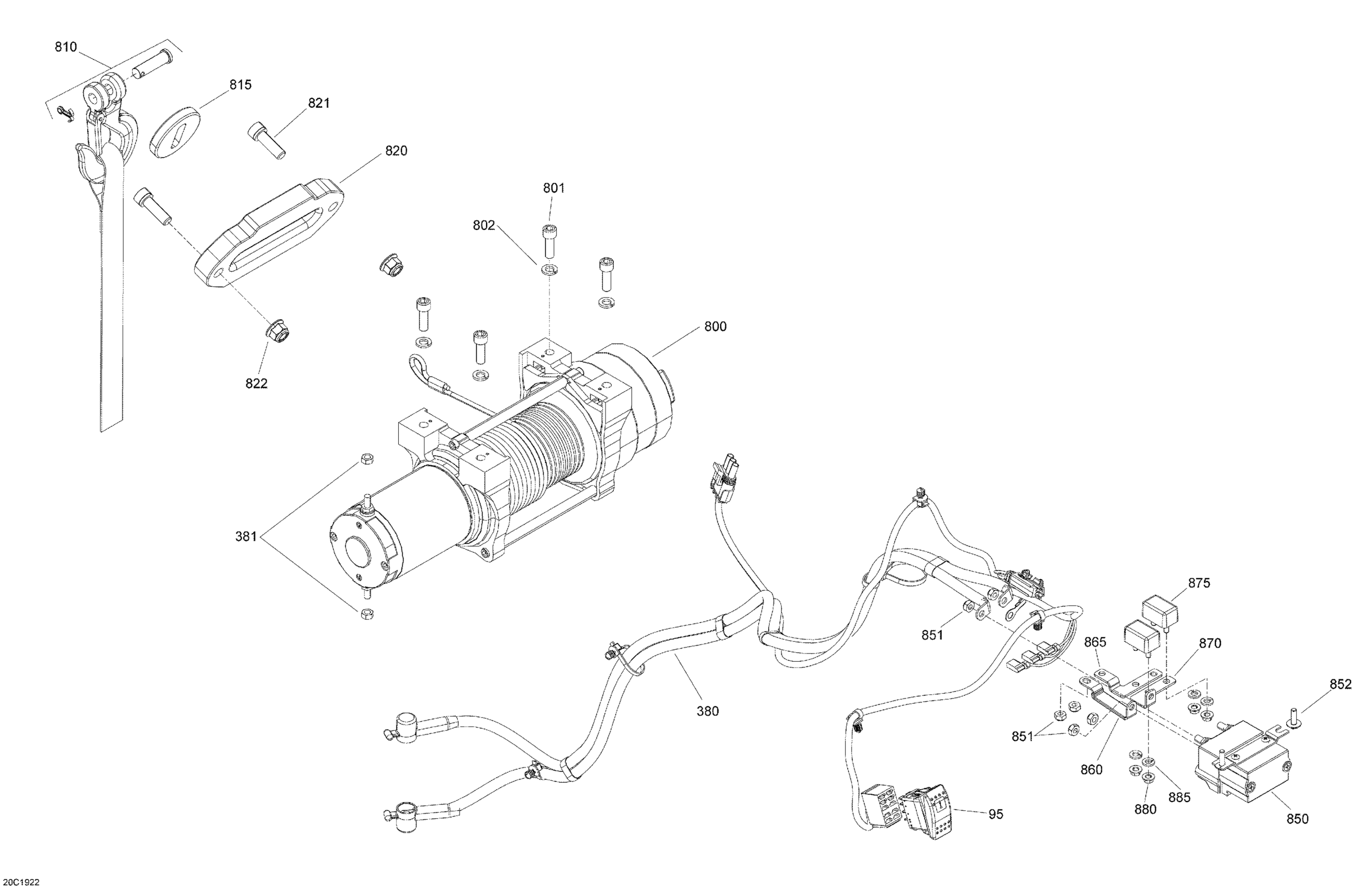

Can-Am Maverick Sport 1000R - XRC - 2019 Electrical Winch Diagram

Description

Price

Switch Winch

710002052

$28.18

380

Winch Cables

710005364

$101.46

381

Elastic Stop Nut M6

232561434

$1.78

800

Electric Winch

710006990

$711.16

801

Socket Head Screw M8 X 25

205082544

$1.06

802

Lock Washer 8 mm

234181401

$0.87

810

Winch Hook Kit

705014949

$23.10

815

Stopper

710007028

$9.88

820

Winch Rope Guide Kit

715006426

$56.69

821

Socket Screw M10 x 30 | XT

205003044

$3.00

822

Hex. Flange Elastic Nut M10

233201414

$1.45

850

Solenoid

710006991

$57.43

851

Elastic Stop Nut M6, Brass

232561200

$4.03

852

Screw PT Type K-50 X 16

250000959

$2.00

860

Power Bar

710004772

$10.97

865

Power Bar

710004872

$10.97

870

Power Bar

710004873

$10.97

875

Circuit Breaker 50 Amp

710007039

$17.88

880

Hex. Flange Nut M5

250100071

$2.03

885

Lock Washer Helical M6

234161601

$1.06
