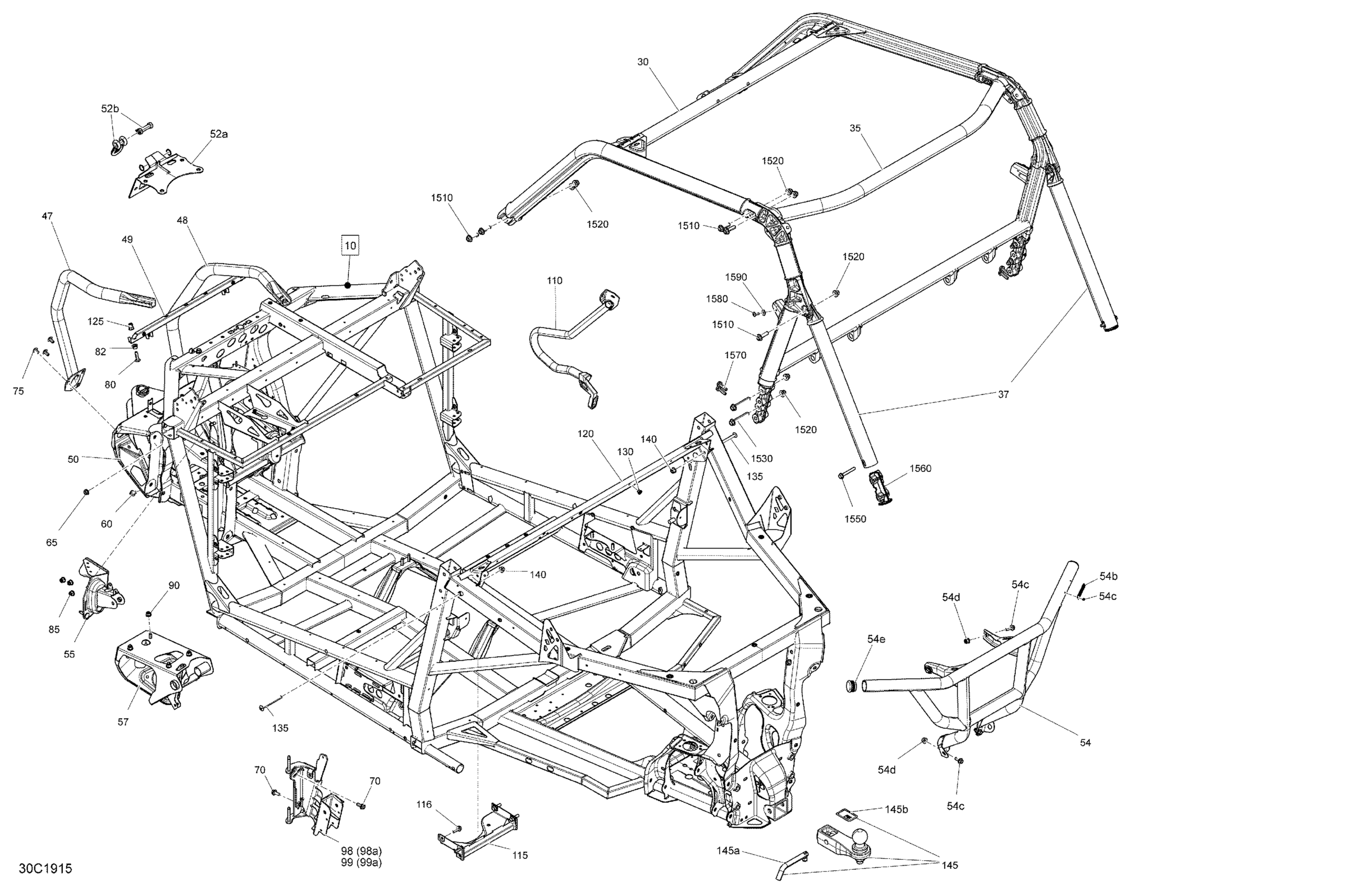

Can-Am Maverick Sport 1000R - XRC - 2019 Frame - Packages XMR & XRC Diagram

#

Description
Price

10

Frame Kit

715008534

$2,969.99

30

Deep Black, Front Cage Kit

715009358

$609.99

35

Deep Black, Rear Cage Kit

715009370

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

47

LH Front Bumper

705206303

$110.74

48

RH Front Bumper

705206308

$110.74

49

Cross Member

705206313

$36.89

50

Deep Black, Front Bumper

705209043

$474.58

52a>52b

Front Anchorage Ass'y

705211909

Unavailable

52b

Not Available As Spare Part - Friction Washer

Unavailable

54

Black, Rear Bumper Kit | Package XRC

715003683

$344.58

54a

Can Am Logo

704902307

Unavailable

54b

Pop Rivet 1/8", Black

293150189

$0.25

54c

Shoulder Screw HEX. M8 X 25

229000147

$7.37

54d

Hex. Elastic Flange Nut M8

229000122

$1.37

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$3.05

82

Bushing

705207229

$11.54

85

Hex. Flange Elastic Nut M8

233281414

$1.14

90

Hex. Flange Elastic Nut M8

233281414

$1.14

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$444.58

98a

LH Pivot Support

705207667

Unavailable

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$444.58

99a

RH Pivot Support

705207668

Unavailable

110

RH Protector Tube

705206752

$46.12

110

RH Protector Tube (Sandtex Black)

705207629

$69.20

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut M8

233181414

$0.91

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$156.89

145a

Hitch Pin

705204490

$54.58

145b

Hitch Approval Decal

704906897

$16.89

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$9.29

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

1580

Torx Head Screw M6 X 16

250000717

$1.74

1590

Stainless Steel Flat Washer

234062670

$1.74
