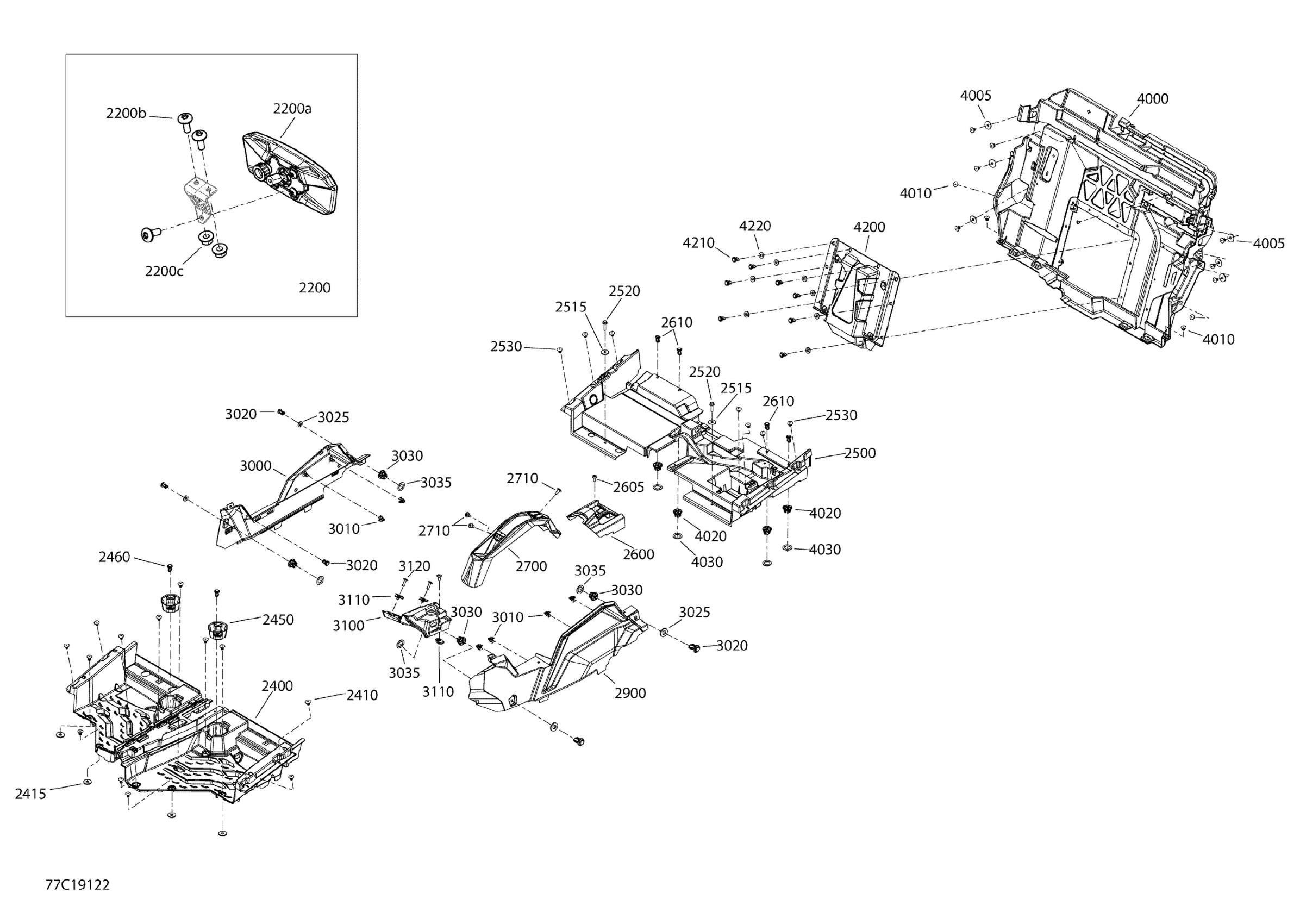

Can-Am Maverick Sport 1000R - XRC - 2019 Cab Interior Maverick Sport - Rear Section Diagram

Description

Price

2200

Center Mirror Kit | Except Package XMR

715004924

$106.49

2200a

Central Mirror

707900502

$56.99

2200b

Torx Truss Screw M6 X 16

250000721

$1.69

2200c

Hex. Elastic Flange Nut M6

233161464

$1.01

2400

Front Floor

707900533

$194.99

2410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2415

Washer M5

250200025

$0.74

2450

Cup Holder

707900532

$10.49

2460

Tuflok Plastic Rivet

293150230

$1.47

2500

Rear Floor

707900534

$83.99

2515

Flat Washer M6.6 X 22

250200162

$2.32

2520

Hex. Flange Screw M6 X 25

207662554

$1.48

2530

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2600

Belt Cover

707900538

$31.99

2605

Torx Truss Screw M6 X 16

250000721

$1.69

2610

Tuflok Plastic Rivet

293150230

$1.47

2700

Central Console

707900537

$26.99

2710

Torx Truss Screw M6 X 16

250000721

$1.69

2900

LH Lateral Console Panel

715005013

$119.99

3000

RH Lateral Console Panel

707901077

$69.99

3010

Clip

517306478

$1.09

3020

Tuflok Plastic Rivet

293150230

$1.47

3025

Washer

503192494

$3.17

3030

Insert

707900133

$2.89

3035

Washer

503189273

$3.28

3100

Passenger Footrest

707900545

$42.99

3110

Panel Nut M6 X 1.0

250100198

$2.11

3120

Torx Screw M6 X 20

250000722

$1.68

4000

Rear Bulkhead

707900550

$144.99

4005

Flat Washer M6 X 25

250200044

$2.69

4010

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4020

Insert

707900133

$2.89

4030

Washer

503189273

$3.28

4200

Maintenance Cover

707900999

$39.99

4210

Tuflok Plastic Rivet

293150230

$1.47

4220

Washer

503192494

$3.17

5000

Panel Nut M5 X 0.8

250000958

$4.23

5010

Torx Screw M5 X 20

250000724

$1.69
